. Adaptive
programming can done either the standard
control panel DriveAP, user-friendly tool.
Adaptive programming
In addition parameters, industrial drives have
the possibility for function block programming as
standard.
The ACS800 standard control program provides
solutions virtually all drives applications.Standard control programs
Pre-programmed protection functions
A wide range features provides protection for the
drive, motor and the process.
■ FACTORY SETTINGS for basic industrial applications
■ HAND/AUTO CONTROL for local and remote
operation
■ PID CONTROL for closed loop processes
■ SEQUENTIAL CONTROL for repetitive cycles
■ TORQUE CONTROL for processes here torque
control required
■ USER MACRO for user’s own parameter
settings

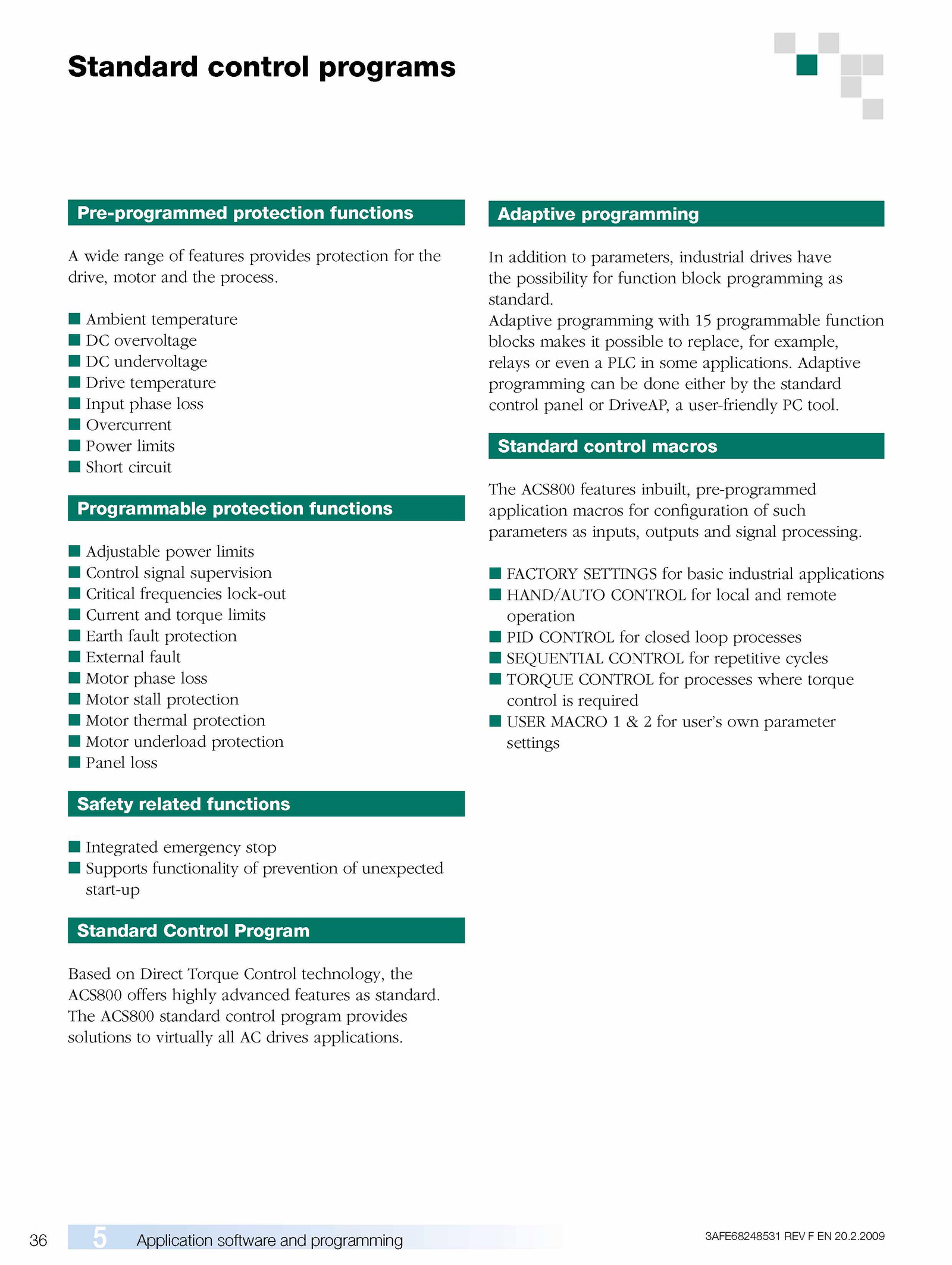

36 Application software and programming 3AFE68248531 REV 20.
Adaptive programming with programmable function
blocks makes possible replace, for example,
relays even PLC som applications.2.
Standard control macros
The ACS800 features inbuilt, pre-programmed
application macros for configuration such
parameters inputs, outputs and signal processing.
■ Ambient temperature
■ overvoltage
■ undervoltage
■ Drive temperature
■ Input phase loss
■ Overcurrent
■ Power limits
■ Short circuit
Programmable protection functions
■ Adjustable power limits
■ Control signal supervision
■ Critical frequencies lock-out
■ Current and torque limits
■ Earth fault protection
■ External fault
■ Motor phase loss
■ Motor stall protection
■ Motor thermal protection
■ Motor underload protection
■ Panel loss
Safety related functions
■ Integrated ergency stop
■ Supports functionality prevention unexpected
start-up
Standard Control Program
Based Direct Torque Control technology, the
ACS800 offers highly advanced features standard
