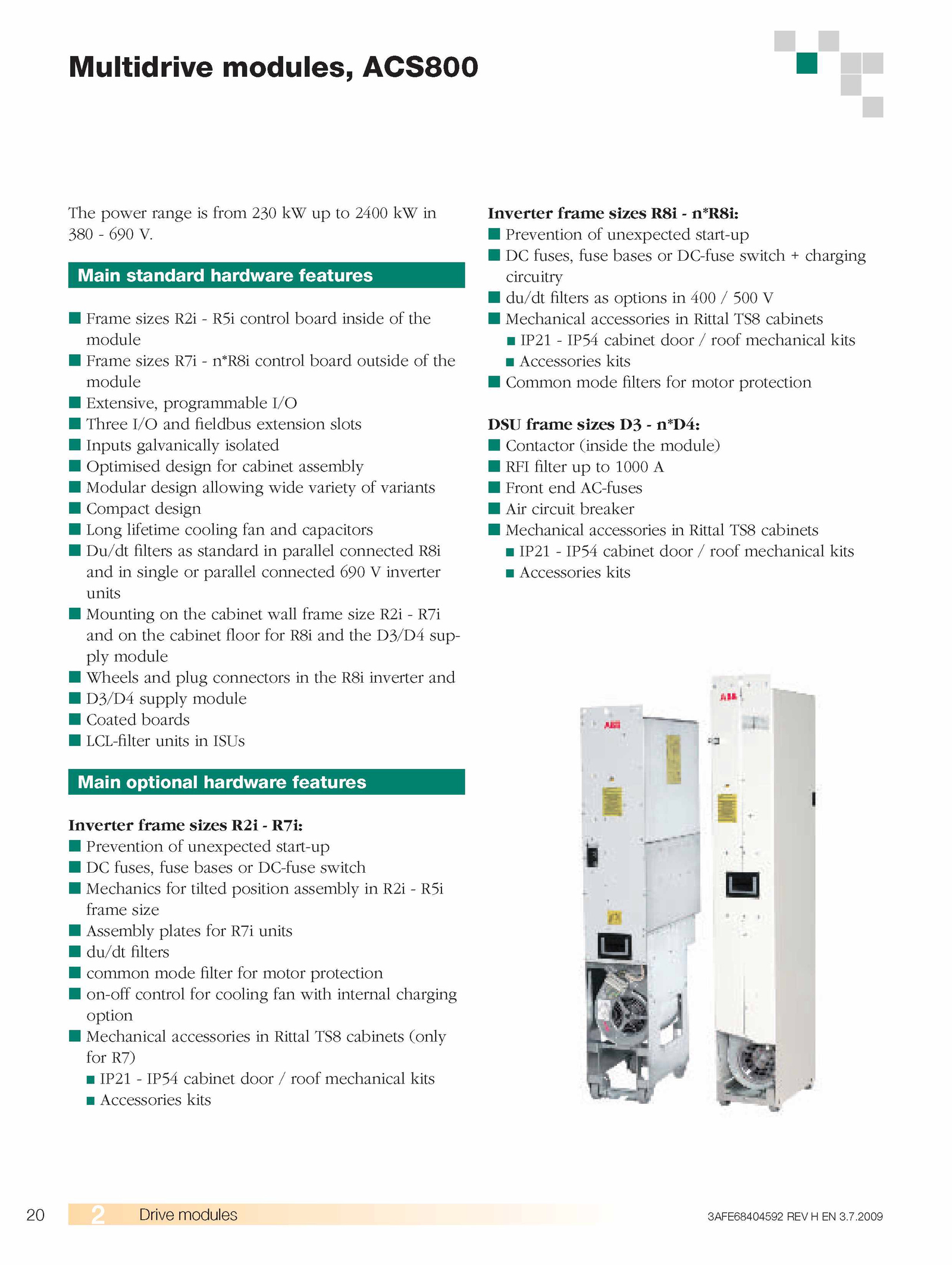

Multidrive modules, ACS800 The power range from 230 2400 in 380 690 V.7.2009 . Main standard hardware features ■ Frame sizes R2i R5i control board inside the module ■ Frame sizes R7i n*R8i control board outside the module ■ Extensive, programmable I/O ■ Three I/O and fieldbus extension slots ■ Inputs galvanically isolated ■ Optimised design for cabinet assembly ■ Modular design allowing wide variety variants ■ Compact design ■ Long lifetime cooling fan and capacitors ■ Du/dt filters standard parallel connected R8i and single parallel connected 690 inverter units ■ Mounting the cabinet wall frame size R2i R7i and the cabinet floor for R8i and the D3/D4 sup­ ply module ■ heels and plug connectors the R8i inverter and ■ D3/D4 supply module ■ Coated boards ■ LCL-filter units ISUs Main optional hardware features Inverter frame sizes R2i R7i: ■ Prevention unexpected start-up ■ fuses, fuse bases DC-fuse switch ■ echanics for tilted position assembly R2i R5i frame size ■ Assembly plates for R7i units ■ du/dt filters ■ com ode filter for motor protection ■ on-off control for cooling fan with internal charging option ■ echanical accessories Rittal TS8 cabinets (only for R7) ■ IP21 IP54 cabinet door roof echanical kits ■ Accessories kits Inverter frame sizes R8i n*R8i: ■ Prevention unexpected start-up ■ fuses, fuse bases DC-fuse switch charging circuitry ■ du/dt filters options 400 500 V ■ echanical accessories Rittal TS8 cabinets ■ IP21 IP54 cabinet door roof mechanical kits ■ Accessories kits ■ Common ode filters for motor protection DSU frame sizes n*D4: ■ Contactor (inside the module) ■ RFI filter 1000 A ■ Front end AC-fuses ■ Air circuit breaker ■ Mechanical accessories Rittal TS8 cabinets ■ IP21 IP54 cabinet door roof echanical kits ■ Accessories kits I J IS El 20 Drive modules FE68404592 REV 3
