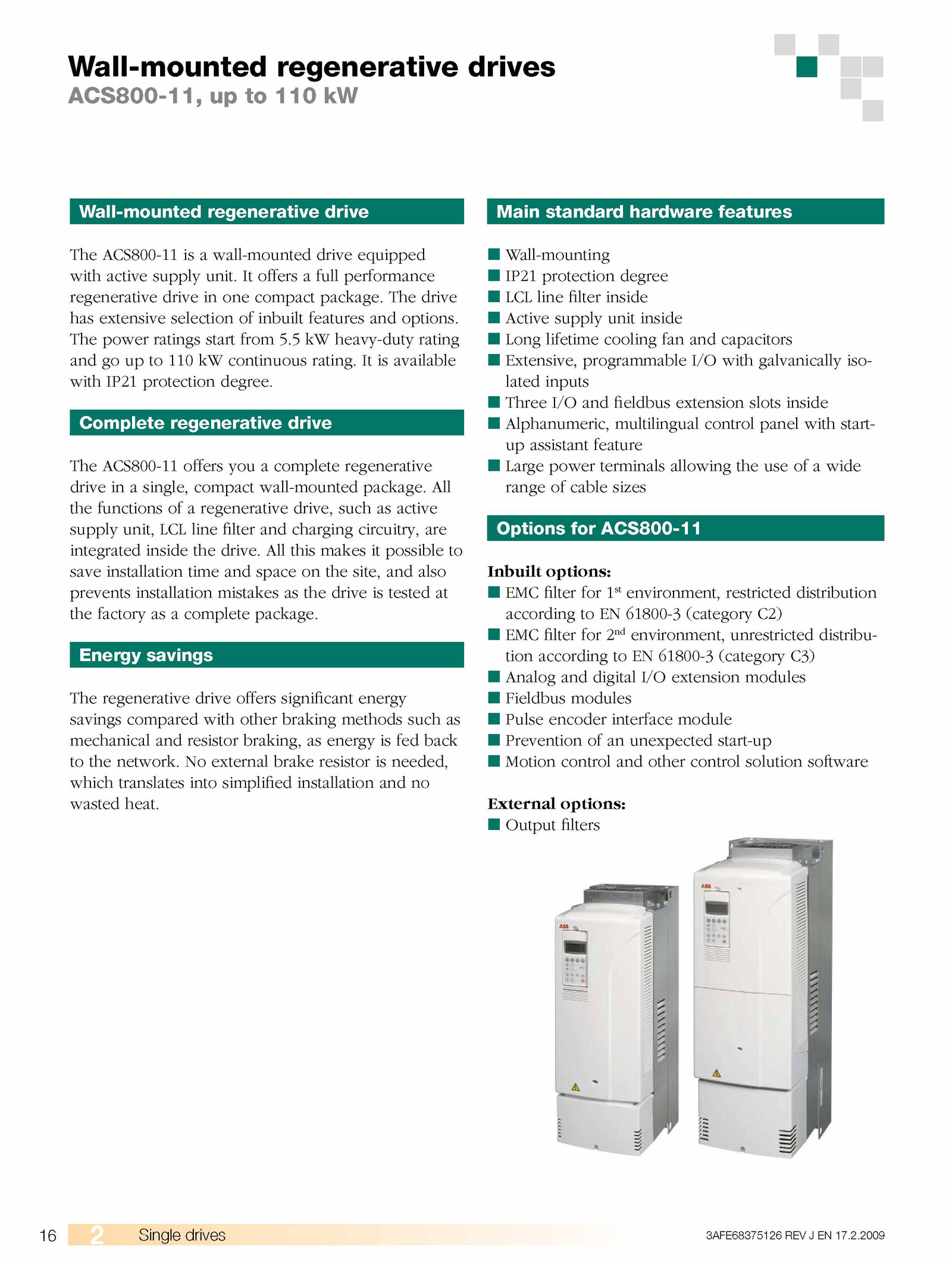

external brake resistor needed, w hich translates into simplified installation and no wasted heat. The drive has extensive selection inbuilt features and options. All the functions regenerative drive, such active supply unit, LCL line filter and charging circuitry, are integrated inside the drive.2.Wall-mounted regenerative drives ACS800-11, 110 kW Wall-mounted regenerative drive The ACS800-11 wall-mounted drive equipped with active supply unit. offers full perform ance regenerative drive one com pact package. All this makes possible to save installation time and space the site, and also prevents installation mistakes the drive tested at the factory com plete package. The pow ratings start from 5. Main standard hardware features ■ Wall-mounting ■ IP21 protection degree ■ LCL line filter inside ■ Active supply unit inside ■ Long lifetime cooling fan and capacitors ■ Extensive, programmable I/O with galvanically iso­ lated inputs ■ Three I/O and fieldbus extension slots inside ■ Alphanumeric, multilingual control panel with start­ up assistant feature ■ Large pow terminals allowing the use wide range cable sizes Options for ACS800-11 Inbuilt options: ■ EMC filter for 1st environment, restricted distribution according 61800-3 (category C2) ■ EMC filter for 2nd environment, unrestricted distribu­ tion according 61800-3 (category C3) ■ Analog and digital I/O extension modules ■ Fieldbus modules ■ Pulse encoder interface module ■ Prevention unexpected start-up ■ Motion control and other control solution software External options: ■ Output filters 16 Single drives 68375126 REV 17. available with IP21 protection degree.2009 . Energy savings The regenerative drive offers significant energy savings com pared with other braking methods such as m echanical and resistor braking, energy fed back to the network. Complete regenerative drive The ACS800-11 offers you com plete regenerative drive single, com pact wall-mounted package.5 heavy-duty rating and 110 continuous rating
