Page 87
Commissioning
10. Please note that the service
screen displays only data that were supplied the connected selected regulator.6 Checking the binary inputs and outputs and the analogue in-
puts
The conditions the binary inputs and outputs are tested the service screen WinEDC.
This screen the right-most index card the WinEDC interface.

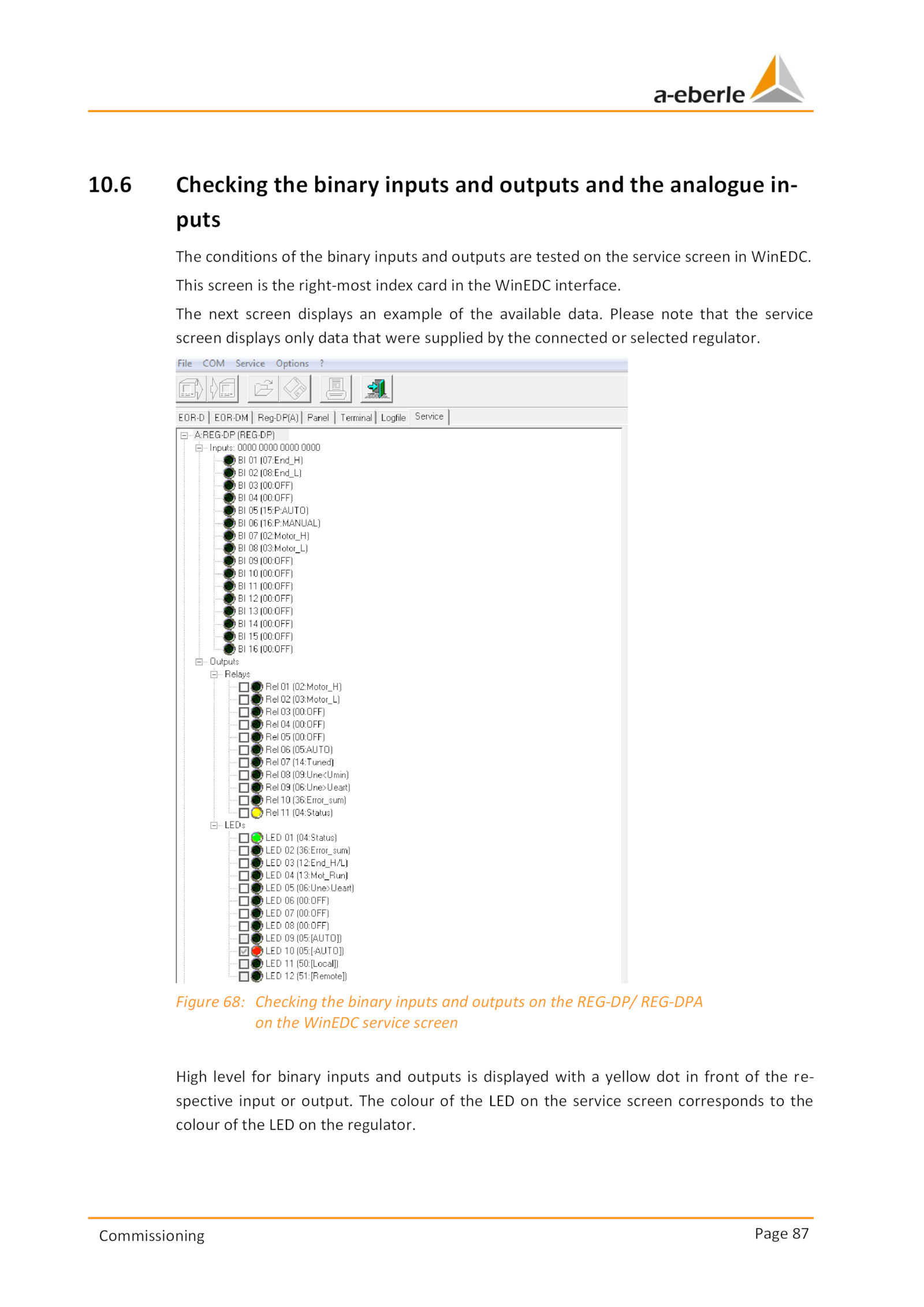

Figure 68: Checking the binary inputs and outputs the REG-DP/ REG-DPA
on the WinEDC service screen
High level for binary inputs and outputs displayed with yellow dot front the re-
spective input output.
The next screen displays example the available data.
. The colour the LED the service screen corresponds the
colour the LED the regulator
