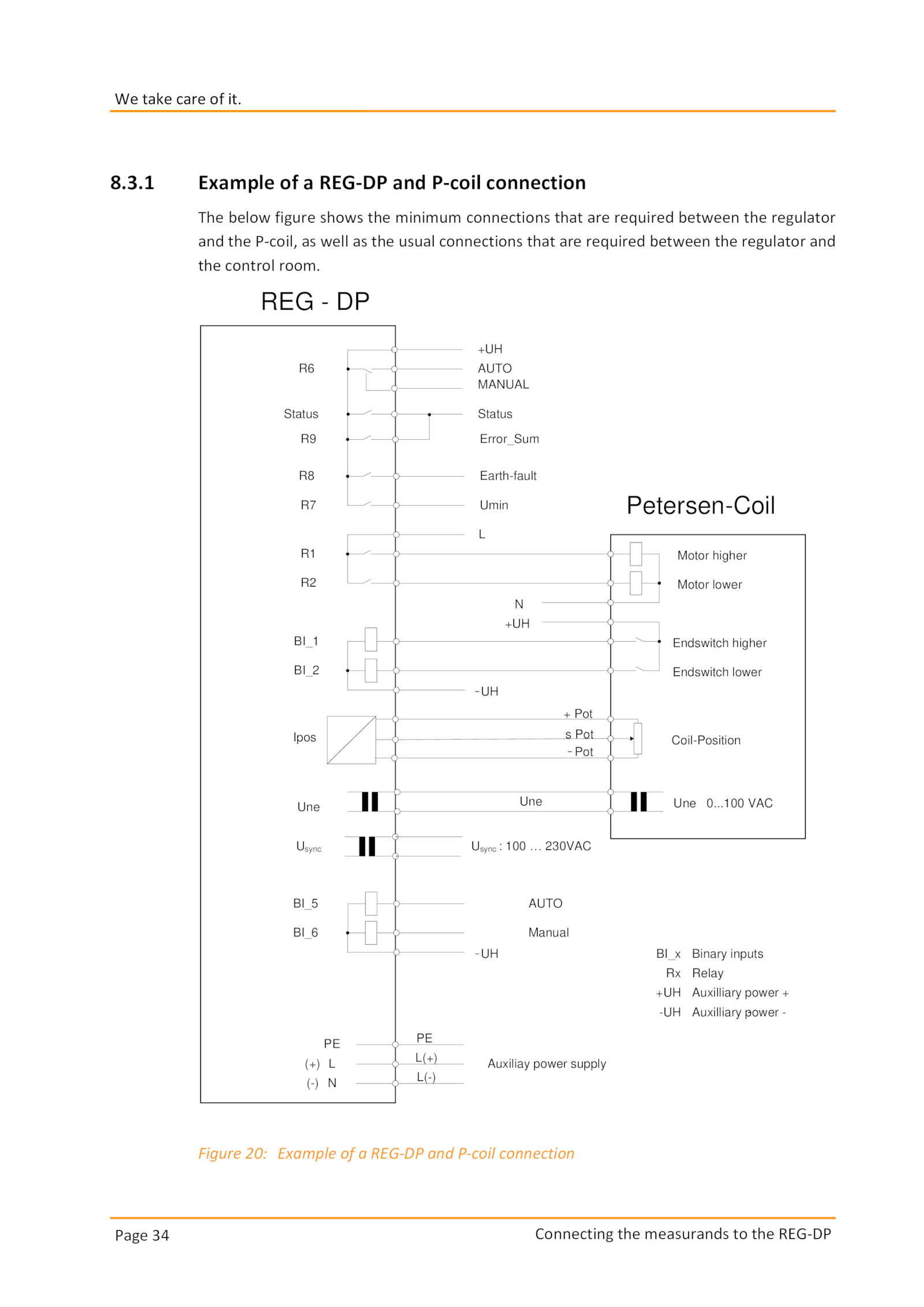

Figure 20: Example REG-DP and P-coil connection
.
REG DP
Auxiliay power supply
L
N
Motor higher
Motor lower
+UH
Endswitch higher
Endswitch lower
Coil-Position
Une 0..1 Example REG-DP and P-coil connection
The below figure shows the minimum connections that are required between the regulator
and the P-coil, well the usual connections that are required between the regulator and
the control room.
