Operating Instructions for the Petersen-Coil Regulator

Vydal: EBERLE Controls GmbH

Strana 232 z 272

Jak získat tento dokument?






Poznámky redaktora

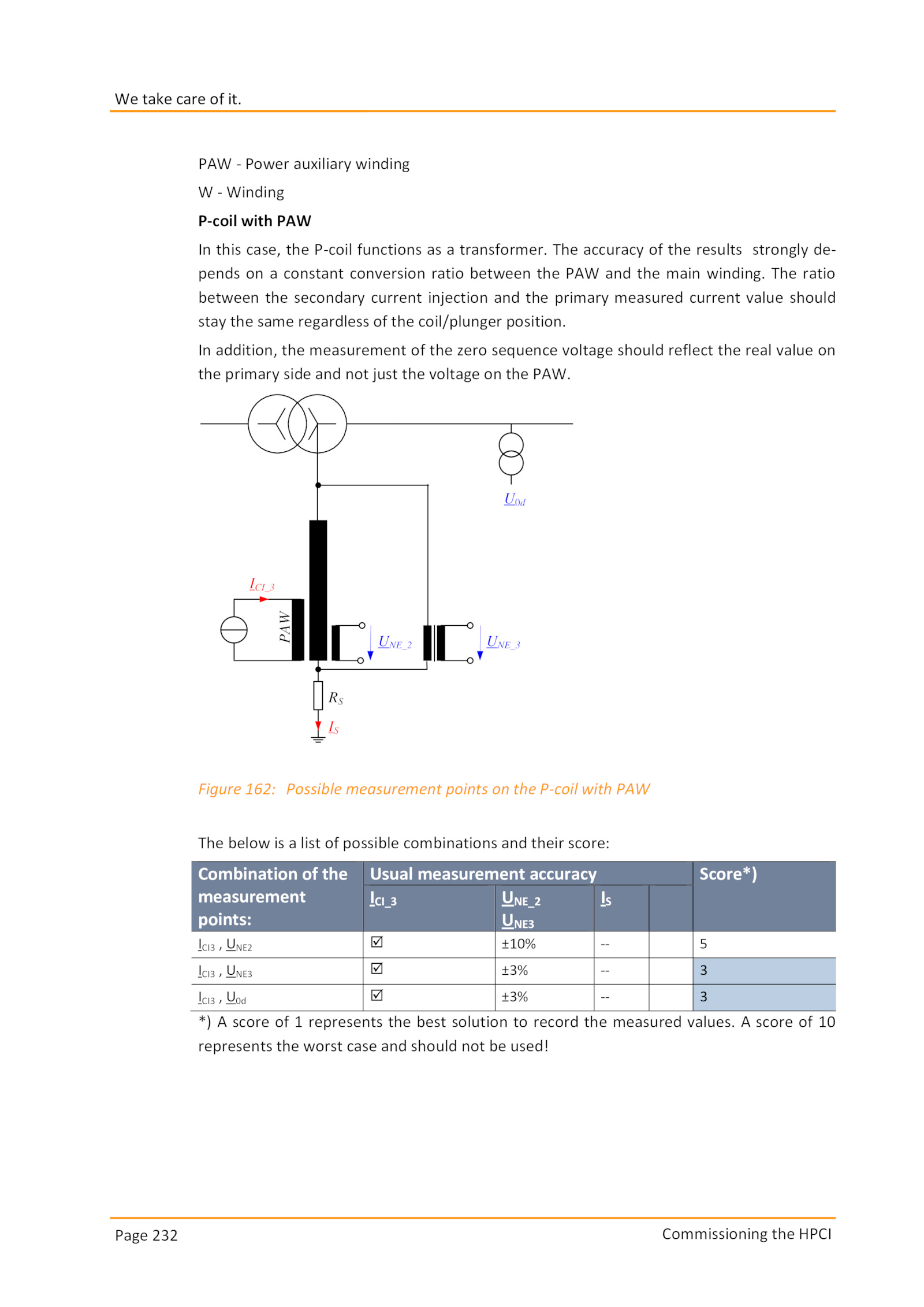

The ratio between the secondary current injection and the primary measured current value should stay the same regardless the coil/plunger position. In addition, the measurement the zero sequence voltage should reflect the real value on the primary side and not just the voltage the PAW. score 10 represents the worst case and should not used! . RS UNE_3 U0d IS ICI_3 UNE_2 PAW Figure 162: Possible measurement points the P-coil with PAW The below list possible combinations and their score: Combination the measurement points: Usual measurement accuracy Score*) ICI_3 UNE_2 UNE3 IS ICI3 UNE2 ±10% 5 ICI3 UNE3 ±3% 3 ICI3 U0d ±3% 3 *) score represents the best solution record the measured values. PAW Power auxiliary winding W Winding P-coil with PAW In this case, the P-coil functions transformer. The accuracy the results strongly de- pends constant conversion ratio between the PAW and the main winding.Page 232 Commissioning the HPCI We take care it
