Commissioning the HPCI

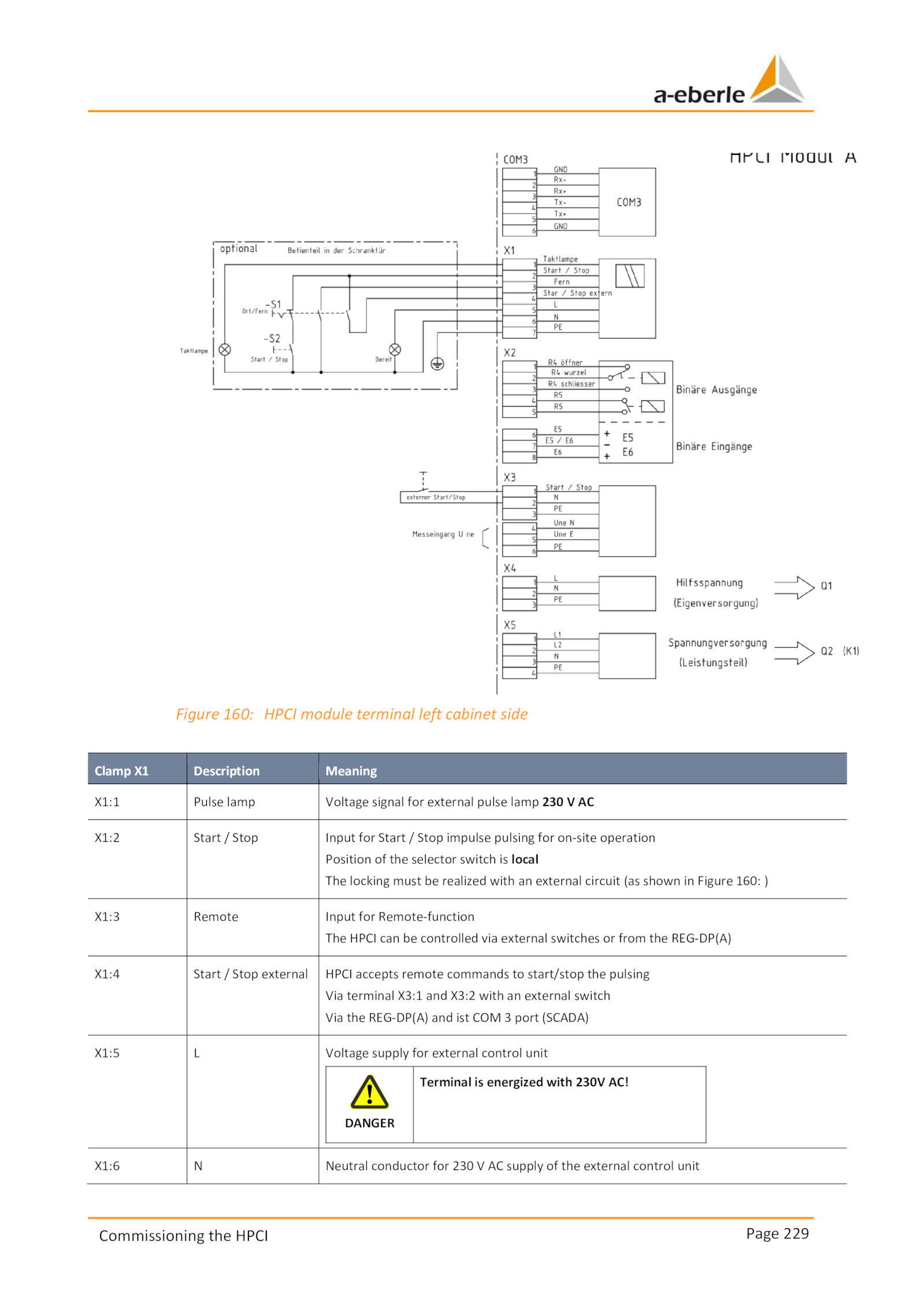

Figure 160: HPCI module terminal left cabinet side
Clamp Description Meaning
X1:1 Pulse lamp Voltage signal for external pulse lamp 230 AC
X1:2 Start Stop Input for Start Stop impulse pulsing for on-site operation
Position the selector switch local
The locking must realized with external circuit (as shown Figure 160: )
X1:3 Remote Input for Remote-function
The HPCI can controlled via external switches from the REG-DP(A)
X1:4 Start Stop external HPCI accepts remote commands start/stop the pulsing
Via terminal X3:1 and X3:2 with external switch
Via the REG-DP(A) and ist COM port (SCADA)
X1:5 Voltage supply for external control unit
DANGER
Terminal energized with 230V AC!
X1:6 Neutral conductor for 230 supply the external control unit
