Operating Instructions for the Petersen-Coil Regulator

Vydal: EBERLE Controls GmbH

Strana 195 z 272

Jak získat tento dokument?






Poznámky redaktora

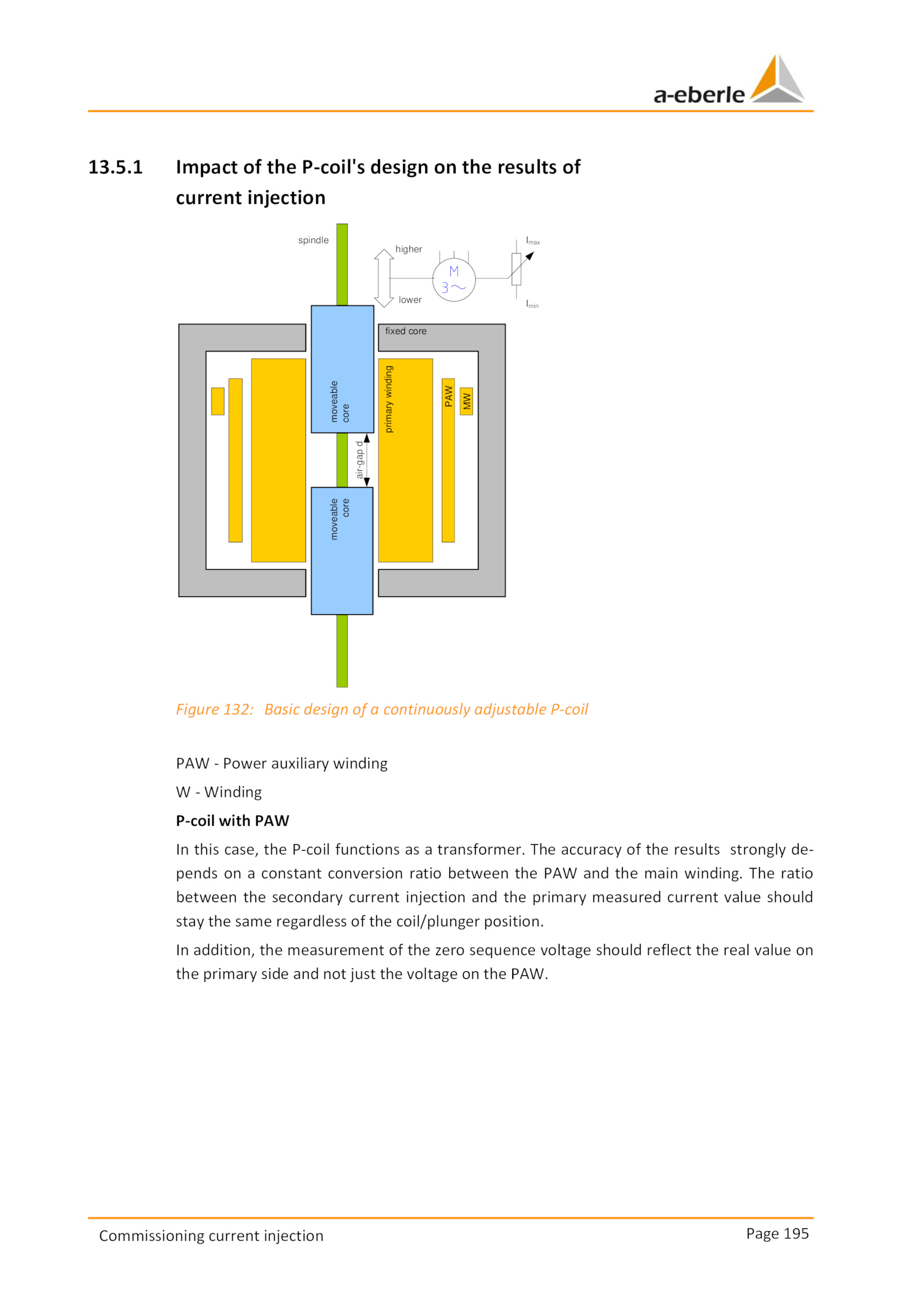

In addition, the measurement the zero sequence voltage should reflect the real value on the primary side and not just the voltage the PAW.Page 195 Commissioning current injection 13.1 Impact the P-coil's design the results of current injection air-gap d higher lower Imin Imax moveable core spindle moveable core fixed core primary winding PAW MW Figure 132: Basic design continuously adjustable P-coil PAW Power auxiliary winding W Winding P-coil with PAW In this case, the P-coil functions transformer. The ratio between the secondary current injection and the primary measured current value should stay the same regardless the coil/plunger position. . The accuracy the results strongly de- pends constant conversion ratio between the PAW and the main winding.5
