5.2 Simulation

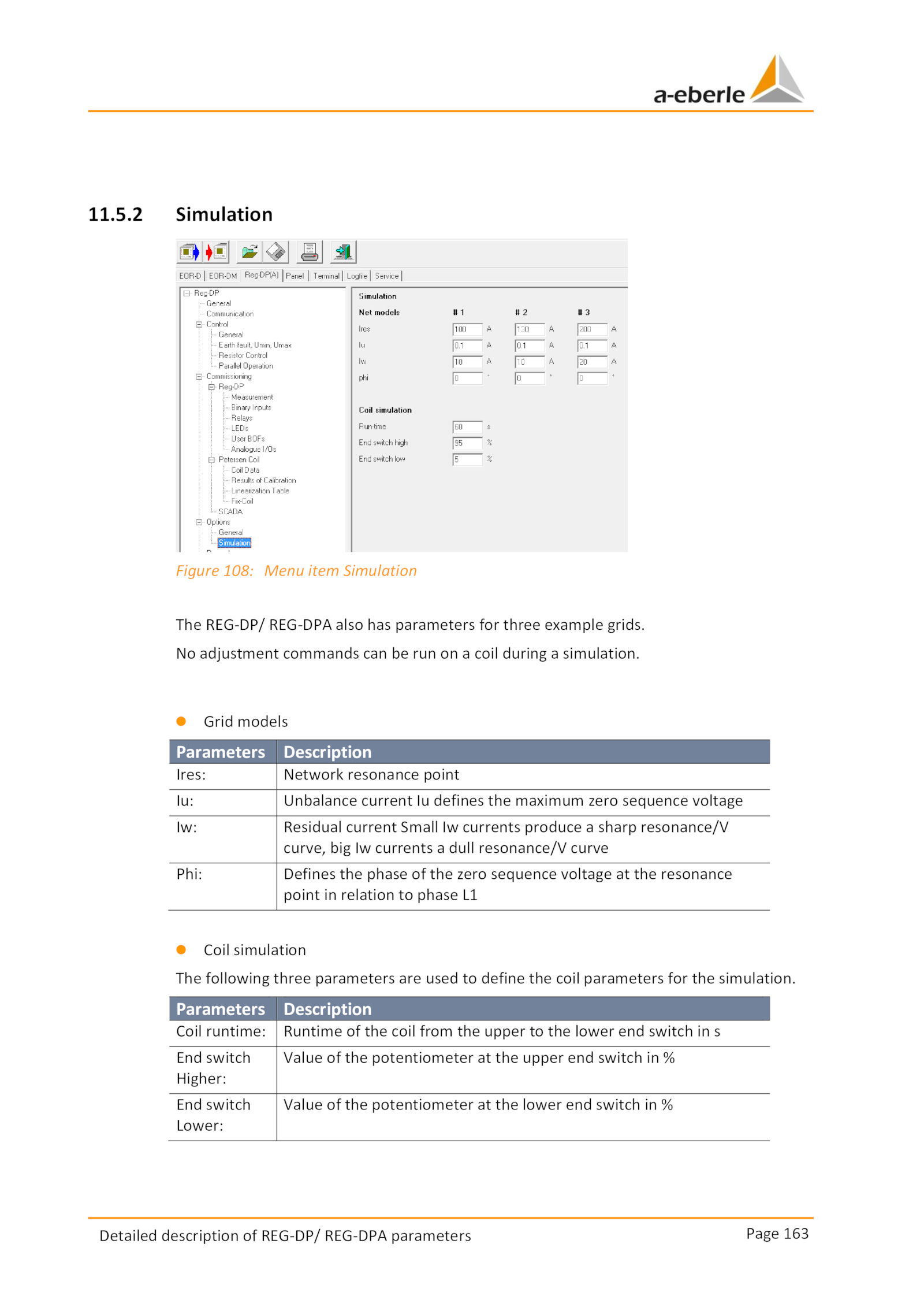

Figure 108: Menu item Simulation
The REG-DP/ REG-DPA also has parameters for three example grids.
No adjustment commands can run coil during simulation.Page 163
Detailed description REG-DP/ REG-DPA parameters
11.
0 Grid models
Parameters Description
Ires: Network resonance point
Iu: Unbalance current defines the maximum zero sequence voltage
Iw: Residual current Small currents produce sharp resonance/V
curve, big currents dull resonance/V curve
Phi: Defines the phase the zero sequence voltage the resonance
point relation phase L1
0 Coil simulation
The following three parameters are used define the coil parameters for the simulation.
Parameters Description
Coil runtime: Runtime the coil from the upper the lower end switch s
End switch
Higher:
Value the potentiometer the upper end switch %
End switch
Lower:
Value the potentiometer the lower end switch
