Operating Instructions for the Petersen-Coil Regulator

Vydal: EBERLE Controls GmbH

Strana 147 z 272

Jak získat tento dokument?






Poznámky redaktora

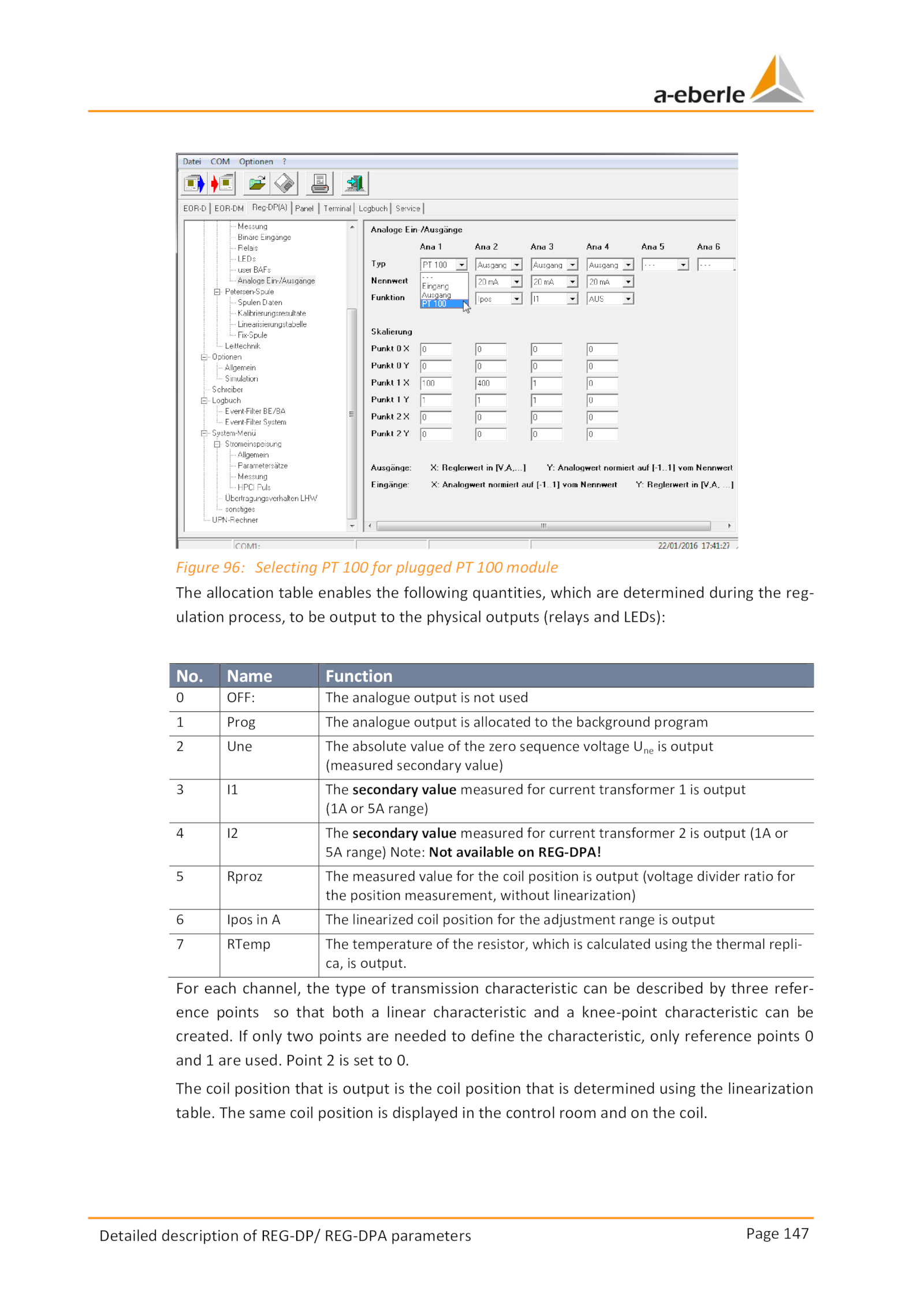

The same coil position displayed the control room and the coil. Point set 0. For each channel, the type transmission characteristic can described three refer- ence points that both linear characteristic and knee-point characteristic can be created. Name Function 0 OFF: The analogue output not used 1 Prog The analogue output allocated the background program 2 Une The absolute value the zero sequence voltage Une output (measured secondary value) 3 The secondary value measured for current transformer output (1A range) 4 The secondary value measured for current transformer output (1A or 5A range) Note: Not available REG-DPA! 5 Rproz The measured value for the coil position output (voltage divider ratio for the position measurement, without linearization) 6 Ipos The linearized coil position for the adjustment range output 7 RTemp The temperature the resistor, which calculated using the thermal repli- ca, output. The coil position that output the coil position that determined using the linearization table.Page 147 Detailed description REG-DP/ REG-DPA parameters Figure 96: Selecting 100 for plugged 100 module The allocation table enables the following quantities, which are determined during the reg- ulation process, output the physical outputs (relays and LEDs): No. . only two points are needed define the characteristic, only reference points 0 and are used
