The integrated dies below are intended for Cu-terminals, type KRT and KST,
together with conductors Class according IEC 60228.
Outer die holder V1318,
BC dies, inner die holder V1316.6:25
06

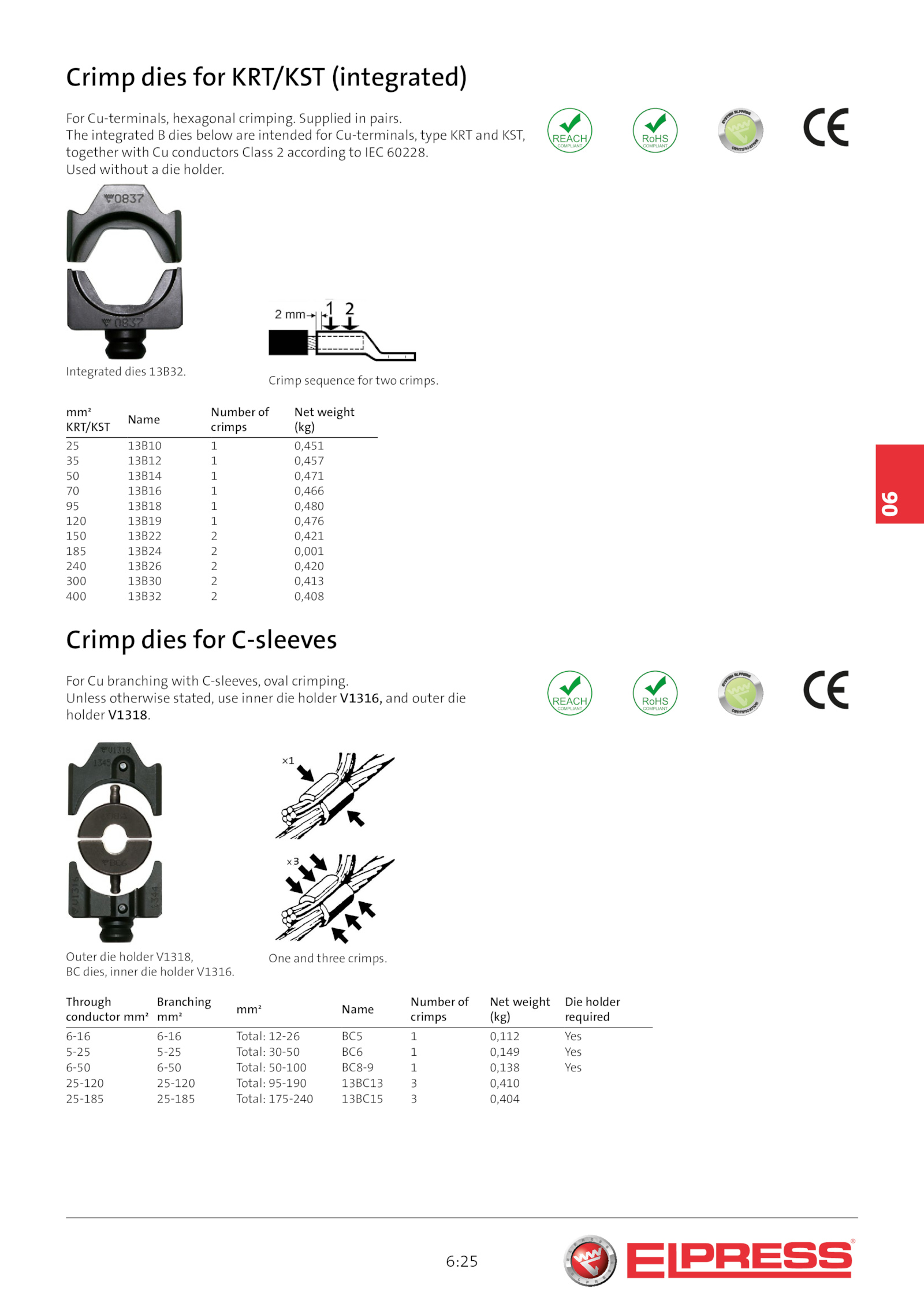

Crimp dies for KRT/KST (integrated)
For Cu-terminals, hexagonal crimping.
Used without die holder.
Integrated dies 13B32.
Crimp sequence for two crimps.
One and three crimps.
Through
conductor mm²
Branching
mm²
mm² Name
Number of
crimps
Net weight
(kg)
Die holder
required
6-16 6-16 Total: 12-26 BC5 0,112 Yes
5-25 5-25 Total: 30-50 BC6 0,149 Yes
6-50 6-50 Total: 50-100 BC8-9 0,138 Yes
25-120 25-120 Total: 95-190 13BC13 0,410
25-185 25-185 Total: 175-240 13BC15 0,404
. Supplied pairs.
mm²
KRT/KST
Name
Number of
crimps
Net weight
(kg)
25 13B10 0,451
35 13B12 0,457
50 13B14 0,471
70 13B16 0,466
95 13B18 0,480
120 13B19 0,476
150 13B22 0,421
185 13B24 0,001
240 13B26 0,420
300 13B30 0,413
400 13B32 0,408
Crimp dies for C-sleeves
For branching with C-sleeves, oval crimping.
Unless otherwise stated, use inner die holder V1316, and outer die
holder V1318
