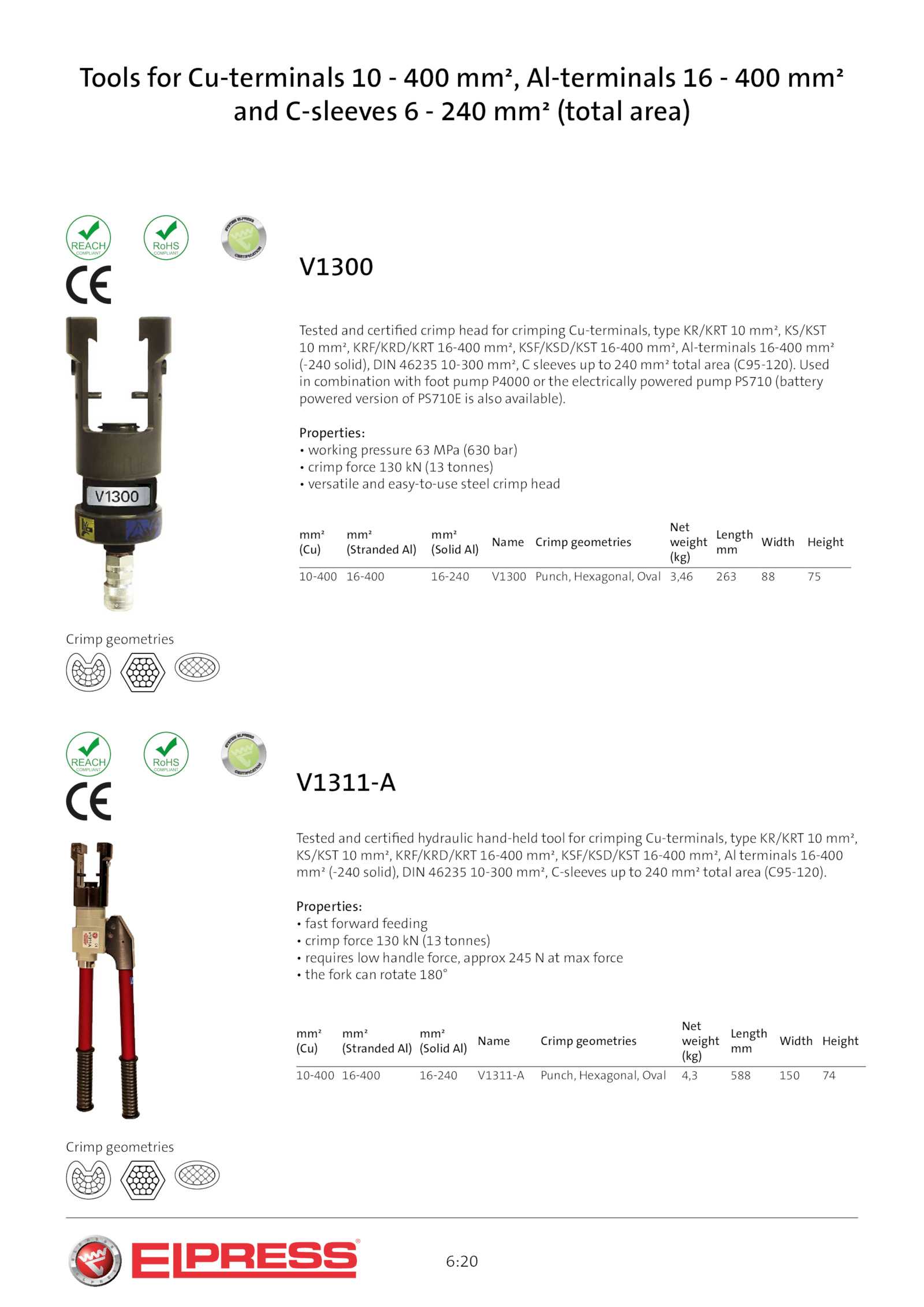

Tools for Cu-terminals 400 mm², Al-terminals 400 mm²
and C-sleeves 240 mm² (total area)
V1300
Crimp geometries
Tested and certified crimp head for crimping Cu-terminals, type KR/KRT mm², KS/KST
10 mm², KRF/KRD/KRT 16-400 mm², KSF/KSD/KST 16-400 mm², Al-terminals 16-400 mm²
(-240 solid), DIN 46235 10-300 mm², sleeves 240 mm² total area (C95-120). Used
in combination with foot pump P4000 the electrically powered pump PS710 (battery
powered version PS710E also available).
Properties:
• fast forward feeding
• crimp force 130 (13 tonnes)
• requires low handle force, approx 245 max force
• the fork can rotate 180°
mm²
(Cu)
mm²
(Stranded Al)
mm²
(Solid Al)
Name Crimp geometries
Net
weight
(kg)
Length
mm
Width Height
10-400 16-400 16-240 V1311-A Punch, Hexagonal, Oval 4,3 588 150 74
.
Properties:
• working pressure MPa (630 bar)
• crimp force 130 (13 tonnes)
• versatile and easy-to-use steel crimp head
mm²
(Cu)
mm²
(Stranded Al)
mm²
(Solid Al)
Name Crimp geometries
Net
weight
(kg)
Length
mm
Width Height
10-400 16-400 16-240 V1300 Punch, Hexagonal, Oval 3,46 263 75
V1311-A
Crimp geometries
Tested and certified hydraulic hand-held tool for crimping Cu-terminals, type KR/KRT mm²,
KS/KST mm², KRF/KRD/KRT 16-400 mm², KSF/KSD/KST 16-400 mm², terminals 16-400
mm² (-240 solid), DIN 46235 10-300 mm², C-sleeves 240 mm² total area (C95-120)
