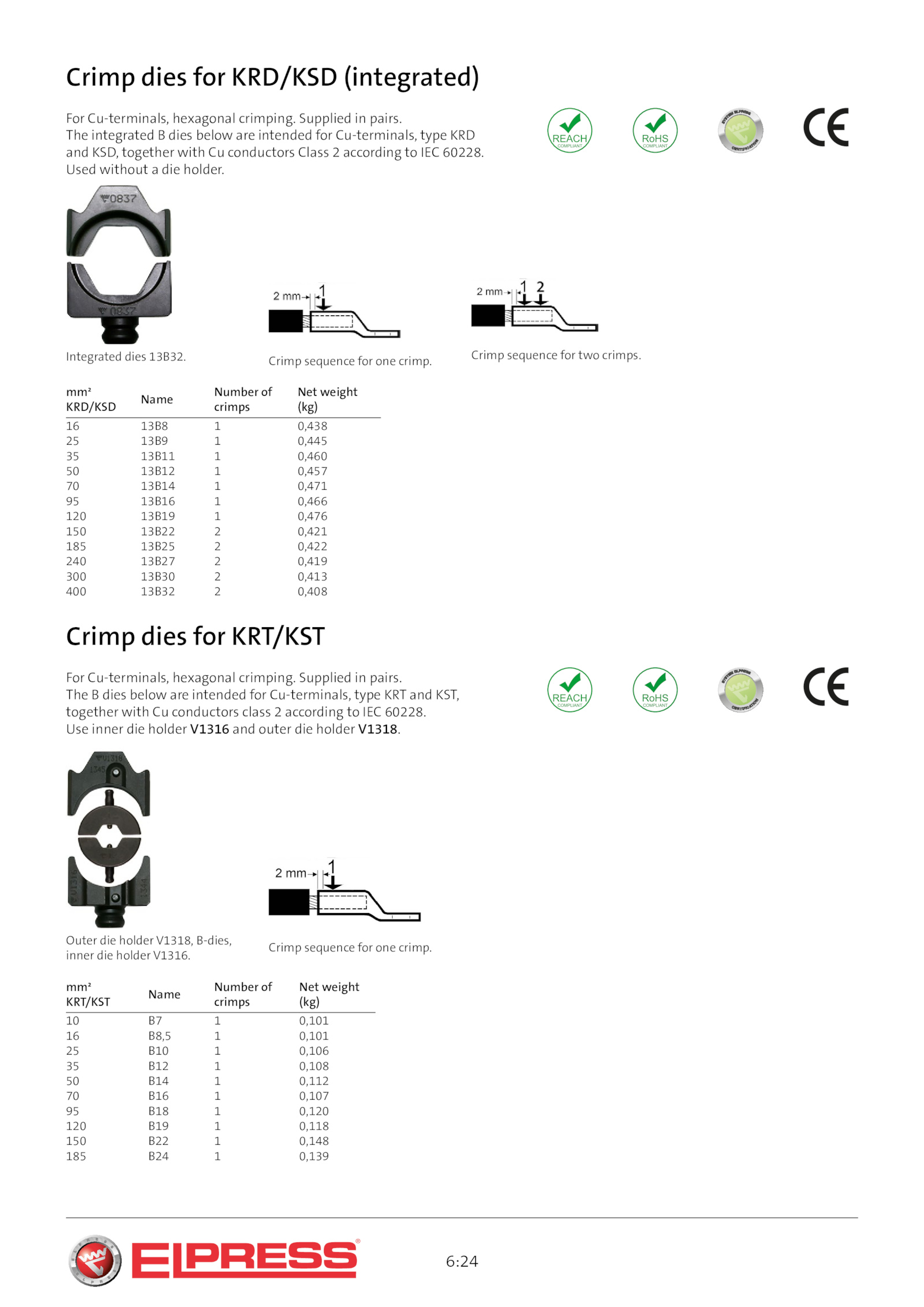

The integrated dies below are intended for Cu-terminals, type KRD
and KSD, together with conductors Class according IEC 60228.
Crimp sequence for one crimp.6:24
Crimp dies for KRD/KSD (integrated)
For Cu-terminals, hexagonal crimping. Supplied pairs.
Integrated dies 13B32.
Outer die holder V1318, B-dies,
inner die holder V1316.
The dies below are intended for Cu-terminals, type KRT and KST,
together with conductors class according IEC 60228. Crimp sequence for one crimp.
Use inner die holder V1316 and outer die holder V1318.
mm²
KRD/KSD
Name
Number of
crimps
Net weight
(kg)
16 13B8 0,438
25 13B9 0,445
35 13B11 0,460
50 13B12 0,457
70 13B14 0,471
95 13B16 0,466
120 13B19 0,476
150 13B22 0,421
185 13B25 0,422
240 13B27 0,419
300 13B30 0,413
400 13B32 0,408
Crimp dies for KRT/KST
For Cu-terminals, hexagonal crimping.
Used without die holder. Supplied pairs.
mm²
KRT/KST
Name
Number of
crimps
Net weight
(kg)
10 0,101
16 B8,5 0,101
25 B10 0,106
35 B12 0,108
50 B14 0,112
70 B16 0,107
95 B18 0,120
120 B19 0,118
150 B22 0,148
185 B24 0,139
. Crimp sequence for two crimps
