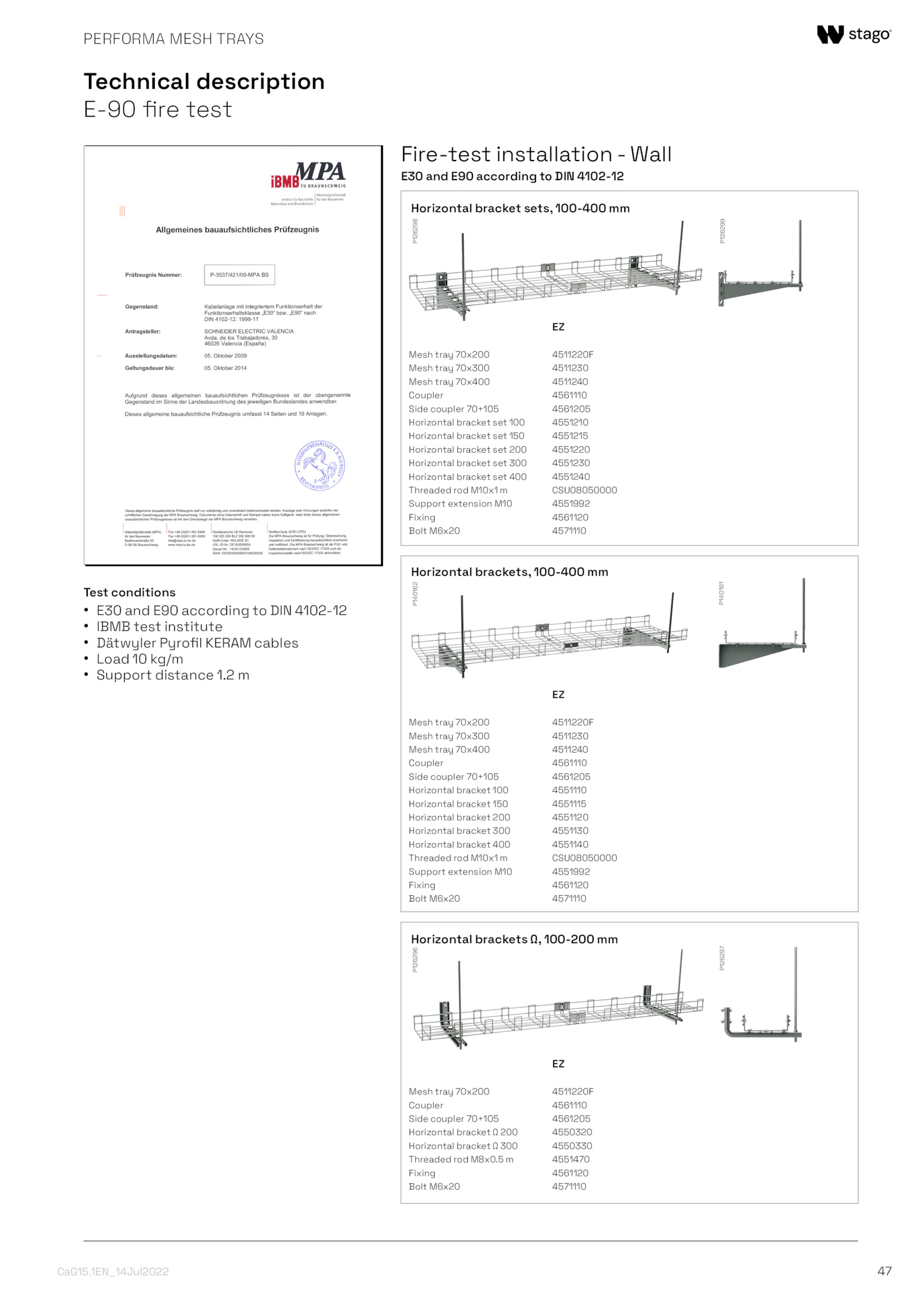

CaG15.5 4551470 Fixing 4561120 Bolt M6x20 4571110 P126296 P126297 P126298 P126299 P140162 P140161 .1EN_14Jul2022 47 PERFORMA MESH TRAYS Technical description E-90 fire test Fire-test installation Wall E30 and E90 according DIN 4102-12 Test conditions • E30 and E90 according DIN 4102-12 • IBMB test institute • Dätwyler Pyrofil KERAM cables • Load kg/m • Support distance 1.2 m Horizontal bracket sets, 100-400 mm Horizontal brackets 100-200 mm EZ Mesh tray 70x200 4511220F Mesh tray 70x300 4511230 Mesh tray 70x400 4511240 Coupler 4561110 Side coupler 70+105 4561205 Horizontal bracket set 100 4551210 Horizontal bracket set 150 4551215 Horizontal bracket set 200 4551220 Horizontal bracket set 300 4551230 Horizontal bracket set 400 4551240 Threaded rod M10x1 CSU08050000 Support extension M10 4551992 Fixing 4561120 Bolt M6x20 4571110 Horizontal brackets, 100-400 mm EZ Mesh tray 70x200 4511220F Mesh tray 70x300 4511230 Mesh tray 70x400 4511240 Coupler 4561110 Side coupler 70+105 4561205 Horizontal bracket 100 4551110 Horizontal bracket 150 4551115 Horizontal bracket 200 4551120 Horizontal bracket 300 4551130 Horizontal bracket 400 4551140 Threaded rod M10x1 CSU08050000 Support extension M10 4551992 Fixing 4561120 Bolt M6x20 4571110 EZ Mesh tray 70x200 4511220F Coupler 4561110 Side coupler 70+105 4561205 Horizontal bracket 200 4550320 Horizontal bracket 300 4550330 Threaded rod M8x0

---

---
