The mesh tray fixed pulling the wires
in the flaps, and then folding the flaps with tool fix the mesh tray.
Pendant bracket 100 HDG 87/50/160 8428031039899 4552910
Pendant bracket 150 HDG 87/50/210 8428031039905 4552915
Pendant bracket 200 HDG 87/50/260 8428031039912 4552920
Pendant bracket 300 HDG 94/50/360 8428031039929 4552930
Pendant bracket 400 HDG 100/50/460 8428031050276 4552940
Pendant bracket 500 HDG 110/50/560 8428031050290 4552950
Pendant bracket 600 HDG 110/50/660 8428031039943 4552960
Corner supports
P125022
P125021
External and internal corner supports for 90º corners. Screw-less.
Material: Steel, hot-dip galvanized.CaG15. From 100 600 width. Mesh tray fixed the bracket bolted fixings (4562120).
Wall-mounted bracket for 60x60
P112518
Clip-on bracket used horizontal wall bracket for 60x60 mesh trays.
Support for box Bracket HDG 20/72/92 8428031147662 CSU4572120
U-profiles
P112529
U-profile. No.1EN_14Jul2022 31

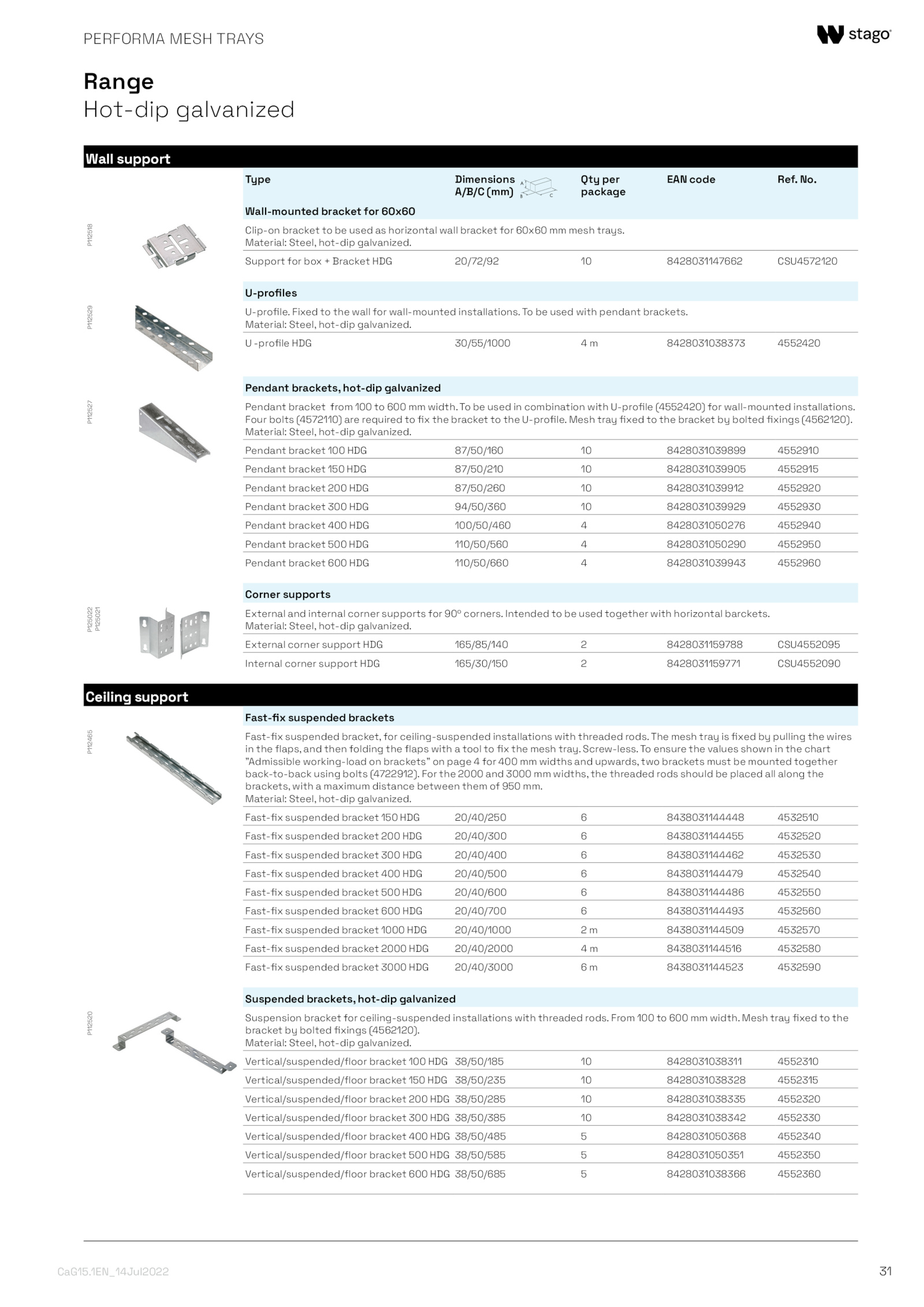

PERFORMA MESH TRAYS
Range
Hot-dip galvanized
Wall support
Type Dimensions
A/B/C (mm)
Qty per
package
EAN code Ref.
Material: Steel, hot-dip galvanized.
Vertical/suspended/floor bracket 100 HDG 38/50/185 8428031038311 4552310
Vertical/suspended/floor bracket 150 HDG 38/50/235 8428031038328 4552315
Vertical/suspended/floor bracket 200 HDG 38/50/285 8428031038335 4552320
Vertical/suspended/floor bracket 300 HDG 38/50/385 8428031038342 4552330
Vertical/suspended/floor bracket 400 HDG 38/50/485 8428031050368 4552340
Vertical/suspended/floor bracket 500 HDG 38/50/585 8428031050351 4552350
Vertical/suspended/floor bracket 600 HDG 38/50/685 8428031038366 4552360
.To ensure the values shown the chart
"Admissible working-load brackets" page for 400 widths and upwards, two brackets must mounted together
back-to-back using bolts (4722912).To used combination with U-profile (4552420) for wall-mounted installations. Fixed the wall for wall-mounted installations. Mesh tray fixed the
bracket bolted fixings (4562120).
Material: Steel, hot-dip galvanized.
Fast-fix suspended bracket 150 HDG 20/40/250 8438031144448 4532510
Fast-fix suspended bracket 200 HDG 20/40/300 8438031144455 4532520
Fast-fix suspended bracket 300 HDG 20/40/400 8438031144462 4532530
Fast-fix suspended bracket 400 HDG 20/40/500 8438031144479 4532540
Fast-fix suspended bracket 500 HDG 20/40/600 8438031144486 4532550
Fast-fix suspended bracket 600 HDG 20/40/700 8438031144493 4532560
Fast-fix suspended bracket 1000 HDG 20/40/1000 8438031144509 4532570
Fast-fix suspended bracket 2000 HDG 20/40/2000 8438031144516 4532580
Fast-fix suspended bracket 3000 HDG 20/40/3000 8438031144523 4532590
Suspended brackets, hot-dip galvanized
P112520
Suspension bracket for ceiling-suspended installations with threaded rods.
Material: Steel, hot-dip galvanized. For the 2000 and 3000 widths, the threaded rods should placed all along the
brackets, with maximum distance between them 950 mm.
Four bolts (4572110) are required fix the bracket the U-profile.
U -profile HDG 30/55/1000 8428031038373 4552420
Pendant brackets, hot-dip galvanized
P112527
Pendant bracket from 100 600 width.
Material: Steel, hot-dip galvanized. Intended used together with horizontal barckets.
External corner support HDG 165/85/140 8428031159788 CSU4552095
Internal corner support HDG 165/30/150 8428031159771 CSU4552090
Ceiling support
Fast-fix suspended brackets
P112465
Fast-fix suspended bracket, for ceiling-suspended installations with threaded rods.To used with pendant brackets.
Material: Steel, hot-dip galvanized
