The data section shows
- diameter the cable sample
- cable designation
- defined crimp flange size (CF-type according customers
requirements)
- crimp ferrule size (if applicable)
- corresponding cimp die size and type
the field for additional technical information, the process-
ing instruction apply indicated and additional remarks or
process steps are given.
Documentation cable-specific
crimp data definition
The headline resumes all components and types crimp dies
that can used with Inotec crim flange technology.120 www.inotec-electronics.com
Important: Regular review processing parameters
Due changing material compositions and manufacturing
technologies, the processing properties cables may vary
without their characteristics having changed according the
manufacturer’s data sheet.
Required input data and sample:
Cable sample (min.
Definition the most suitable and reliable assembly
procedure (if standard procedure KV0001 cannot be
recommended, corresponding data sheet with detailed
processing instructions provided)
Definition the most appropriate components (crimp
flange and ferrule)
Definition the appropriate crimp die type and size
Additional recommendations assembly instructions if
required
Original Inotec crimp flange system
.
The customer’s data sheet contains the following relevant
information.
Documentation the cable sample provided. 0,5 m)
Intended use (Inotec hood type)
Cable data sheet (if available)
Based this information, the Inotec mechanical laboratory
realizes assembly tryout, traction and torque test order to
find out the optimal combination convenient assembly,
reliable cable shield contact and best possible mechanical
resistance the crimped connection.
Once the crimp data definition accomplished, the
customer receives crimp data sheet and crimped cable
sample.
Inotec therefore recommends that crimp data definitions
made more than years ago checked.
As exclusive customer service Inotec electronics GmbH pro-
vides crimp data definition for every specific cable and all cable
manufacturers.

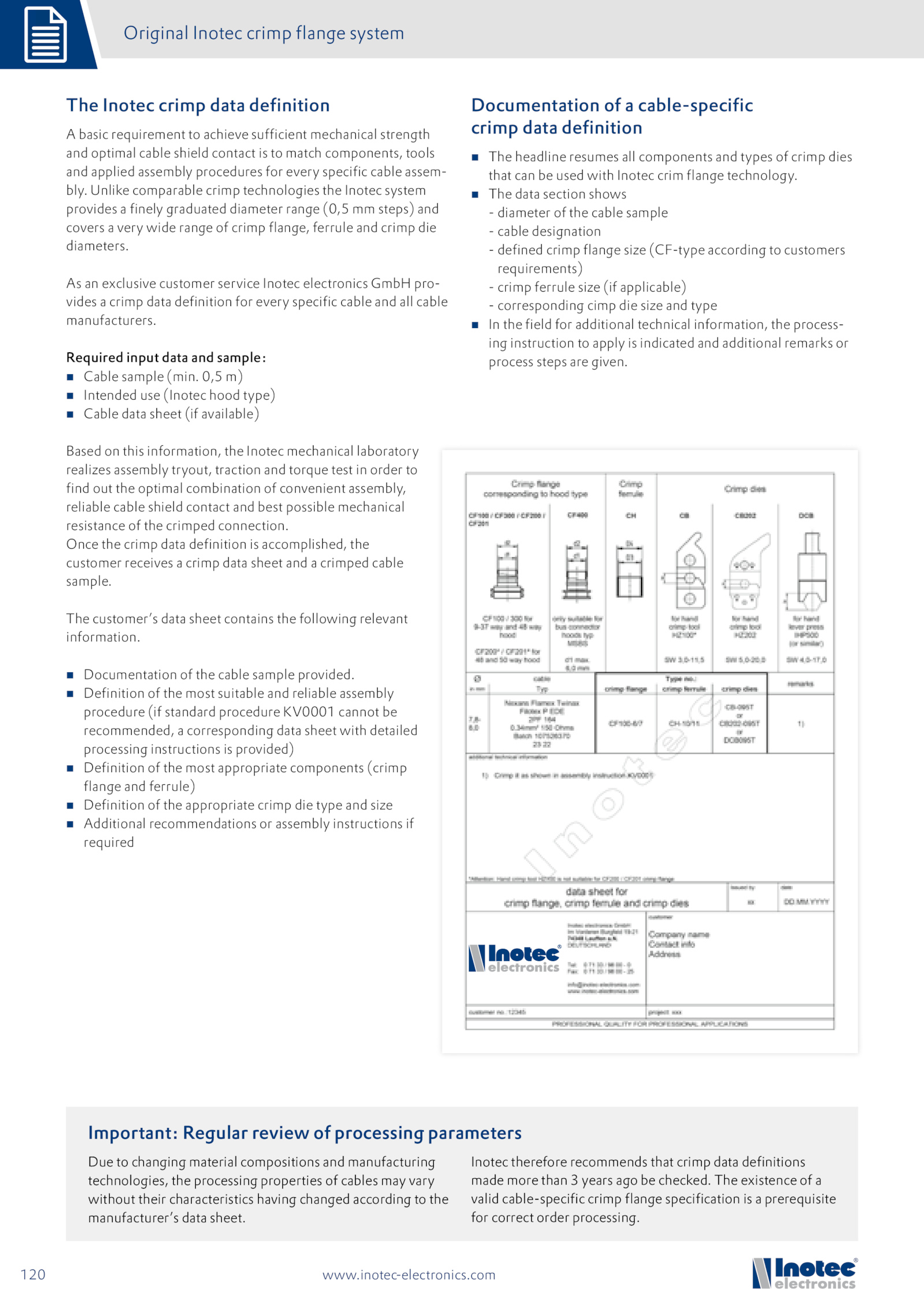

The Inotec crimp data definition
A basic requirement achieve sufficient mechanical strength
and optimal cable shield contact match components, tools
and applied assembly procedures for every specific cable assem-
bly. The existence a
valid cable-specific crimp flange specification prerequisite
for correct order processing. Unlike comparable crimp technologies the Inotec system
provides finely graduated diameter range (0,5 steps) and
covers very wide range crimp flange, ferrule and crimp die
diameters
