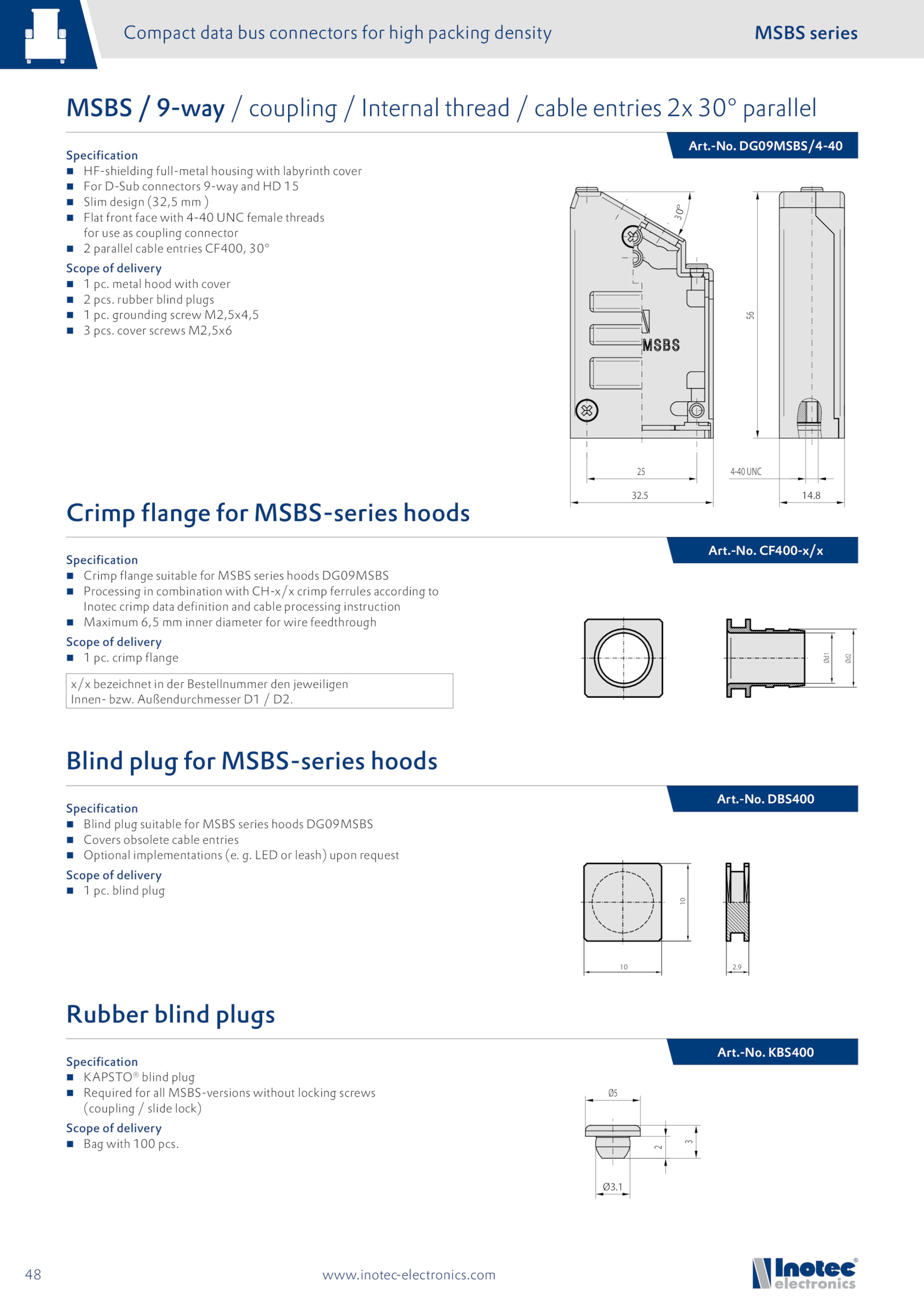

Compact data bus connectors for high packing density MSBS series
.14. DBS400
Specification
HF-shielding full-metal housing with labyrinth cover
For D-Sub connectors 9-way and 15
Slim design (32,5 )
Flat front face with 4-40 UNC female threads
for use coupling connector
parallel cable entries CF400, 30°
Scope delivery
pc. CF400-x/x
Specification
Crimp flange suitable for MSBS series hoods DG09MSBS
Processing combination with CH-x/x crimp ferrules according to
Inotec crimp data definition and cable processing instruction
Maximum 6,5 inner diameter for wire feedthrough
Scope delivery
pc.8
56
25
