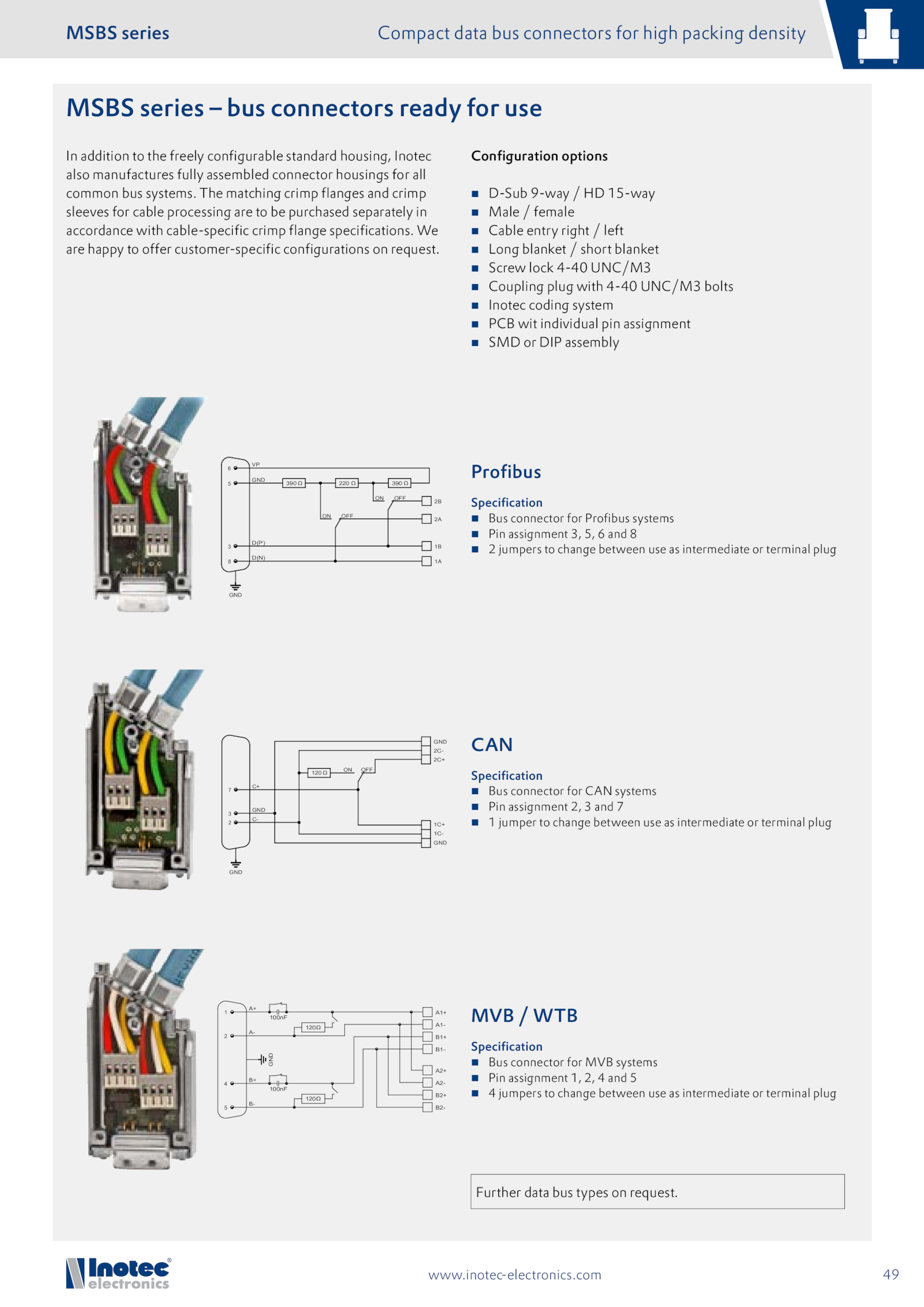

Compact data bus connectors for high packing density
MSBS series
.inotec-electronics.com
MSBS series bus connectors ready for use
In addition the freely configurable standard housing, Inotec
also manufactures fully assembled connector housings for all
common bus systems. We
are happy offer customer-specific configurations request. The matching crimp flanges and crimp
sleeves for cable processing are purchased separately in
accordance with cable-specific crimp flange specifications.
Profibus
Specification
Bus connector for Profibus systems
Pin assignment and 8
jumpers change between use intermediate terminal plug
CAN
Specification
Bus connector for CAN systems
Pin assignment and 7
jumper change between use intermediate terminal plug
MVB WTB
Specification
Bus connector for MVB systems
Pin assignment and 5
jumpers change between use intermediate terminal plug
Configuration options
D-Sub 9-way 15-way
Male female
Cable entry right left
Long blanket short blanket
Screw lock 4-40 UNC/M3
Coupling plug with 4-40 UNC/M3 bolts
Inotec coding system
PCB wit individual pin assignment
SMD DIP assembly
Further data bus types request
