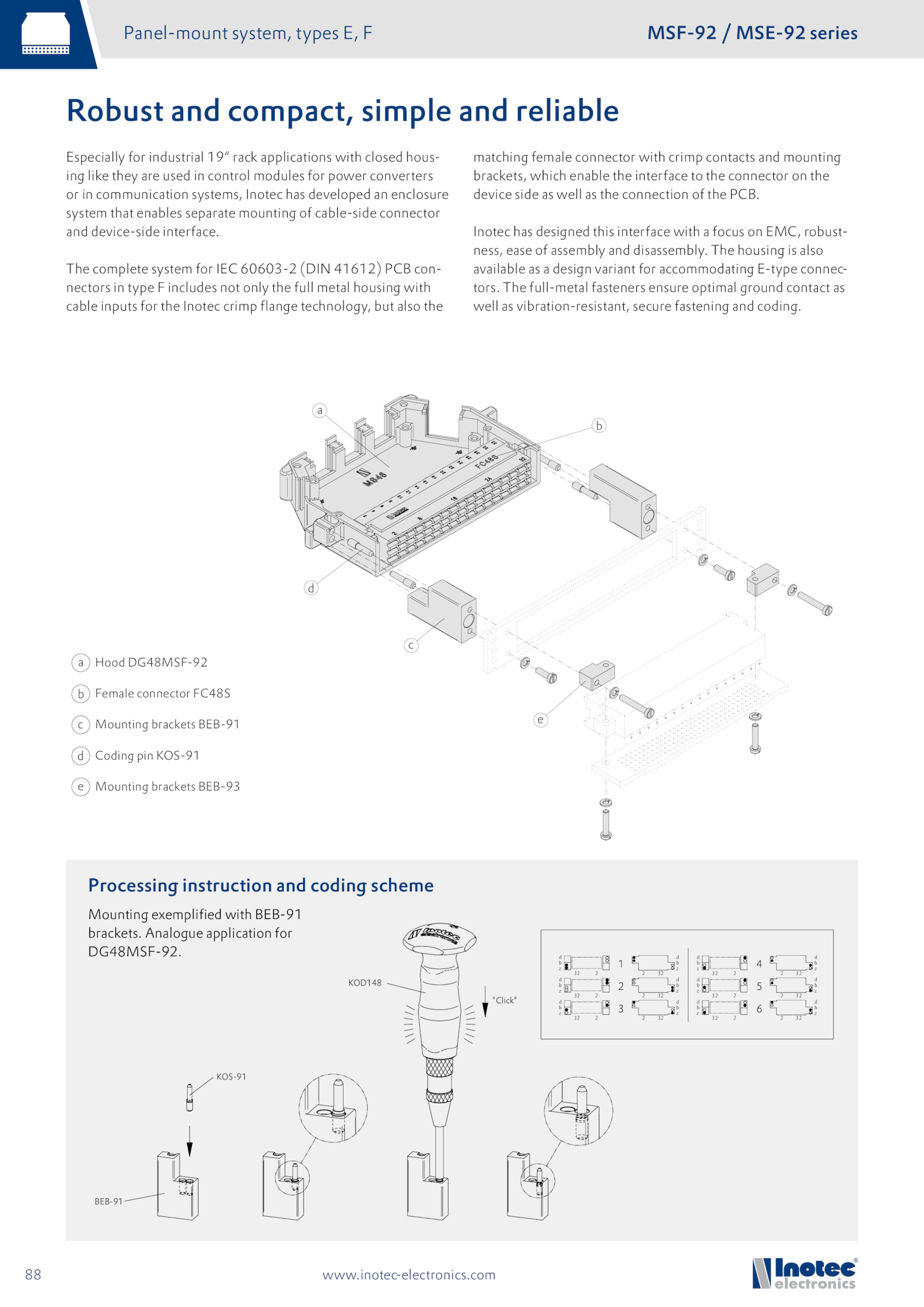

Robust and compact, simple and reliable
Especially for industrial 19“ rack applications with closed hous-
ing like they are used control modules for power converters
or communication systems, Inotec has developed enclosure
system that enables separate mounting cable-side connector
and device-side interface. The full-metal fasteners ensure optimal ground contact as
well vibration-resistant, secure fastening and coding.
MSF-92 MSE-92 series
Panel-mount system, types. Analogue application for
DG48MSF-92.
Inotec has designed this interface with focus EMC, robust-
ness, ease assembly and disassembly.
The complete system for IEC 60603-2 (DIN 41612) PCB con-
nectors type includes not only the full metal housing with
cable inputs for the Inotec crimp flange technology, but also the
matching female connector with crimp contacts and mounting
brackets, which enable the interface the connector the
device side well the connection the PCB.inotec-electronics.
88 www. The housing also
available design variant for accommodating E-type connec-
tors.a
d
c
e
b
KOD148
"Click"
KOS-91
BEB-91
