www. these cases, addi-
tional embossing added means a
trapezoidal indent the crimp die.com
Micrographs cable processing
according KV0001 (standard
processing), without and with trape-
zoidal indent
Important features correct cable
processing:
Regular and fully formed hexago-
nal contour
360° contact between shield braid
and crimp flange
squeezing the wires and
damage the cable sheath

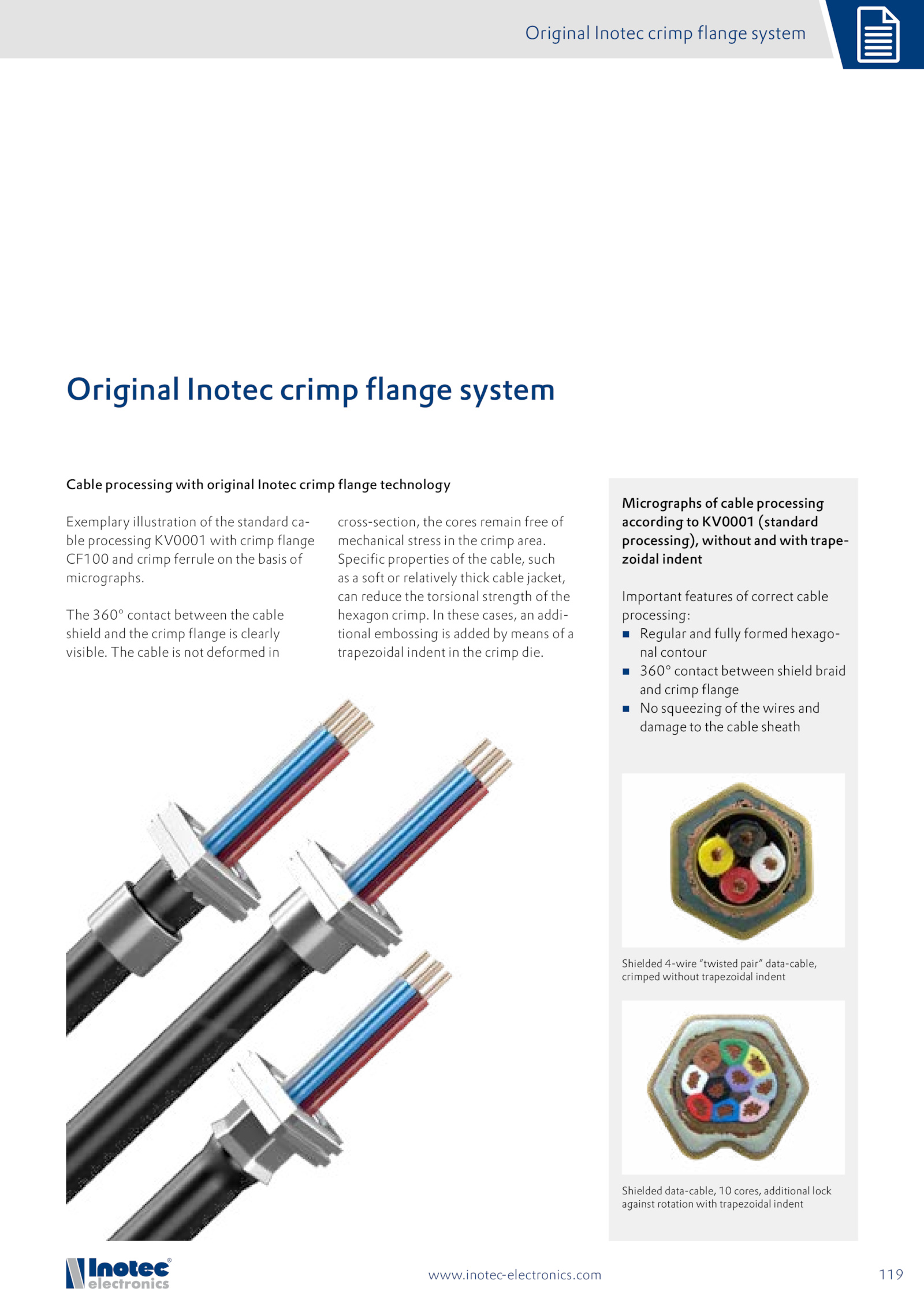

Cable processing with original Inotec crimp flange technology
Exemplary illustration the standard ca-
ble processing KV0001 with crimp flange
CF100 and crimp ferrule the basis of
micrographs.inotec-electronics.
Specific properties the cable, such
as soft relatively thick cable jacket,
can reduce the torsional strength the
hexagon crimp. The cable not deformed in
cross-section, the cores remain free of
mechanical stress the crimp area.
Shielded 4-wire “twisted pair” data-cable,
crimped without trapezoidal indent
Shielded data-cable, cores, additional lock
against rotation with trapezoidal indent
Original Inotec crimp flange system
Original Inotec crimp flange system
.
The 360° contact between the cable
shield and the crimp flange clearly
visible
