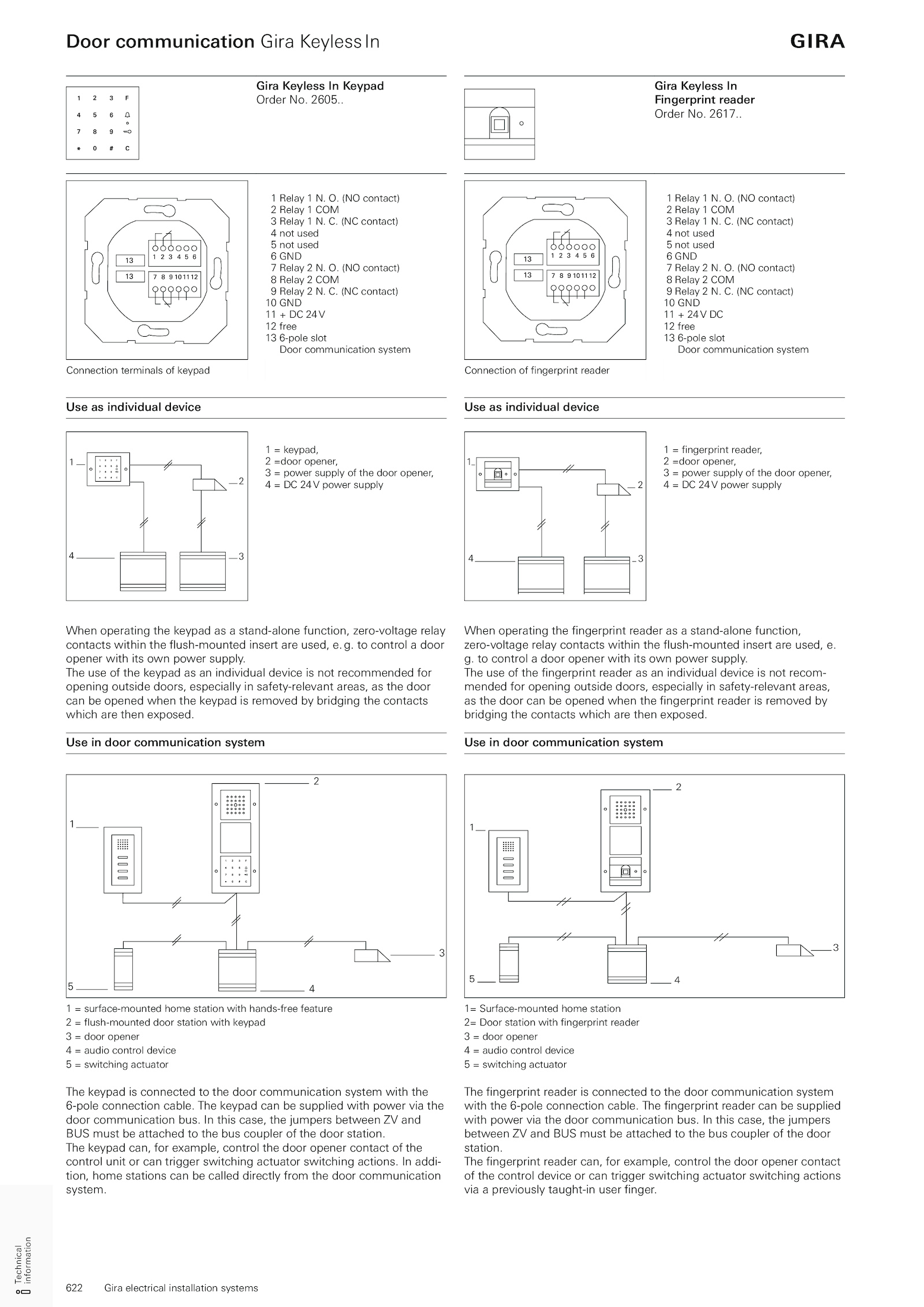

622 Gira electrical installation systems Door communication Gira KeylessIn I Technical information Gira Keyless Keypad Order No. g. The use the fingerprint reader individual device not recom- mended for opening outside doors, especially safety-relevant areas, as the door can opened when the fingerprint reader removed by bridging the contacts which are then exposed. 1 Relay (NO contact) 2 Relay COM 3 Relay (NC contact) 4 not used 5 not used 6 GND 7 Relay (NO contact) 8 Relay COM 9 Relay (NC contact) 10 GND 11 24V DC 12 free 13 6-pole slot Door communication system Connection fingerprint reader Use individual device 1 2 3 4 1 fingerprint reader, 2 =door opener, 3 power supply the door opener, 4 24V power supply When operating the fingerprint reader stand-alone function, zero-voltage relay contacts within the flush-mounted insert are used, e. 1 Relay (NO contact) 2 Relay COM 3 Relay (NC contact) 4 not used 5 not used 6 GND 7 Relay (NO contact) 8 Relay COM 9 Relay (NC contact) 10 GND 11 24V 12 free 13 6-pole slot Door communication system Connection terminals keypad Use individual device 1 2 3 4 1 keypad, 2 =door opener, 3 power supply the door opener, 4 24V power supply When operating the keypad stand-alone function, zero-voltage relay contacts within the flush-mounted insert are used, e. 2605... Use door communication system 1 2 3 5 4 1 surface-mounted home station with hands-free feature 2 flush-mounted door station with keypad 3 door opener 4 audio control device 5 switching actuator The keypad connected the door communication system with the 6-pole connection cable. this case, the jumpers between and BUS must attached the bus coupler the door station. The use the keypad individual device not recommended for opening outside doors, especially safety-relevant areas, the door can opened when the keypad removed bridging the contacts which are then exposed. The fingerprint reader can, for example, control the door opener contact of the control device can trigger switching actuator switching actions via previously taught-in user finger. The keypad can, for example, control the door opener contact the control unit can trigger switching actuator switching actions. Gira Keyless In Fingerprint reader Order No. control door opener with its own power supply. 2617. control door opener with its own power supply. addi- tion, home stations can called directly from the door communication system. . g. Use door communication system 1 2 3 4 5 1= Surface-mounted home station 2= Door station with fingerprint reader 3 door opener 4 audio control device 5 switching actuator The fingerprint reader connected the door communication system with the 6-pole connection cable. The keypad can supplied with power via the door communication bus. The fingerprint reader can supplied with power via the door communication bus. this case, the jumpers between and BUS must attached the bus coupler the door station
