The flush-mounted inserts, cover
frames and cover plates are
installed the device box the
usual manner.
Mount the grey Gira E22/Gira E2
flush-mounted device box the
red Gira E22/Gira flush-
mounted device box and align.
2.
max
30 mm
Important:
The spacers the red Gira E22/
Gira flush-mounted device box
must not shortened or
removed.
4.
The flush-mounted inserts, cover
frames and cover plates are
installed the device box the
usual manner.
Important:
Observe the note installation
depth.
The device box can corrected
by 3°.
Produce rectangular cut-out,
mount the red Gira E22/Gira E2
flush-mounted device box and,
for example, secure with plaster.
The Gira E22/Gira flush-
mounted device box screwed in
the flush-mounted device box with
claws, like common hollow-wall
box.
Mount the included plaster pro-
tection and plaster the wall.
Then remove the plaster protec-
tion and cut the box opening clear.
3.
The Gira E22/Gira flush-
mounted device box screwed in
the hollow wall with claws, like a
common hollow-wall box.
.
Flat installation hollow wall
Cut out the rectangular cut-out,
mount the grey device box and
fasten with claws.
Installation depth for flat installation masonry
min The installation depth the red
flush-mounted device box is
based the subsequent plaster
thickness.606 Gira electrical installation systems

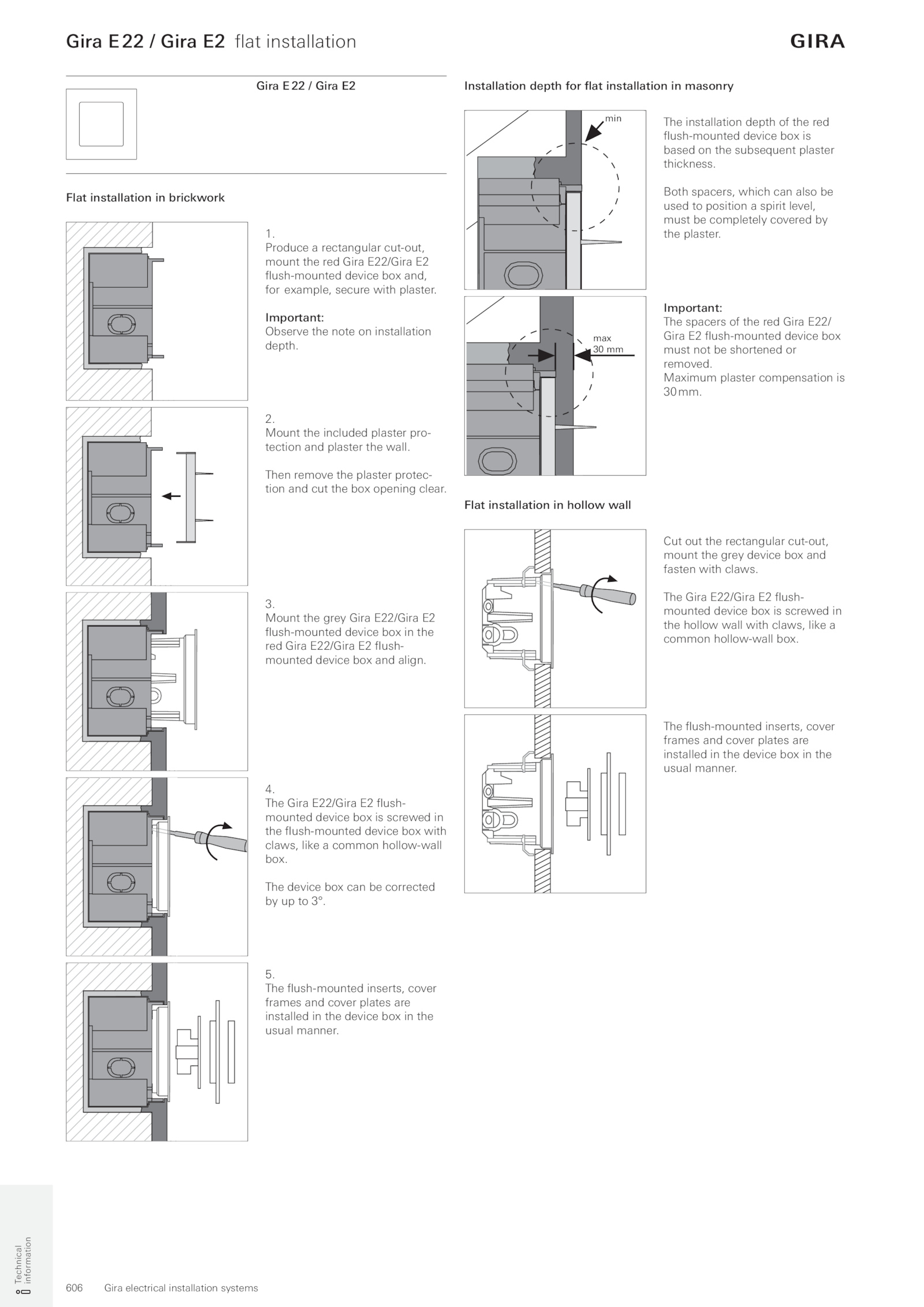

Gira E22 Gira flat installation
I
Technical
information
Gira E22 Gira E2
Flat installation brickwork
1.
5.
Both spacers, which can also be
used position spirit level,
must completely covered by
the plaster.
Maximum plaster compensation is
30mm
