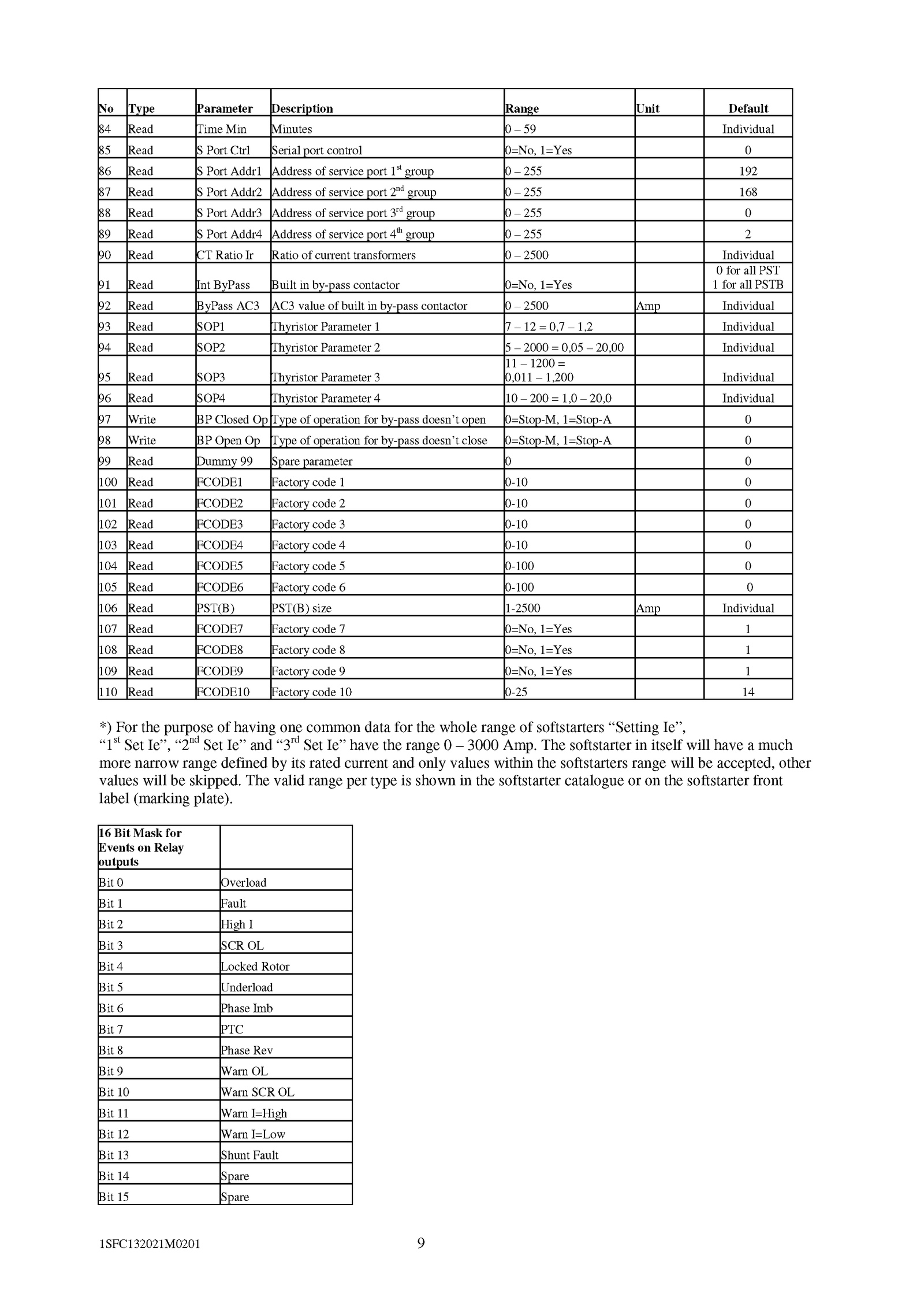

Type Parameter Description Range Unit Default 84 Read Time Min Minutes Individual 85 Read Port Ctrl Serial port control 0=No, 1=Yes 0 86 Read Port Addr1 Address service port 1st group 255 192 87 Read Port Addr2 Address service port 2ndgroup 255 168 88 Read Port Addr3 Address service port 3rd group 255 0 89 Read Port Addr4 Address service port 4thgroup 255 2 90 Read Ratio Ratio current transformers 2500 Individual 91 Read Int ByPass Built by-pass contactor 0=No, 1=Yes 0 for all PST 1 for all PSTB 92 Read ByPass AC3 AC3 value built by-pass contactor 2500 Amp Individual 93 Read SOP1 Thyristor Parameter 0,7 1,2 Individual 94 Read SOP2 Thyristor Parameter 2000 0,05 20,00 Individual 95 Read SOP3 Thyristor Parameter 3 11 1200 = 0,011 1,200 Individual 96 Read SOP4 Thyristor Parameter 200 1,0 20,0 Individual 97 Write Closed Type operation for by-pass doesn’t open 0=Stop-M, 1=Stop-A 0 98 Write Open Type operation for by-pass doesn’t close 0=Stop-M, 1=Stop-A 0 99 Read Dummy Spare parameter 0 100 Read FCODE1 Factory code 0-10 0 101 Read FCODE2 Factory code 0-10 0 102 Read FCODE3 Factory code 0-10 0 103 Read FCODE4 Factory code 0-10 0 104 Read FCODE5 Factory code 0-100 0 105 Read FCODE6 Factory code 0-100 0 106 Read PST(B) PST(B) size 1-2500 Amp Individual 107 Read FCODE7 Factory code 0=No, 1=Yes 1 108 Read FCODE8 Factory code 0=No, 1=Yes 1 109 Read FCODE9 Factory code 0=No, 1=Yes 1 110 Read FCODE10 Factory code 0-25 14 *) For the purpose having one common data for the whole range softstarters “Setting Ie”, “1st Set Ie”, “2ndSet Ie” and “3rd Set Ie” have the range 3000 Amp. 16 Bit Mask for Events Relay outputs Bit Overload Bit Fault Bit High I Bit SCR OL Bit Locked Rotor Bit Underload Bit Phase Imb Bit PTC Bit Phase Rev Bit Warn OL Bit Warn SCR OL Bit Warn I=High Bit Warn I=Low Bit Shunt Fault Bit Spare Bit Spare 1SFC132021M0201. The valid range per type shown the softstarter catalogue the softstarter front label (marking plate). The softstarter itself will have much more narrow range defined its rated current and only values within the softstarters range will accepted, other values will skipped
