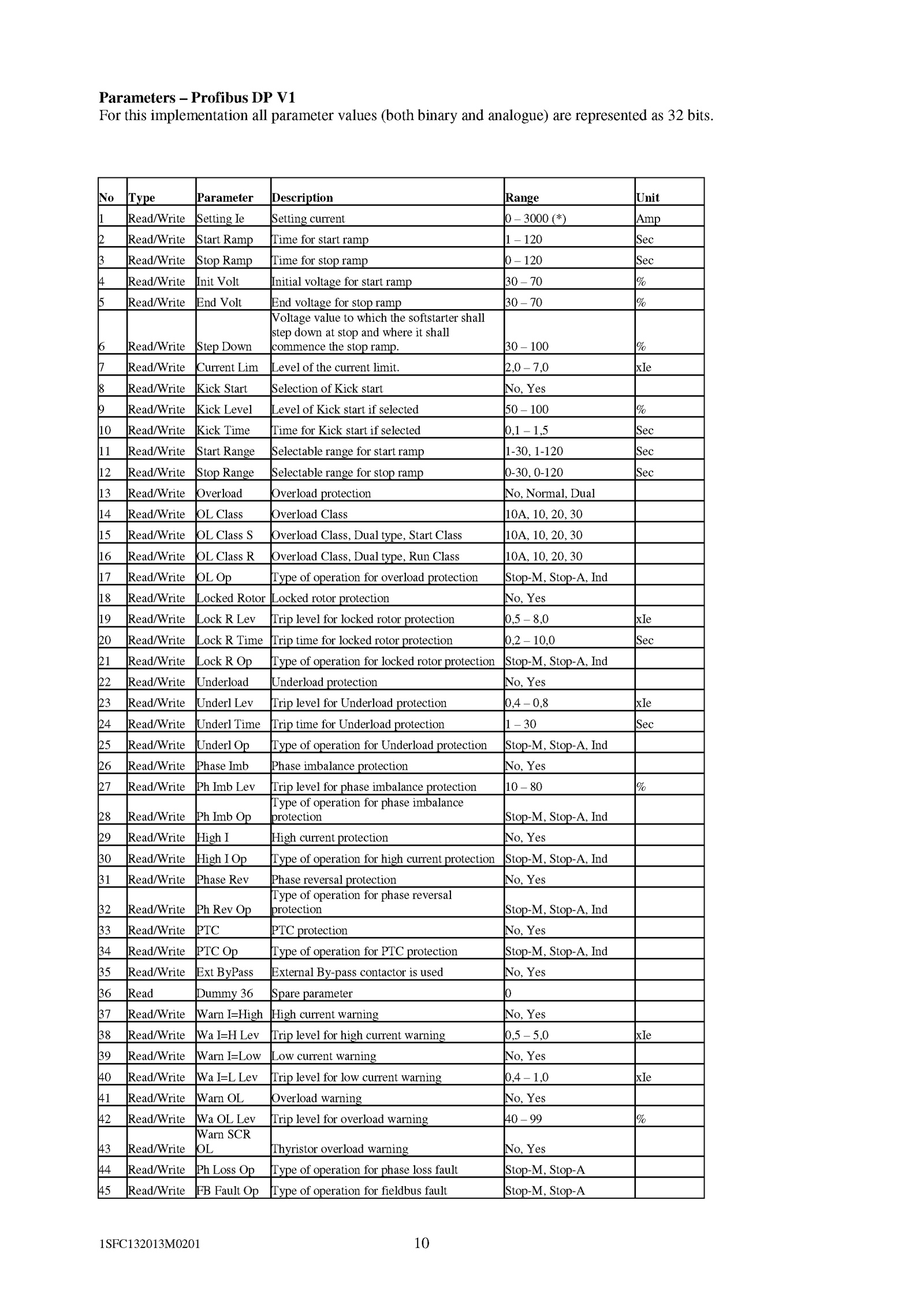

Parameters Profibus V1
For this implementation all parameter values (both binary and analogue) are represented bits.
No Type Parameter Description Range Unit
1 Read/Write Setting Setting current 3000 (*) Amp
2 Read/Write Start Ramp Time for start ramp 120 Sec
3 Read/Write Stop Ramp Time for stop ramp 120 Sec
4 Read/Write Init Volt Initial voltage for start ramp %
5 Read/Write End Volt End voltage for stop ramp %
6 Read/Write Step Down
Voltage value which the softstarter shall
step down stop and where shall
commence the stop ramp. 100 %
7 Read/Write Current Lim Level the current limit. 2,0 7,0 xIe
8 Read/Write Kick Start Selection Kick start No, Yes
9 Read/Write Kick Level Level Kick start selected 100 %
10 Read/Write Kick Time Time for Kick start selected 0,1 1,5 Sec
11 Read/Write Start Range Selectable range for start ramp 1-30, 1-120 Sec
12 Read/Write Stop Range Selectable range for stop ramp 0-30, 0-120 Sec
13 Read/Write Overload Overload protection No, Normal, Dual
14 Read/Write Class Overload Class 10A, 10, 20, 30
15 Read/Write Class Overload Class, Dual type, Start Class 10A, 10, 20, 30
16 Read/Write Class Overload Class, Dual type, Run Class 10A, 10, 20, 30
17 Read/Write Type operation for overload protection Stop-M, Stop-A, Ind
18 Read/Write Locked Rotor Locked rotor protection No, Yes
19 Read/Write Lock Lev Trip level for locked rotor protection 0,5 8,0 xIe
20 Read/Write Lock Time Trip time for locked rotor protection 0,2 10,0 Sec
21 Read/Write Lock Type operation for locked rotor protection Stop-M, Stop-A, Ind
22 Read/Write Underload Underload protection No, Yes
23 Read/Write Underl Lev Trip level for Underload protection 0,4 0,8 xIe
24 Read/Write Underl Time Trip time for Underload protection Sec
25 Read/Write Underl Type operation for Underload protection Stop-M, Stop-A, Ind
26 Read/Write Phase Imb Phase imbalance protection No, Yes
27 Read/Write Imb Lev Trip level for phase imbalance protection %
28 Read/Write Imb Op
Type operation for phase imbalance
protection Stop-M, Stop-A, Ind
29 Read/Write High High current protection No, Yes
30 Read/Write High Type operation for high current protection Stop-M, Stop-A, Ind
31 Read/Write Phase Rev Phase reversal protection No, Yes
32 Read/Write Rev Op
Type operation for phase reversal
protection Stop-M, Stop-A, Ind
33 Read/Write PTC PTC protection No, Yes
34 Read/Write PTC Type operation for PTC protection Stop-M, Stop-A, Ind
35 Read/Write Ext ByPass External By-pass contactor used No, Yes
36 Read Dummy Spare parameter 0
37 Read/Write Warn I=High High current warning No, Yes
38 Read/Write I=H Lev Trip level for high current warning 0,5 5,0 xIe
39 Read/Write Warn I=Low Low current warning No, Yes
40 Read/Write I=L Lev Trip level for low current warning 0,4 1,0 xIe
41 Read/Write Warn Overload warning No, Yes
42 Read/Write Lev Trip level for overload warning %
43 Read/Write
Warn SCR
OL Thyristor overload warning No, Yes
44 Read/Write Loss Type operation for phase loss fault Stop-M, Stop-A
45 Read/Write Fault Type operation for fieldbus fault Stop-M, Stop-A
