TOPJOB® Test Plug Adapters can used all jumper
slots.
Upper level: two independent signal pathways Commoning (potential level):
Commoning potential levels via push-in type jumper bars
(2000 Series).
.wago.
Power supply
orange supply terminal block same profile from both the
cabinet and sensor sides. Models with LED can only commoned
in one jumper slot.110
www.
3-conductor sensor LED terminal block with connected sensor
Marking
marking strips (2009‑110) from the top the side.com
Rail-Mount Terminal Blocks, TOPJOB® S
Rail-Mount Terminal Blocks, TOPJOB® S

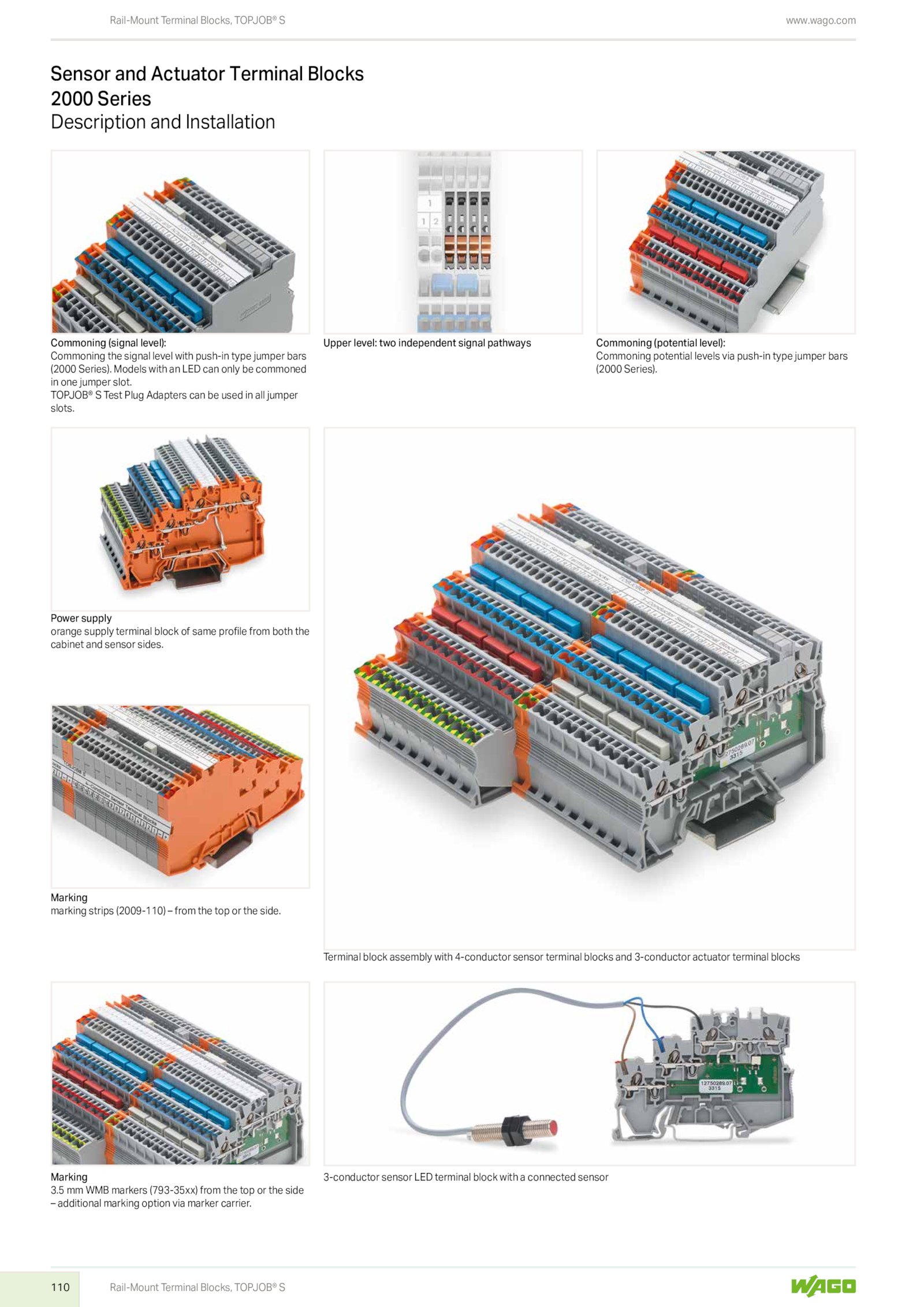

Description and Installation
Sensor and Actuator Terminal Blocks
2000 Series
Commoning (signal level):
Commoning the signal level with push-in type jumper bars
(2000 Series).5 WMB markers (793-35xx) from the top the side
– additional marking option via marker carrier.
Terminal block assembly with 4-conductor sensor terminal blocks and 3-conductor actuator terminal blocks
Marking
