Testing via testing tap (2009-182) (up max.com

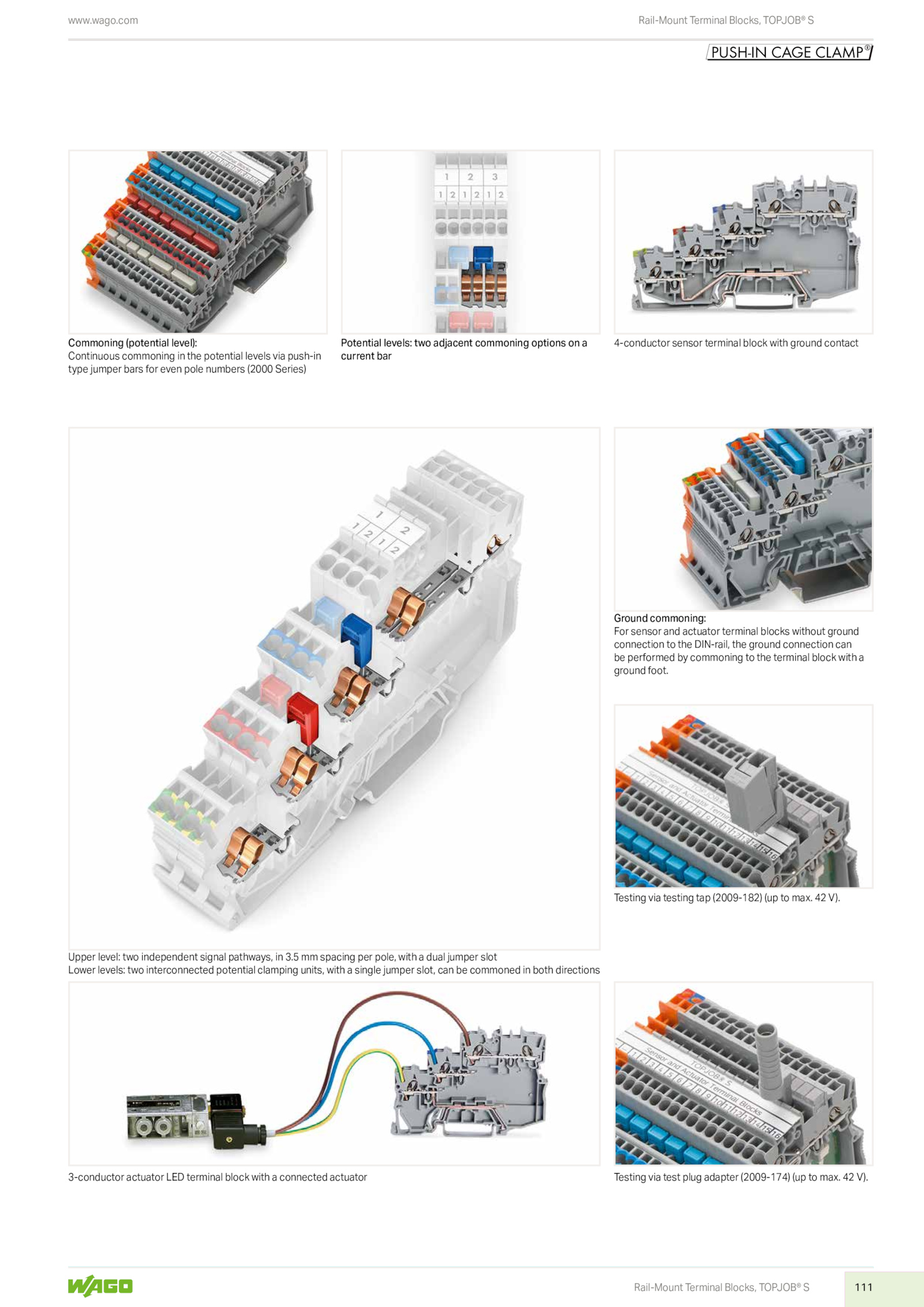

Rail-Mount Terminal Blocks, TOPJOB® S
Rail-Mount Terminal Blocks, TOPJOB® S
Upper level: two independent signal pathways, 3.5 spacing per pole, with dual jumper slot
Lower levels: two interconnected potential clamping units, with single jumper slot, can commoned both directions
Commoning (potential level):
Continuous commoning the potential levels via push-in
type jumper bars for even pole numbers (2000 Series)
Potential levels: two adjacent commoning options a
current bar
4-conductor sensor terminal block with ground contact
3-conductor actuator LED terminal block with connected actuator
Ground commoning:
For sensor and actuator terminal blocks without ground
connection the DIN-rail, the ground connection can
be performed commoning the terminal block with a
ground foot. V).
.
Testing via test plug adapter (2009-174) (up max
