Lamp capacity Capacitor Compensation parallel
4-13W 2uF
15-40W 4,5uF
58W 7uF
The above mentioned values are given the manufacturers fluorescent lamps and ballasts.The
total capacitor value the sum the individual capacitor values according the type and number fluorescent lamps compensated in
parallel (see table below).EATON SYSTEM
5

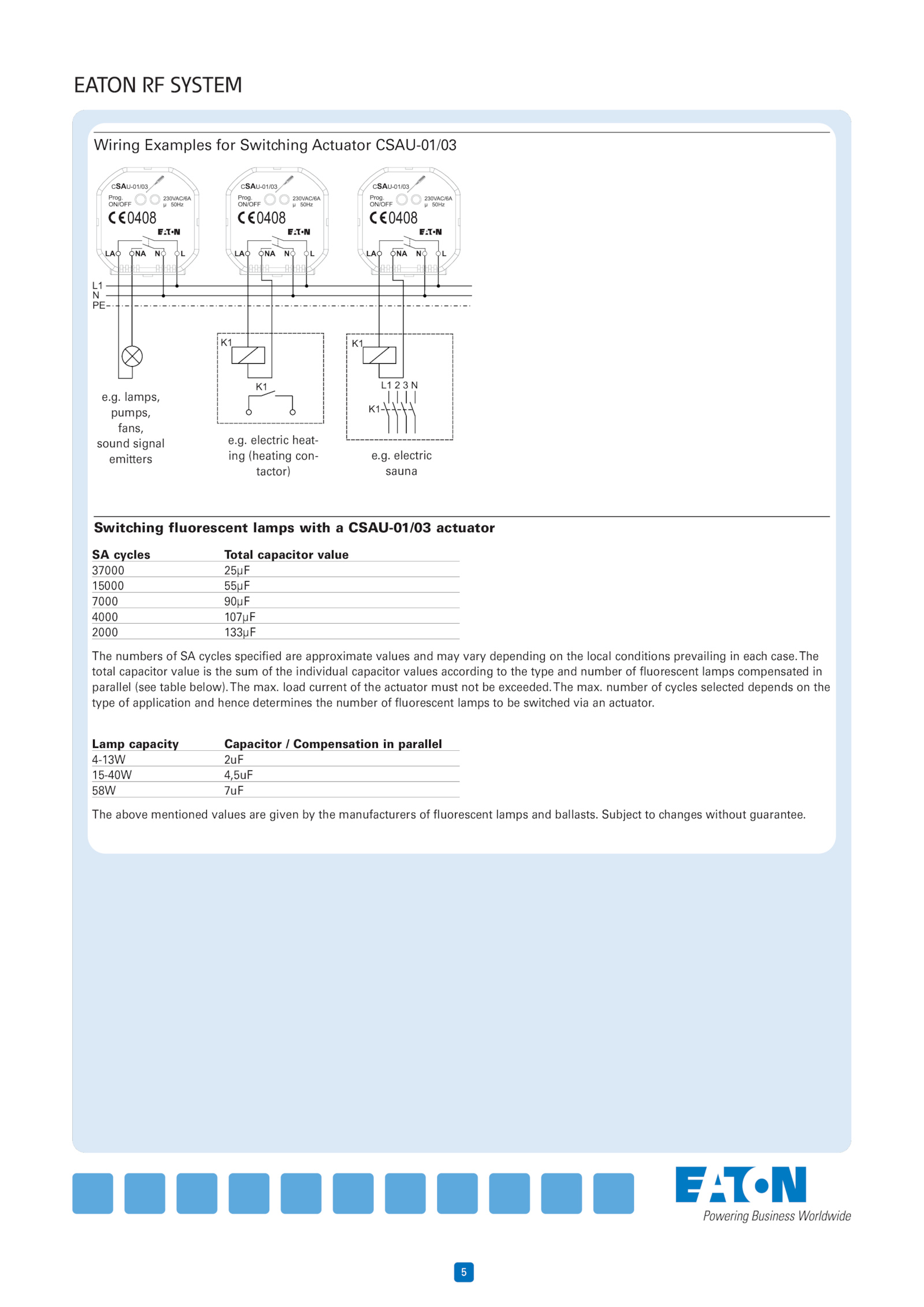

Wiring Examples for Switching Actuator CSAU-01/03
e. electric heat-
ing (heating con-
tactor)
e. lamps,
pumps,
fans,
sound signal
emitters
e.g.The max. number cycles selected depends the
type application and hence determines the number fluorescent lamps switched via actuator. Subject changes without guarantee. electric
sauna
Switching fluorescent lamps with CSAU-01/03 actuator
SA cycles Total capacitor value
37000 25µF
15000 55µF
7000 90µF
4000 107µF
2000 133µF
The numbers cycles specified are approximate values and may vary depending the local conditions prevailing each case.
.The max.g. load current the actuator must not exceeded
