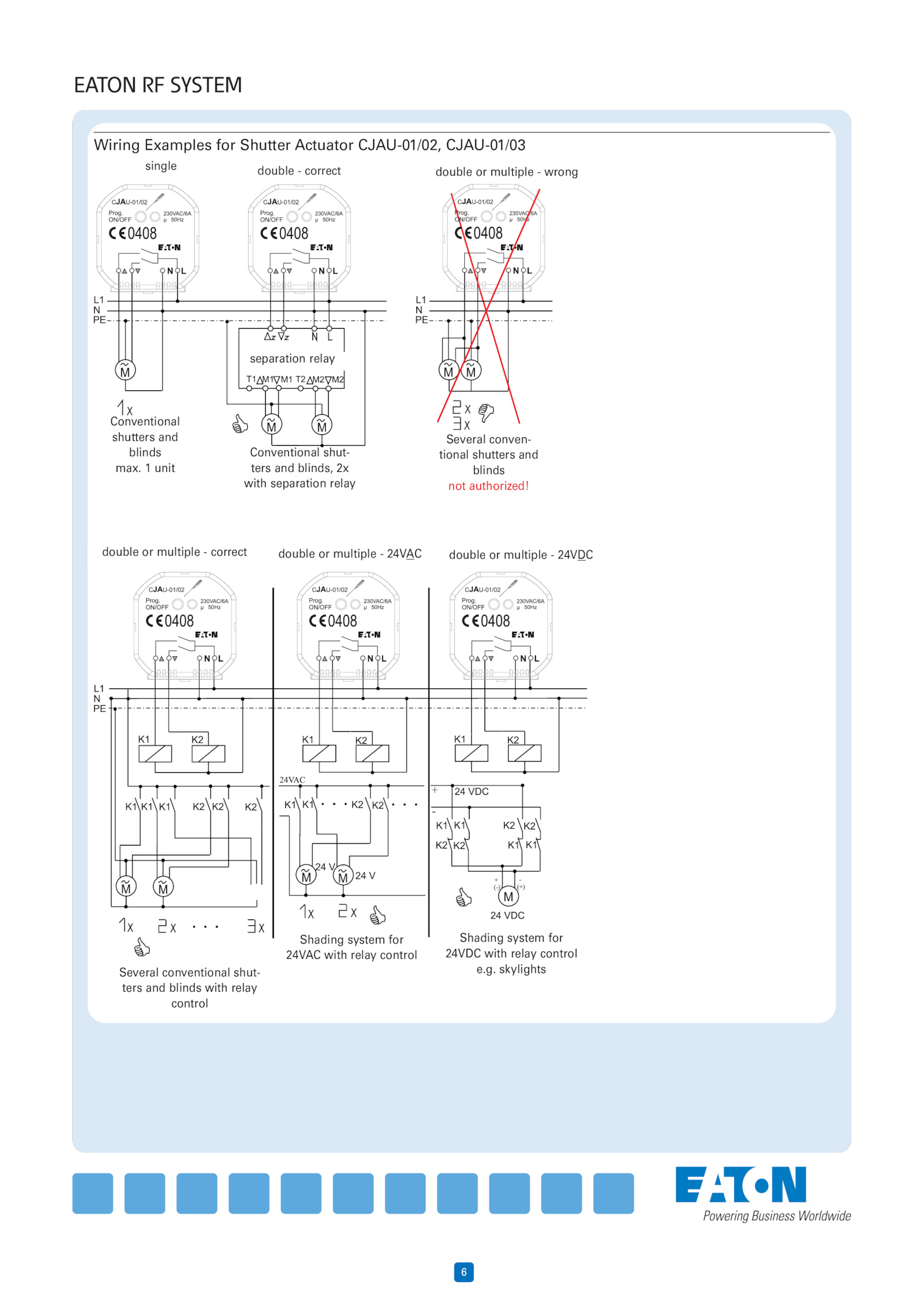

Wiring Examples for Shutter Actuator CJAU-01/02, CJAU-01/03
Conventional
shutters and
blinds
max. unit
Conventional shut-
ters and blinds, 2x
with separation relay
Several conven-
tional shutters and
blinds
not authorized!
Several conventional shut-
ters and blinds with relay
control
Shading system for
24VAC with relay control
Shading system for
24VDC with relay control
e. skylights
single double correct double multiple wrong
separation relay
double multiple correct double multiple 24VAC double multiple 24VDC
