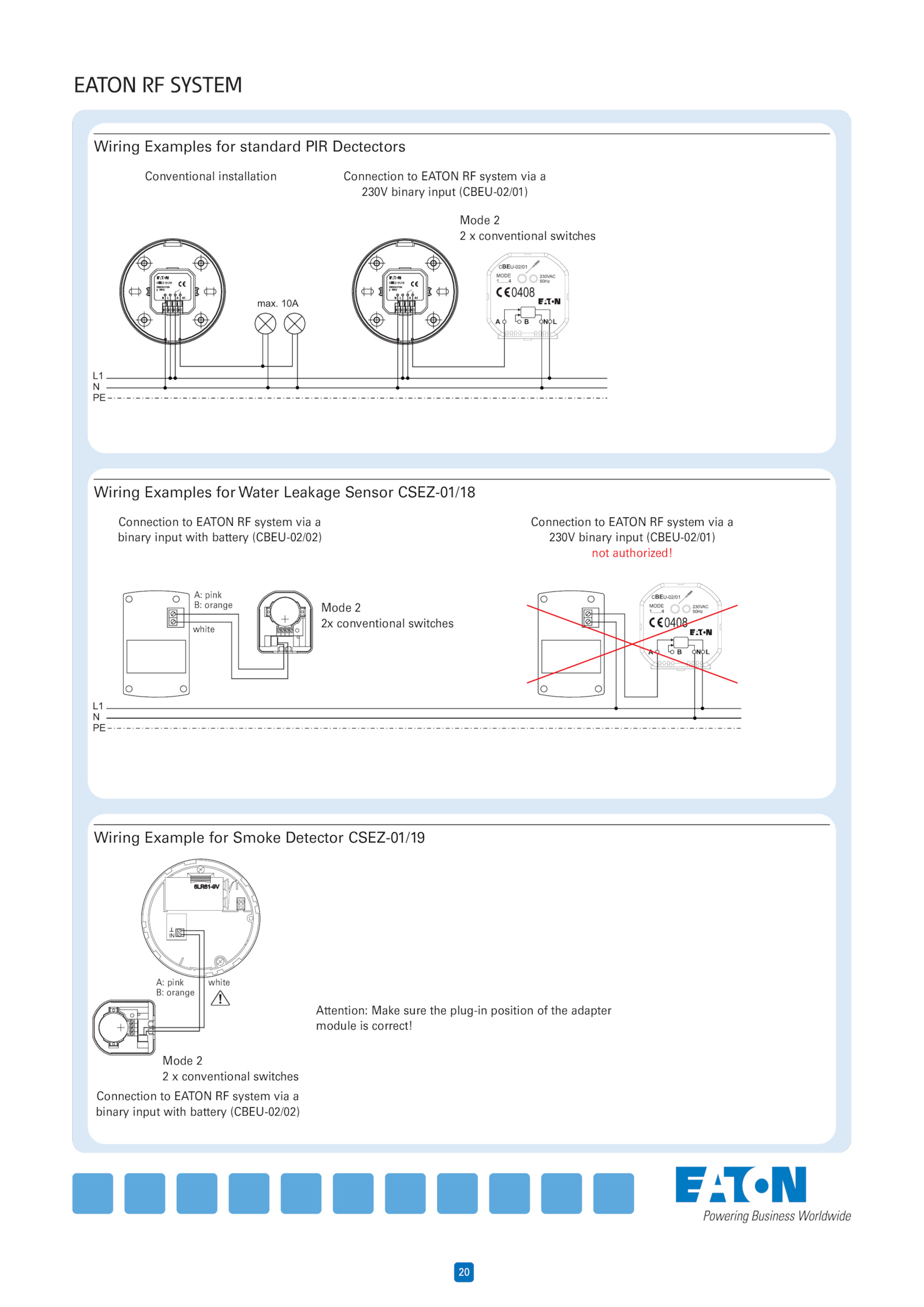

Wiring Examples for Water Leakage Sensor CSEZ-01/18
Mode 2
2x conventional switches
Connection EATON system via a
230V binary input (CBEU-02/01)
not authorized!
Connection EATON system via a
binary input with battery (CBEU-02/02)
A: pink
B: orange
white
Wiring Examples for standard PIR Dectectors
Conventional installation
Mode 2
2 conventional switches
Connection EATON system via a
230V binary input (CBEU-02/01)
Wiring Example for Smoke Detector CSEZ-01/19
Mode 2
2 conventional switches
Connection EATON system via a
binary input with battery (CBEU-02/02)
A: pink
B: orange
white
Attention: Make sure the plug-in position the adapter
module correct!
