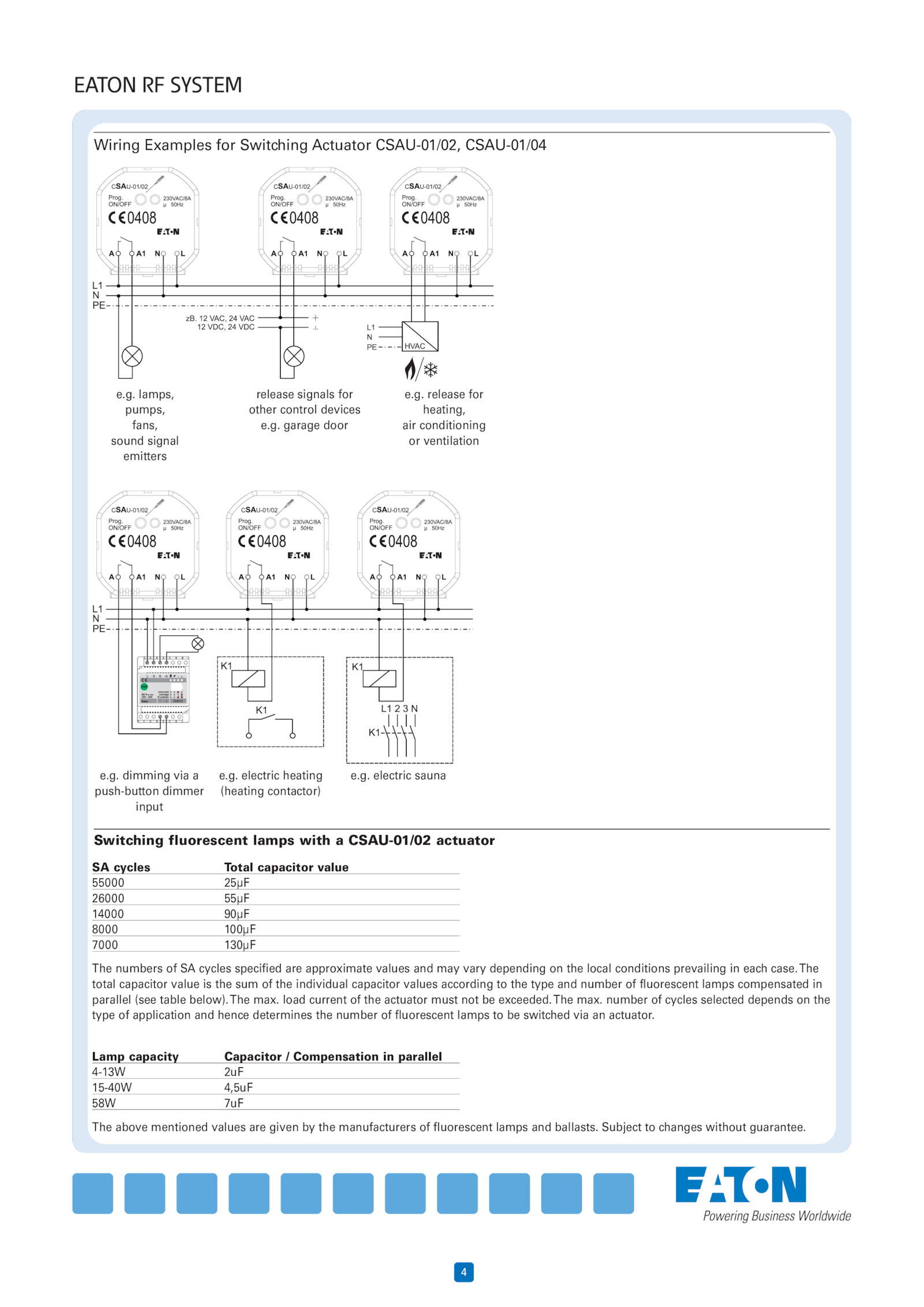

Wiring Examples for Switching Actuator CSAU-01/02, CSAU-01/04
e. dimming via a
push-button dimmer
input
e. number cycles selected depends the
type application and hence determines the number fluorescent lamps switched via actuator. load current the actuator must not exceeded.g.
.g. electric heating
(heating contactor)
e. lamps,
pumps,
fans,
sound signal
emitters
release signals for
other control devices
e. garage door
e.g. electric sauna
Switching fluorescent lamps with CSAU-01/02 actuator
SA cycles Total capacitor value
55000 25µF
26000 55µF
14000 90µF
8000 100µF
7000 130µF
The numbers cycles specified are approximate values and may vary depending the local conditions prevailing each case.
Lamp capacity Capacitor Compensation parallel
4-13W 2uF
15-40W 4,5uF
58W 7uF
The above mentioned values are given the manufacturers fluorescent lamps and ballasts.The max.The
total capacitor value the sum the individual capacitor values according the type and number fluorescent lamps compensated in
parallel (see table below).The max.g. Subject changes without guarantee
