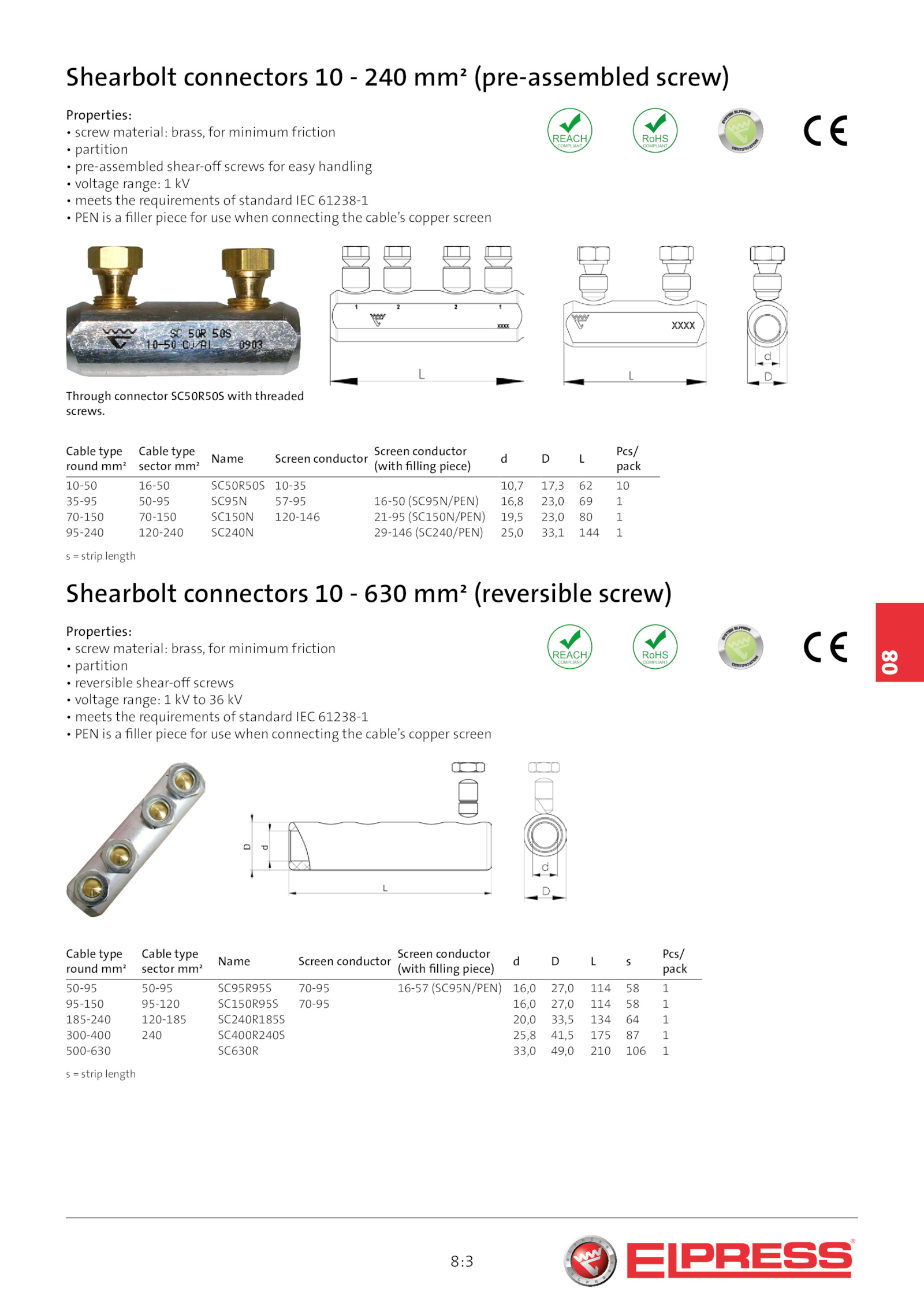

8:3 08 Shearbolt connectors 240 mm² (pre-assembled screw) Properties: • screw material: brass, for minimum friction • partition • pre-assembled shear-off screws for easy handling • voltage range: kV • meets the requirements standard IEC 61238-1 • PEN filler piece for use when connecting the cable’s copper screen Through connector SC50R50S with threaded screws. Cable type round mm² Cable type sector mm² Name Screen conductor Screen conductor (with filling piece) d L Pcs/ pack 10-50 16-50 SC50R50S 10-35 10,7 17,3 10 35-95 50-95 SC95N 57-95 16-50 (SC95N/PEN) 16,8 23,0 1 70-150 70-150 SC150N 120-146 21-95 (SC150N/PEN) 19,5 23,0 1 95-240 120-240 SC240N 29-146 (SC240/PEN) 25,0 33,1 144 1 s strip length Shearbolt connectors 630 mm² (reversible screw) Properties: • screw material: brass, for minimum friction • partition • reversible shear-off screws • voltage range: kV • meets the requirements standard IEC 61238-1 • PEN filler piece for use when connecting the cable’s copper screen Cable type round mm² Cable type sector mm² Name Screen conductor Screen conductor (with filling piece) d s Pcs/ pack 50-95 50-95 SC95R95S 70-95 16-57 (SC95N/PEN) 16,0 27,0 114 1 95-150 95-120 SC150R95S 70-95 16,0 27,0 114 1 185-240 120-185 SC240R185S 20,0 33,5 134 1 300-400 240 SC400R240S 25,8 41,5 175 1 500-630 SC630R 33,0 49,0 210 106 1 s strip length
