Matrix holder TV2620, matrix
TP13M, punch TP13D.
The dies below are intended used together with Cu/Al conductors
according IEC 60228. Not used for pre-rounding.
Used the V600 system.6:14

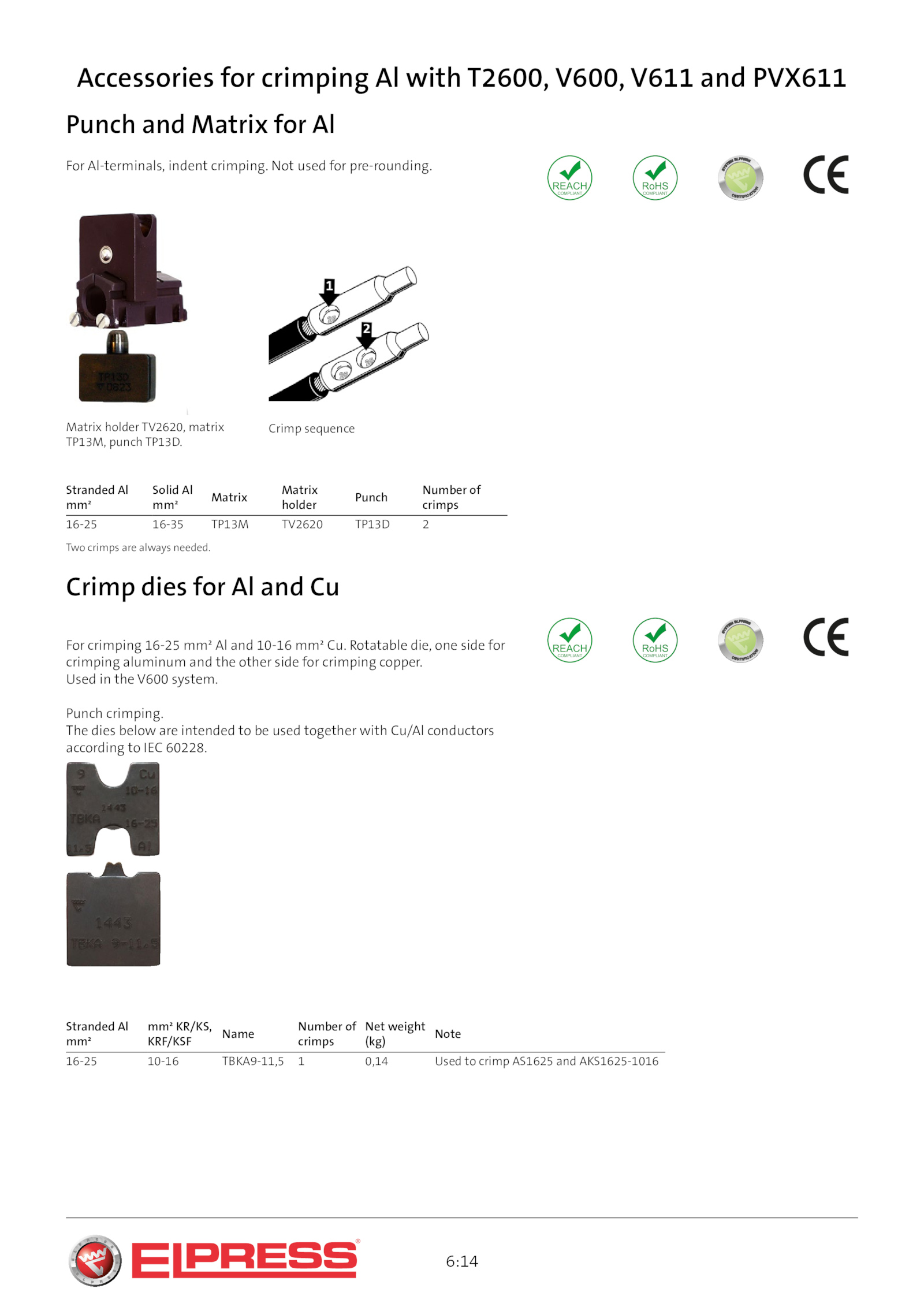

Accessories for crimping with T2600, V600, V611 and PVX611
Punch and Matrix for Al
For Al-terminals, indent crimping.
Stranded Al
mm²
mm² KR/KS,
KRF/KSF
Name
Number of
crimps
Net weight
(kg)
Note
16-25 10-16 TBKA9-11,5 0,14 Used crimp AS1625 and AKS1625-1016
.
Crimp sequence
Stranded Al
mm²
Solid Al
mm²
Matrix
Matrix
holder
Punch
Number of
crimps
16-25 16-35 TP13M TV2620 TP13D 2
Two crimps are always needed. Rotatable die, one side for
crimping aluminum and the other side for crimping copper.
Crimp dies for and Cu
For crimping 16-25 mm² and 10-16 mm² Cu.
Punch crimping
