The softstarter itself will have much
more narrow range defined its rated current and only values within the softstarters range will accepted, other

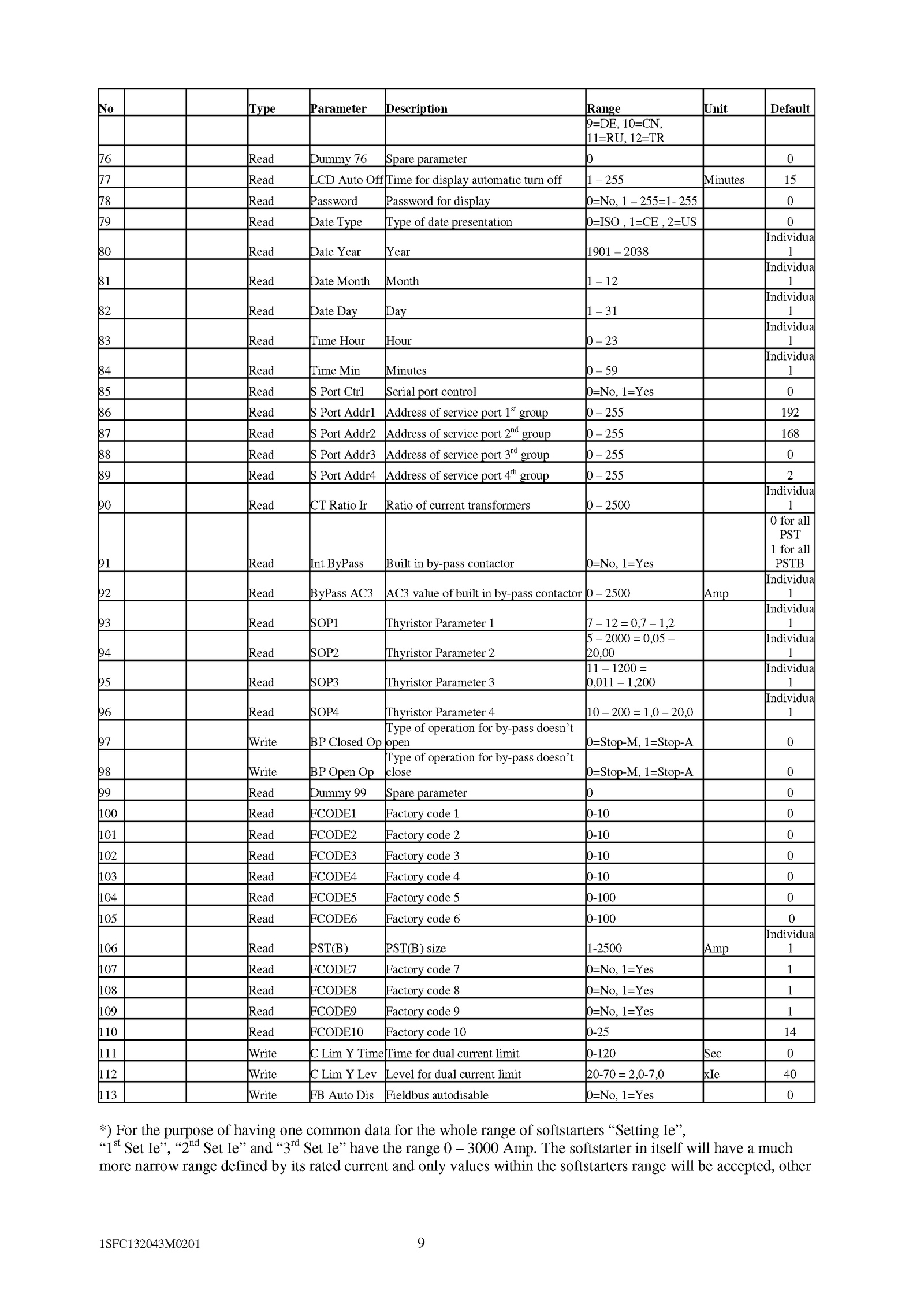

1SFC132043M0201.Type Parameter Description Range Unit Default
9=DE, 10=CN,
11=RU, 12=TR
76 Read Dummy Spare parameter 0
77 Read LCD Auto Off Time for display automatic turn off 255 Minutes 15
78 Read Password Password for display 0=No, 255=1- 255 0
79 Read Date Type Type date presentation 0=IS0 1=CE 2=US 0
80 Read Date Year Year 1901 2038
Individua
l
81 Read Date Month Month 12
Individua
l
82 Read Date Day Day 31
Individua
l
83 Read Time Hour Hour 23
Individua
l
84 Read Time Min Minutes 59
Individua
l
85 Read Port Ctrl Serial port control 0=No, 1=Yes 0
86 Read Port Addrl Address service port 1st group 255 192
87 Read Port Addr2 Address service port 2ndgroup 255 168
88 Read Port Addr3 Address service port 3rd group 255 0
89 Read Port Addr4 Address service port 4thgroup 255 2
90 Read Ratio Ratio current transformers 2500
Individua
l
91 Read Int ByPass Built by-pass contactor 0=No, 1=Yes
0 for all
PST
1 for all
PSTB
92 Read ByPass AC3 AC3 value built by-pass contactor 2500 Amp
Individua
l
93 Read SOP1 Thyristor Parameter 0,7 1,2
Individua
l
94 Read SOP2 Thyristor Parameter 2
5 2000 0,05 -
20,00
Individua
l
95 Read SOP3 Thyristor Parameter 3
11 1200 =
0,011 1,200
Individua
l
96 Read SOP4 Thyristor Parameter 200 1,0 20,0
Individua
l
97 Write Closed Op
Type operation for by-pass doesn’t
open 0=Stop-M, 1=Stop-A 0
98 Write Open Op
Type operation for by-pass doesn’t
close 0=Stop-M, 1=Stop-A 0
99 Read Dummy Spare parameter 0
100 Read FCODE1 Factory code 0-10 0
101 Read FCODE2 Factory code 0-10 0
102 Read FCODE3 Factory code 0-10 0
103 Read FCODE4 Factory code 0-10 0
104 Read FCODE5 Factory code 0-100 0
105 Read FCODE6 Factory code 0-100 0
106 Read PST(B) PST(B) size 1-2500 Amp
Individua
l
107 Read FCODE7 Factory code 0=No, 1=Yes 1
108 Read FCODE8 Factory code 0=No, 1=Yes 1
109 Read FCODE9 Factory code 0=No, 1=Yes 1
110 Read FCODE10 Factory code 0-25 14
111 Write Lim Time Time for dual current limit 0-120 Sec 0
112 Write Lim Lev Level for dual current limit 20-70 2,0-7,0 xle 40
113 Write Auto Dis Fieldbus autodisable 0=No, 1=Yes 0
*) For the purpose having one common data for the whole range softstarters “Setting Ie”,
“1st Set Ie”, “2ndSet Ie” and “3rd Set Ie” have the range 3000 Amp
