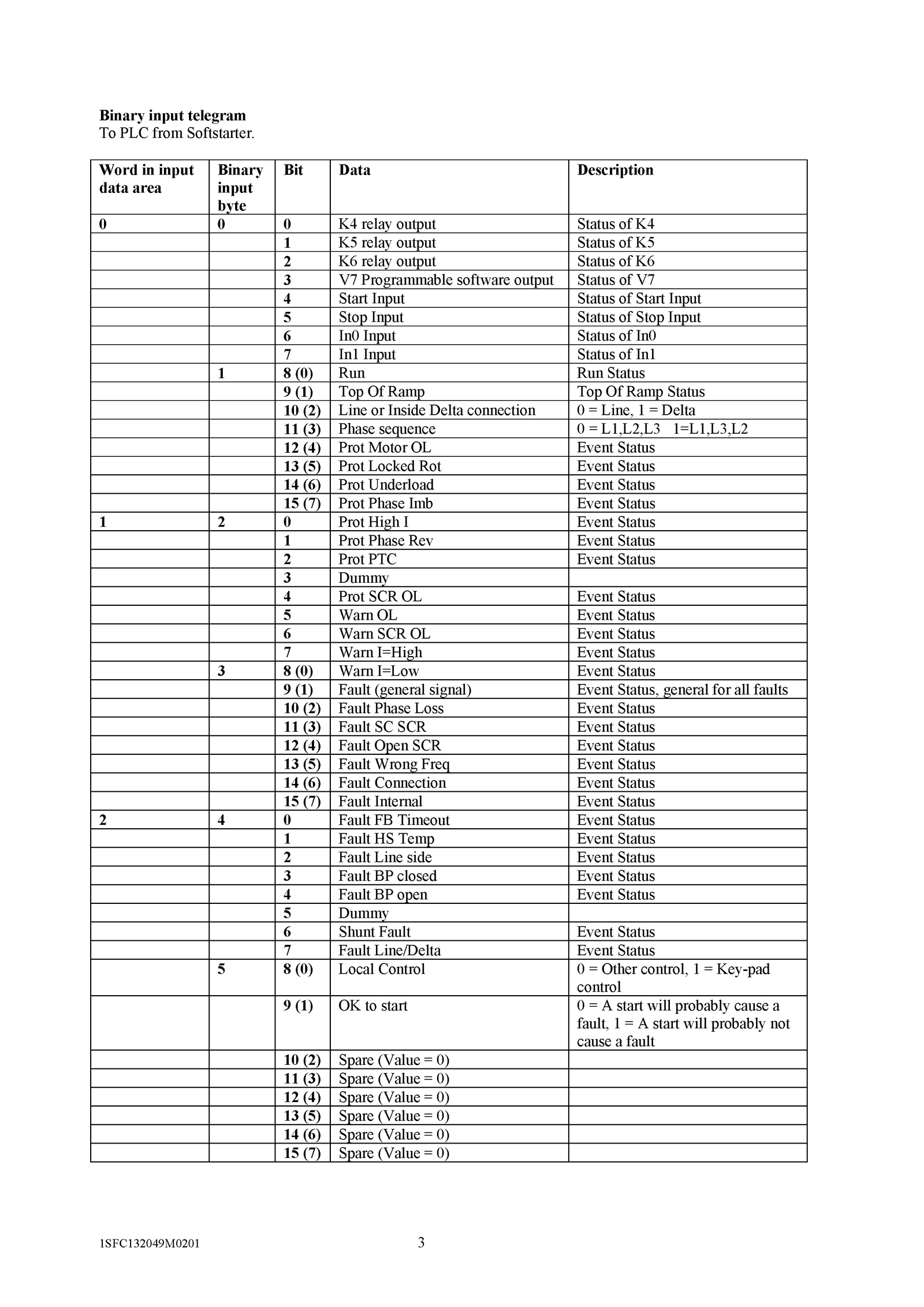

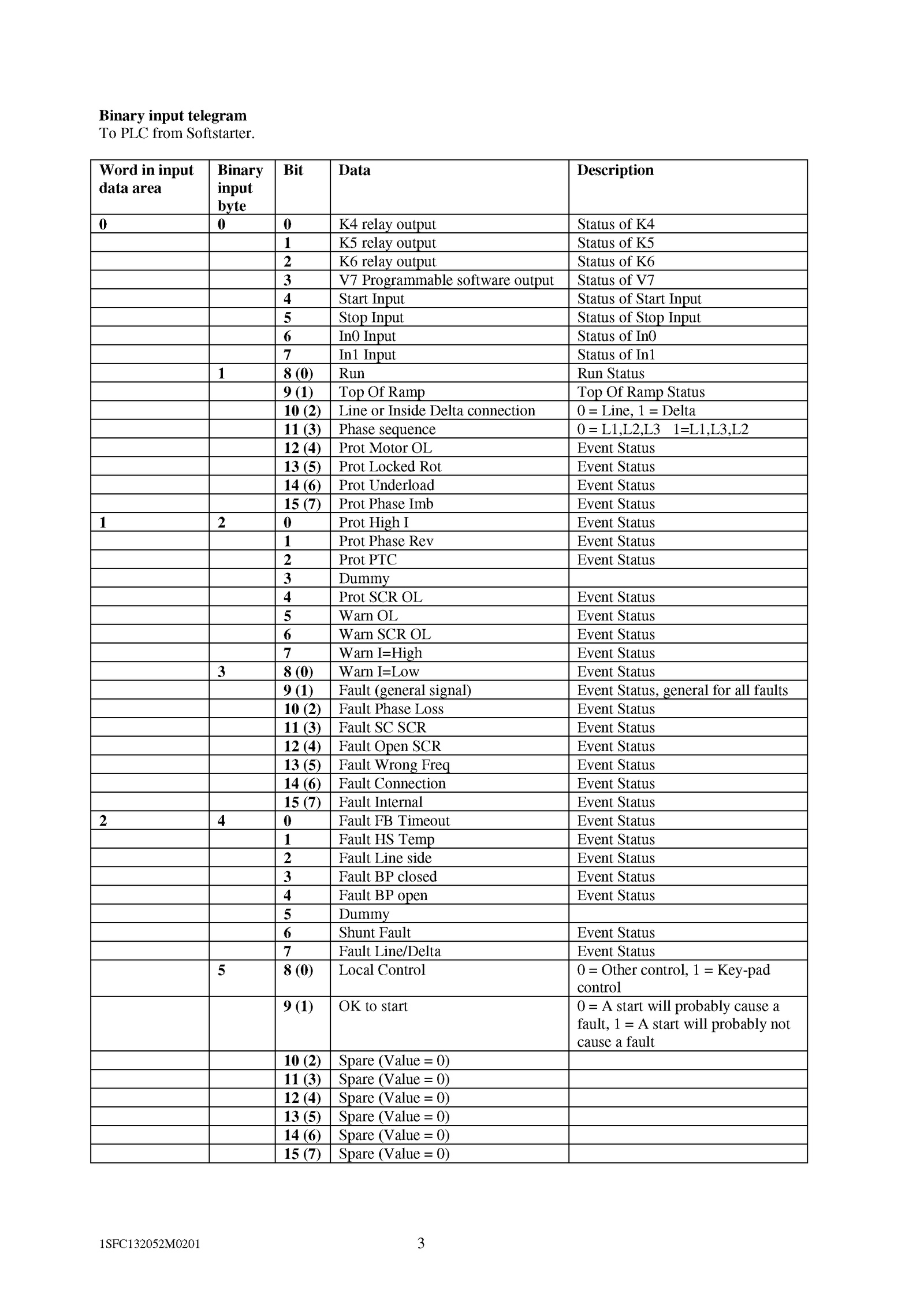

Binary input telegram
To PLC from Softstarter.
Word input
data area
Binary
input
byte
Bit Data Description
0 relay output Status K4
1 relay output Status K5
2 relay output Status K6
3 Programmable software output Status V7
4 Start Input Status Start Input
5 Stop Input Status Stop Input
6 In0 Input Status In0
7 In1 Input Status In1
1 (0) Run Run Status
9 (1) Top Ramp Top Ramp Status
10 (2) Line Inside Delta connection Line, Delta
11 (3) Phase sequence L1,L2,L3 1=L1,L3,L2
12 (4) Prot Motor Event Status
13 (5) Prot Locked Rot Event Status
14 (6) Prot Underload Event Status
15 (7) Prot Phase Imb Event Status
1 Prot High Event Status
1 Prot Phase Rev Event Status
2 Prot PTC Event Status
3 Dummy
4 Prot SCR Event Status
5 Warn Event Status
6 Warn SCR Event Status
7 Warn I=High Event Status
3 (0) Warn I=Low Event Status
9 (1) Fault (general signal) Event Status, general for all faults
10 (2) Fault Phase Loss Event Status
11 (3) Fault SCR Event Status
12 (4) Fault Open SCR Event Status
13 (5) Fault Wrong Freq Event Status
14 (6) Fault Connection Event Status
15 (7) Fault Internal Event Status
2 Fault Timeout Event Status
1 Fault Temp Event Status
2 Fault Line side Event Status
3 Fault closed Event Status
4 Fault open Event Status
5 Dummy
6 Shunt Fault Event Status
7 Fault Line/Delta Event Status
5 (0) Local Control Other control, Key-pad
control
9 (1) start start will probably cause a
fault, start will probably not
cause fault
10 (2) Spare (Value 0)
11 (3) Spare (Value 0)
12 (4) Spare (Value 0)
13 (5) Spare (Value 0)
14 (6) Spare (Value 0)
15 (7) Spare (Value 0)
