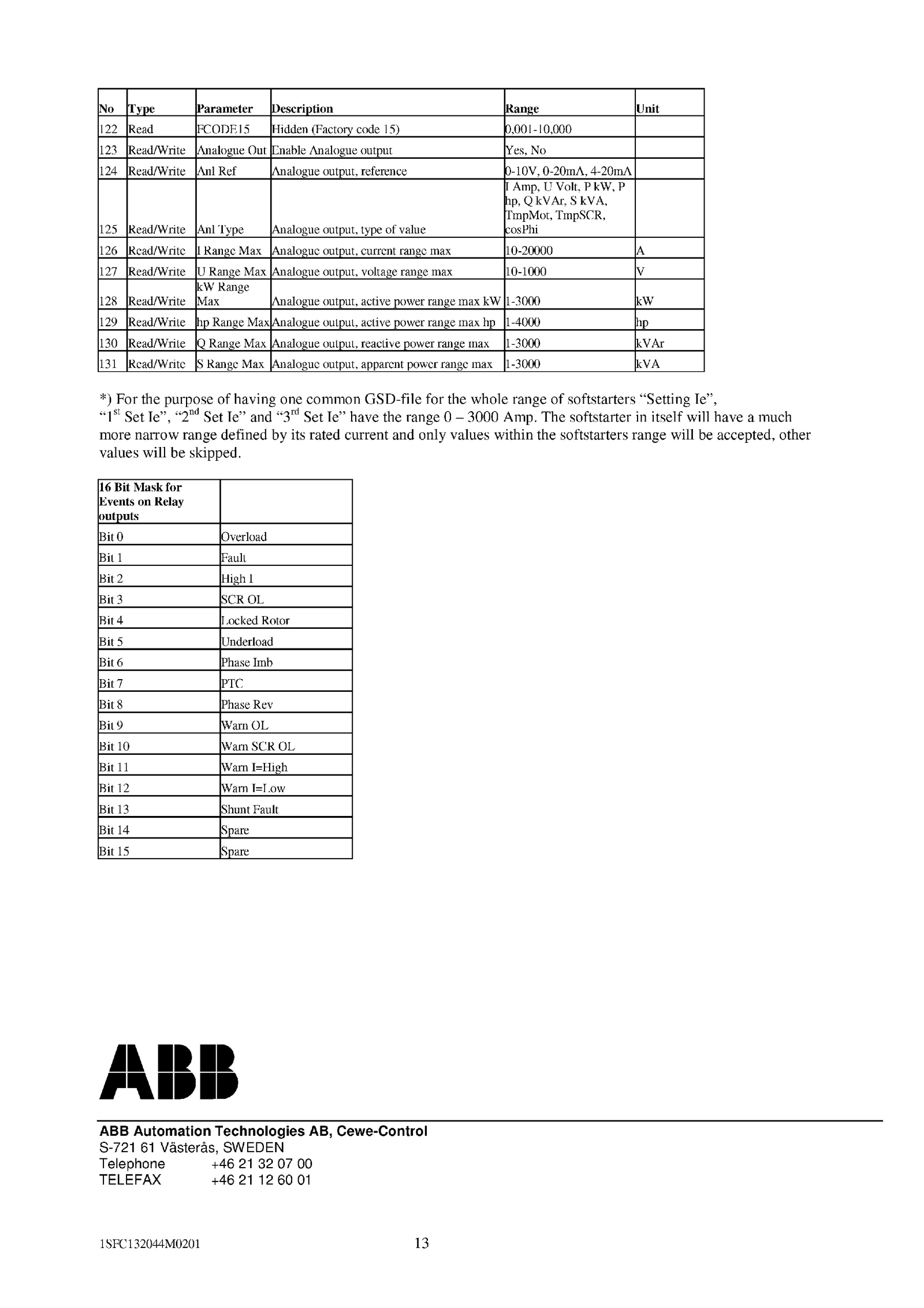

Type Parameter Description Range Unit
122 Read FCODE15 Hidden (Factory code 15) 0,001-10,000
123 Read/Write Analogue Out Enable Analogue output Yes, No
124 Read/Write Anl Ref Analogue output, reference 0-10V, 0-20mA, 4-20mA
125 Read/Write Anl Type Analogue output, type value
I Amp, Volt, kW, P
hp, kVAr, kVA,
TmpMot, TmpSCR,
cosPhi
126 Read/Write Range Max Analogue output, current range max 10-20000 A
127 Read/Write Range Max Analogue output, voltage range max 10-1000 V
128 Read/Write
kW Range
Max Analogue output, active power range max 1-3000 kW
129 Read/Write Range Max Analogue output, active power range max 1-4000 hp
130 Read/Write Range Max Analogue output, reactive power range max 1-3000 kVAr
131 Read/Write Range Max Analogue output, apparent power range max 1-3000 kVA
*) For the purpose having one common GSD-file for the whole range softstarters “Setting Ie”,
“1st Set Ie”, “2nd Set Ie” and “3rd Set Ie” have the range 3000 Amp.
16 Bit Mask for
Events Relay
outputs
Bit Overload
Bit Fault
Bit High I
Bit SCR OL
Bit Locked Rotor
Bit Underload
Bit Phase Imb
Bit PTC
Bit Phase Rev
Bit Warn OL
Bit Warn SCR OL
Bit Warn I=High
Bit Warn I=Low
Bit Shunt Fault
Bit Spare
Bit Spare
ABB Automation Technologies AB, Cewe-Control
S-721 Västeräs, SWEDEN
Telephone +46 00
TELEFAX +46 01
1SFC132044M0201 13
. The softstarter itself will have much
more narrow range defined its rated current and only values within the softstarters range will accepted, other
values will skipped
