Push-in CAGE CLAMP® enables solid conductors be
connected simply pushing them into the unit.
.
Carrier terminal blocks and female plugs are touch-proof.5 blade).com
Rail-Mount Terminal Blocks, TOPJOB® S
Rail-Mount Terminal Blocks with Pluggable Connector, X-COM®S-SYSTEM

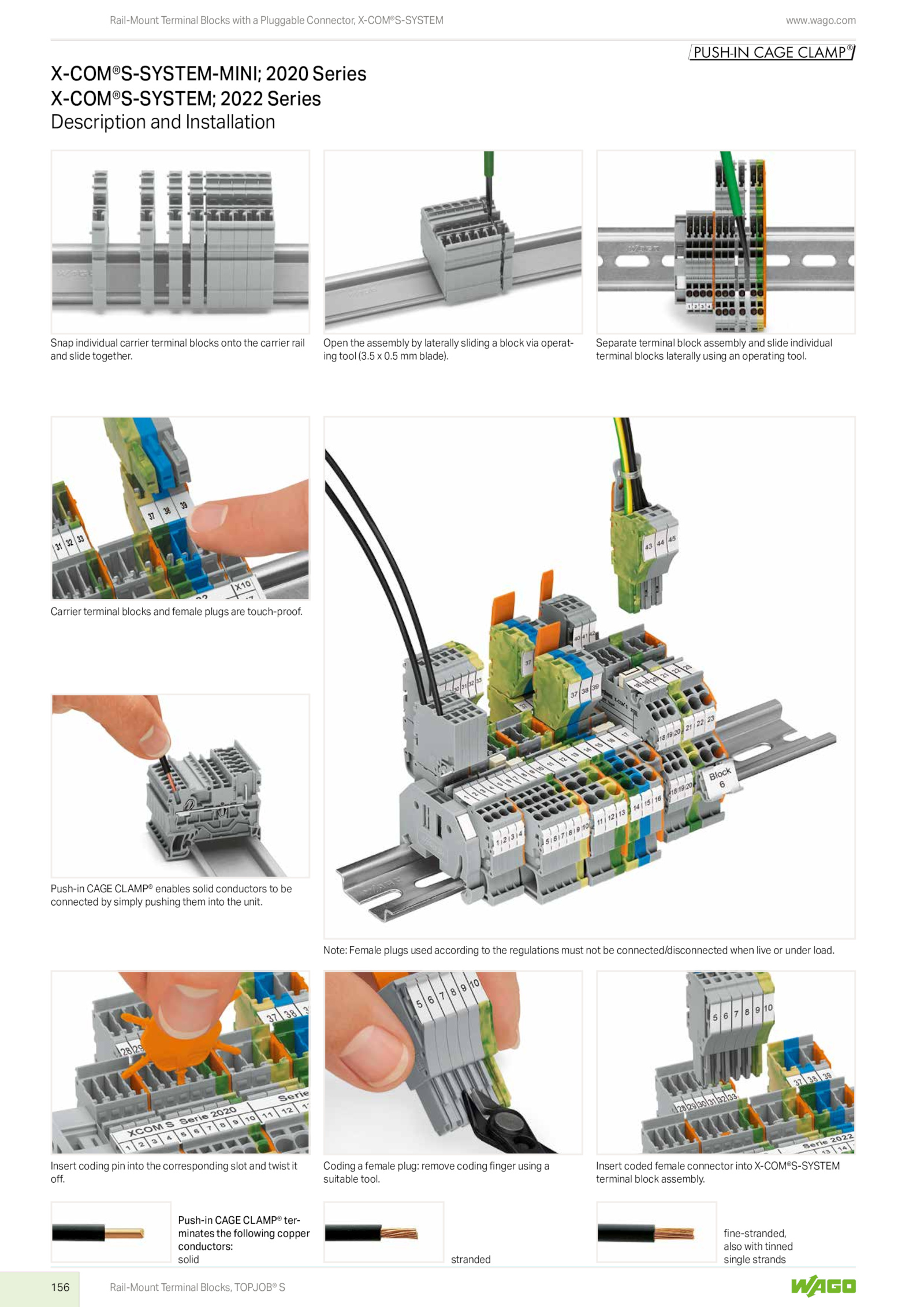

Description and Installation
X-COM®S-SYSTEM-MINI; 2020 Series
X-COM®S-SYSTEM; 2022 Series
Snap individual carrier terminal blocks onto the carrier rail
and slide together.
Separate terminal block assembly and slide individual
terminal blocks laterally using operating tool.5 0.
Open the assembly laterally sliding block via operat-
ing tool (3.
Insert coding pin into the corresponding slot and twist it
off.wago.
Note: Female plugs used according the regulations must not connected/disconnected when live under load.
Insert coded female connector into X-COM®S-SYSTEM
terminal block assembly.
Push-in CAGE CLAMP® ter-
minates the following copper
conductors:
solid stranded
fine-stranded,
also with tinned
single strands
Coding female plug: remove coding finger using a
suitable tool.156
