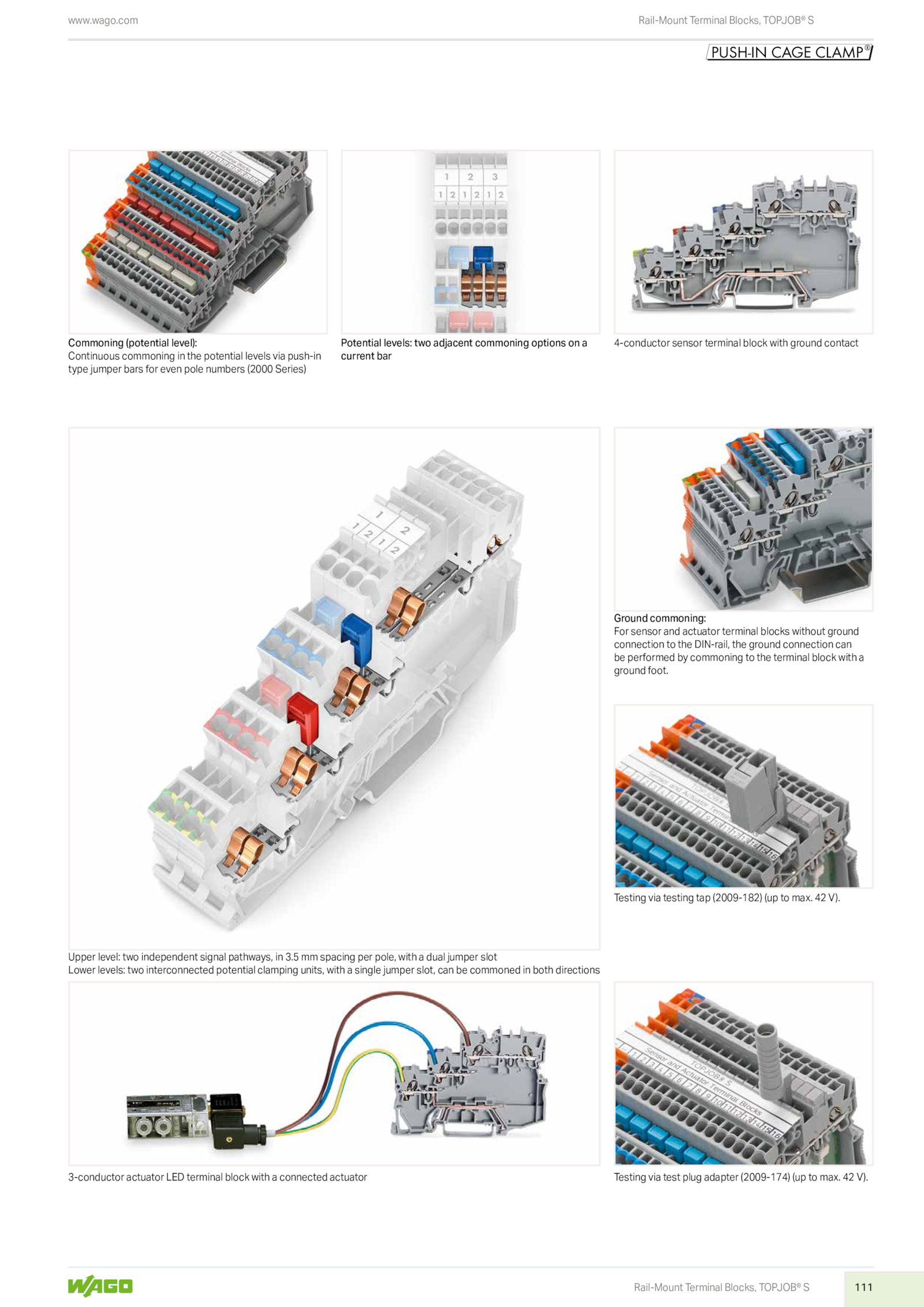

Testing via test plug adapter (2009-174) (up max. Testing via testing tap (2009-182) (up max. . V).com Rail-Mount Terminal Blocks, TOPJOB® S Rail-Mount Terminal Blocks, TOPJOB® S Upper level: two independent signal pathways, 3.111 www.wago. V).5 spacing per pole, with dual jumper slot Lower levels: two interconnected potential clamping units, with single jumper slot, can commoned both directions Commoning (potential level): Continuous commoning the potential levels via push-in type jumper bars for even pole numbers (2000 Series) Potential levels: two adjacent commoning options a current bar 4-conductor sensor terminal block with ground contact 3-conductor actuator LED terminal block with connected actuator Ground commoning: For sensor and actuator terminal blocks without ground connection the DIN-rail, the ground connection can be performed commoning the terminal block with a ground foot
