Terminal block assembly with 4-conductor sensor terminal blocks and 3-conductor actuator terminal blocks
Marking
3.
3-conductor sensor LED terminal block with connected sensor
Marking
marking strips (2009‑110) from the top the side.wago.com
Rail-Mount Terminal Blocks, TOPJOB® S
Rail-Mount Terminal Blocks, TOPJOB® S

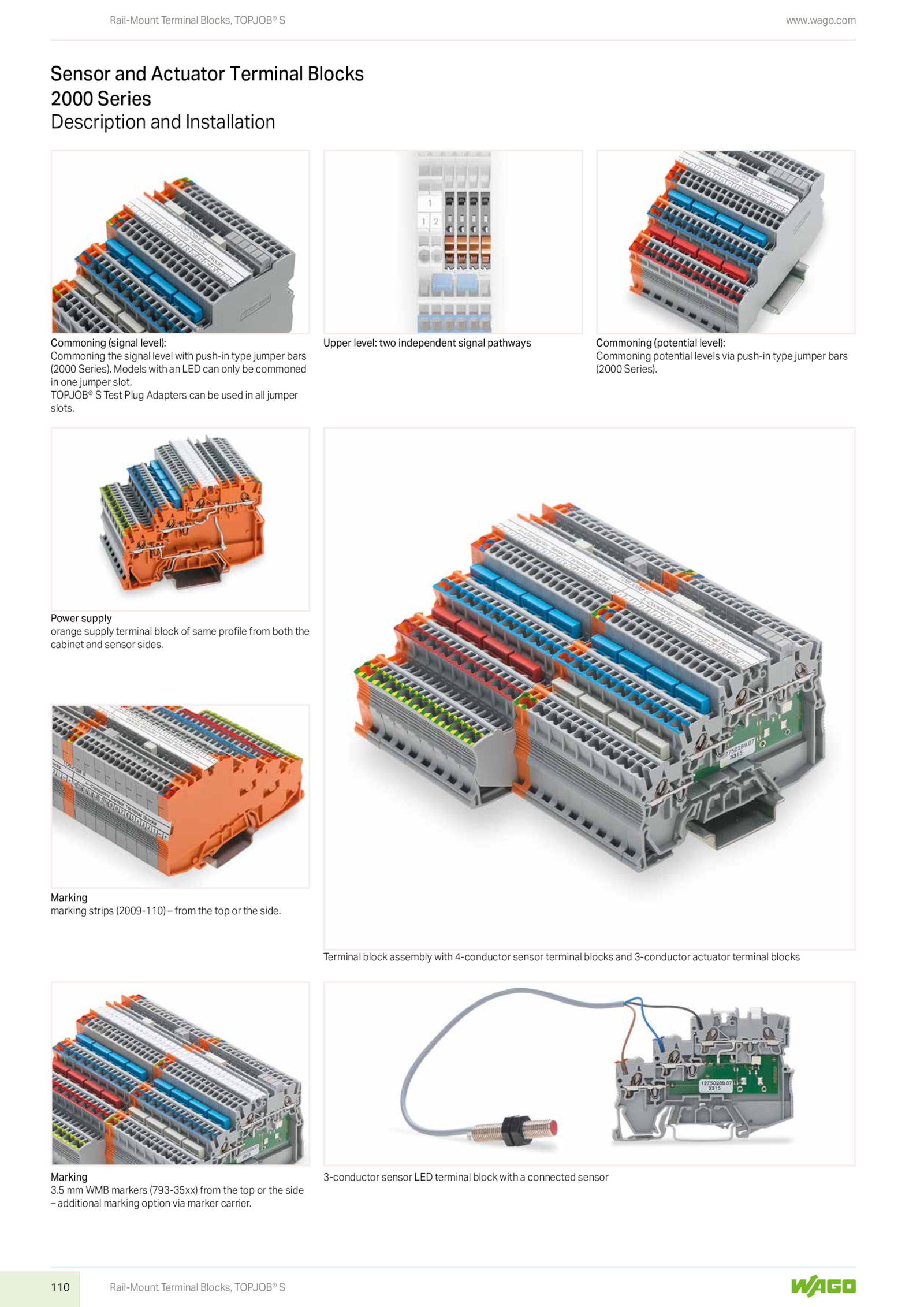

Description and Installation
Sensor and Actuator Terminal Blocks
2000 Series
Commoning (signal level):
Commoning the signal level with push-in type jumper bars
(2000 Series). Models with LED can only commoned
in one jumper slot.
TOPJOB® Test Plug Adapters can used all jumper
slots.
Power supply
orange supply terminal block same profile from both the
cabinet and sensor sides.
Upper level: two independent signal pathways Commoning (potential level):
Commoning potential levels via push-in type jumper bars
(2000 Series).5 WMB markers (793-35xx) from the top the side
– additional marking option via marker carrier
