TOPJOB S Rail-Mount Terminal Block Systems

| Kategorie: Katalog  | Tento dokument chci!

Vydal: WAGO Elektro spol. s r.o.

Strana 30 z 268







Poznámky redaktora

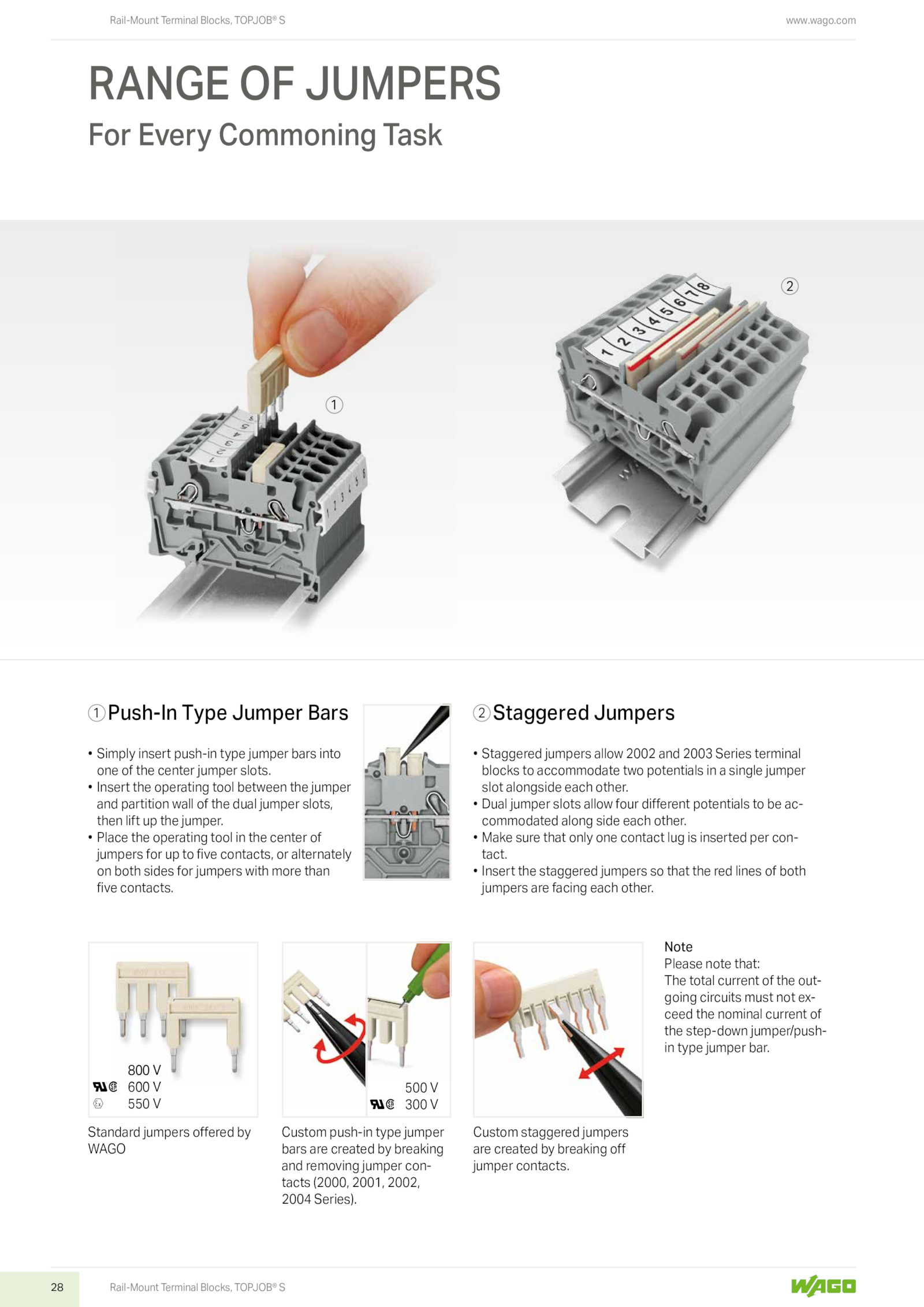

Custom staggered jumpers are created breaking off jumper contacts. • Staggered jumpers allow 2002 and 2003 Series terminal blocks accommodate two potentials single jumper slot alongside each other.wago. • Dual jumper slots allow four different potentials ac- commodated along side each other.com Rail-Mount Terminal Blocks, TOPJOB® S Rail-Mount Terminal Blocks, TOPJOB® S RANGE JUMPERS For Every Commoning Task Push-In Type Jumper Bars Staggered Jumpers • Simply insert push-in type jumper bars into one the center jumper slots. • Make sure that only one contact lug inserted per con- tact. Standard jumpers offered by WAGO Custom push-in type jumper bars are created breaking and removing jumper con- tacts (2000, 2001, 2002, 2004 Series). • Insert the operating tool between the jumper and partition wall the dual jumper slots, then lift the jumper. • Insert the staggered jumpers that the red lines both jumpers are facing each other. Note Please note that: The total current the out- going circuits must not ex- ceed the nominal current of the step-down jumper/push- in type jumper bar. • Place the operating tool the center of jumpers for five contacts, alternately on both sides for jumpers with more than five contacts. .28 500 V U2 300 V 800 V U2 600 V 4 550 V 2 2 1 1 www
