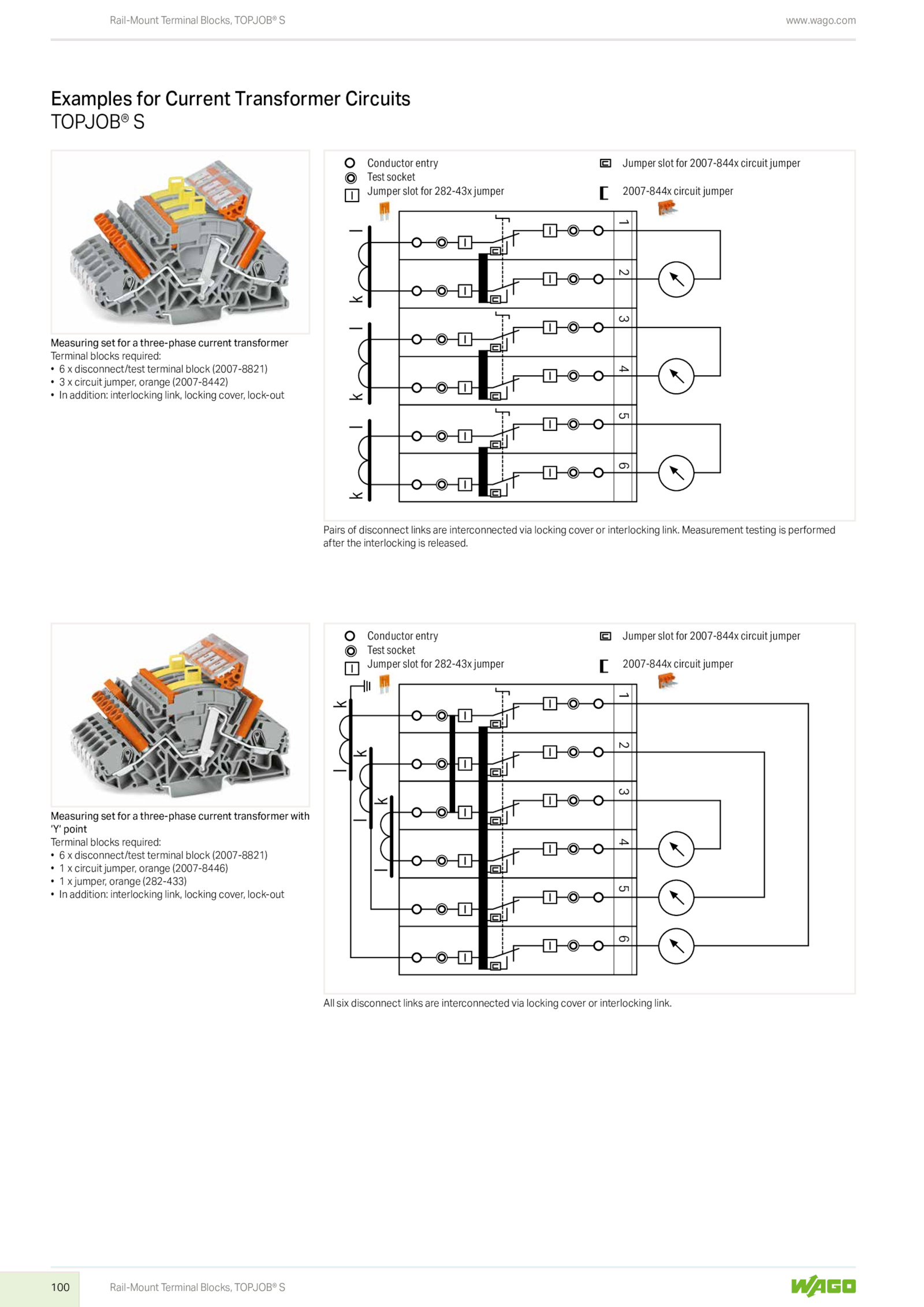

wago.com Rail-Mount Terminal Blocks, TOPJOB® S Rail-Mount Terminal Blocks, TOPJOB® S Measuring set for three-phase current transformer Terminal blocks required: • disconnect/test terminal block (2007‑8821) • circuit jumper, orange (2007-8442) • addition: interlocking link, locking cover, lock-out Pairs disconnect links are interconnected via locking cover interlocking link. TOPJOB® S Examples for Current Transformer Circuits . Measurement testing performed after the interlocking released. Measuring set for three-phase current transformer with ‘Y‘ point Terminal blocks required: • disconnect/test terminal block (2007‑8821) • circuit jumper, orange (2007-8446) • jumper, orange (282-433) • addition: interlocking link, locking cover, lock-out All six disconnect links are interconnected via locking cover interlocking link.100 1 2 3 4 5 6 k l k l k l Conductor entry Test socket Jumper slot for 282-43x jumper Jumper slot for 2007-844x circuit jumper 2007-844x circuit jumper 1 2 3 4 5 6 l k l k l k Conductor entry Test socket Jumper slot for 282-43x jumper Jumper slot for 2007-844x circuit jumper 2007-844x circuit jumper www
