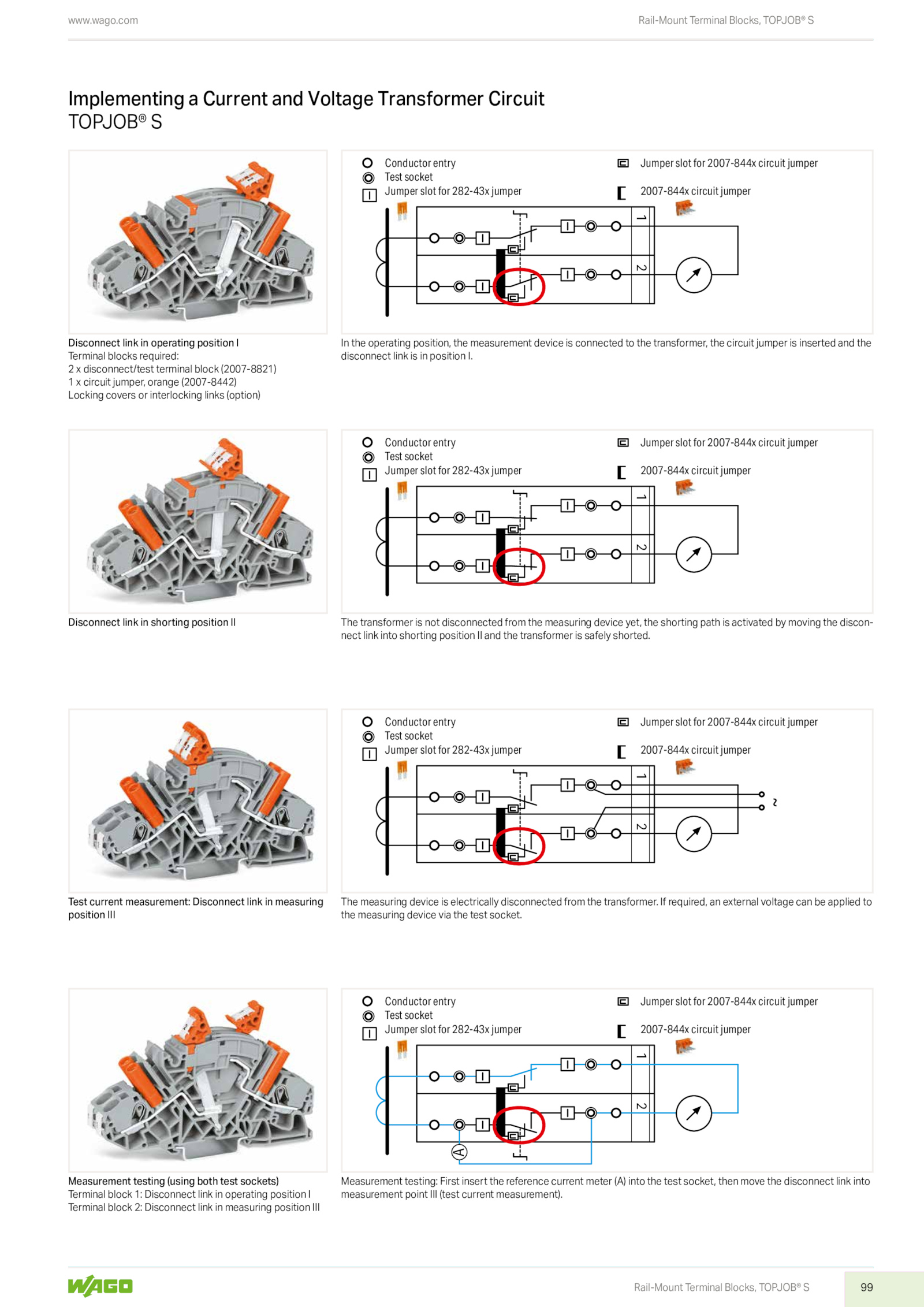

com Rail-Mount Terminal Blocks, TOPJOB® S Rail-Mount Terminal Blocks, TOPJOB® S Disconnect link operating position I Terminal blocks required: 2 disconnect/test terminal block (2007‑8821) 1 circuit jumper, orange (2007-8442) Locking covers interlocking links (option) In the operating position, the measurement device connected the transformer, the circuit jumper inserted and the disconnect link position I. TOPJOB® S Implementing Current and Voltage Transformer Circuit . required, external voltage can applied to the measuring device via the test socket. The transformer not disconnected from the measuring device yet, the shorting path activated moving the discon- nect link into shorting position and the transformer safely shorted. Measurement testing (using both test sockets) Terminal block Disconnect link operating position I Terminal block Disconnect link measuring position III Measurement testing: First insert the reference current meter (A) into the test socket, then move the disconnect link into measurement point III (test current measurement).99 1 2 Conductor entry Test socket Jumper slot for 282-43x jumper Jumper slot for 2007-844x circuit jumper 2007-844x circuit jumper 1 2 ~ Conductor entry Test socket Jumper slot for 282-43x jumper Jumper slot for 2007-844x circuit jumper 2007-844x circuit jumper 1 2 Conductor entry Test socket Jumper slot for 282-43x jumper Jumper slot for 2007-844x circuit jumper 2007-844x circuit jumper 1 2 A Conductor entry Test socket Jumper slot for 282-43x jumper Jumper slot for 2007-844x circuit jumper 2007-844x circuit jumper www.wago. Disconnect link shorting position II Test current measurement: Disconnect link measuring position III The measuring device electrically disconnected from the transformer
