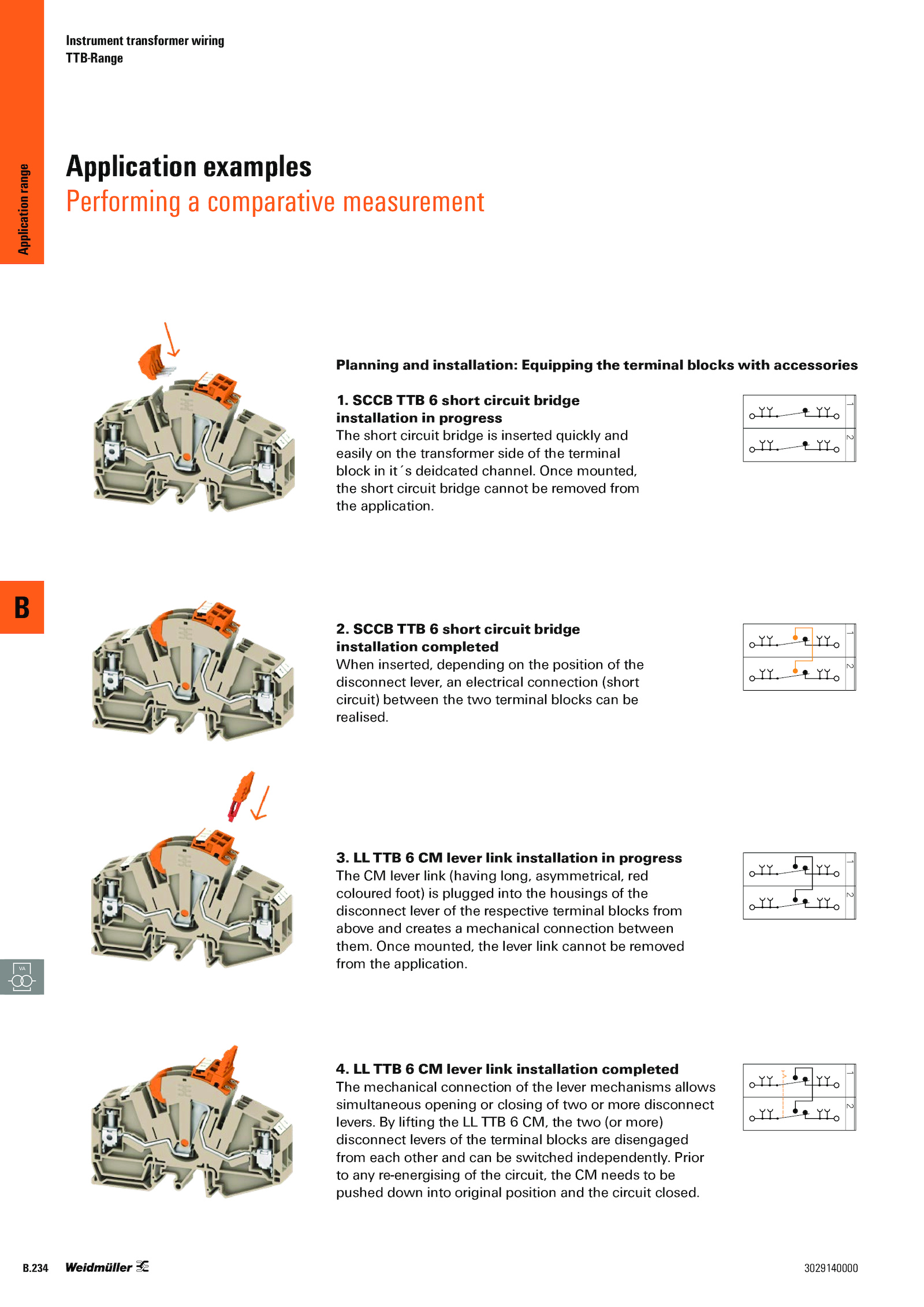

3.Application examples Performing comparative measurement Planning and installation: Equipping the terminal blocks with accessories 1. 4. TTB lever link installation progress The lever link (having long, asymmetrical, red coloured foot) plugged into the housings the disconnect lever the respective terminal blocks from above and creates mechanical connection between them.234 3029140000 Application range B 9$ Instrument transformer wiring TTB-Range . TTB lever link installation completed The mechanical connection the lever mechanisms allows simultaneous opening closing two more disconnect levers. SCCB TTB short circuit bridge installation progress The short circuit bridge inserted quickly and easily the transformer side the terminal block it´s deidcated channel. Once mounted, the short circuit bridge cannot removed from the application. SCCB TTB short circuit bridge installation completed When inserted, depending the position the disconnect lever, electrical connection (short circuit) between the two terminal blocks can be realised. Prior to any re-energising the circuit, the needs be pushed down into original position and the circuit closed. v B. Once mounted, the lever link cannot removed from the application. 2. lifting the TTB CM, the two (or more) disconnect levers the terminal blocks are disengaged from each other and can switched independently
