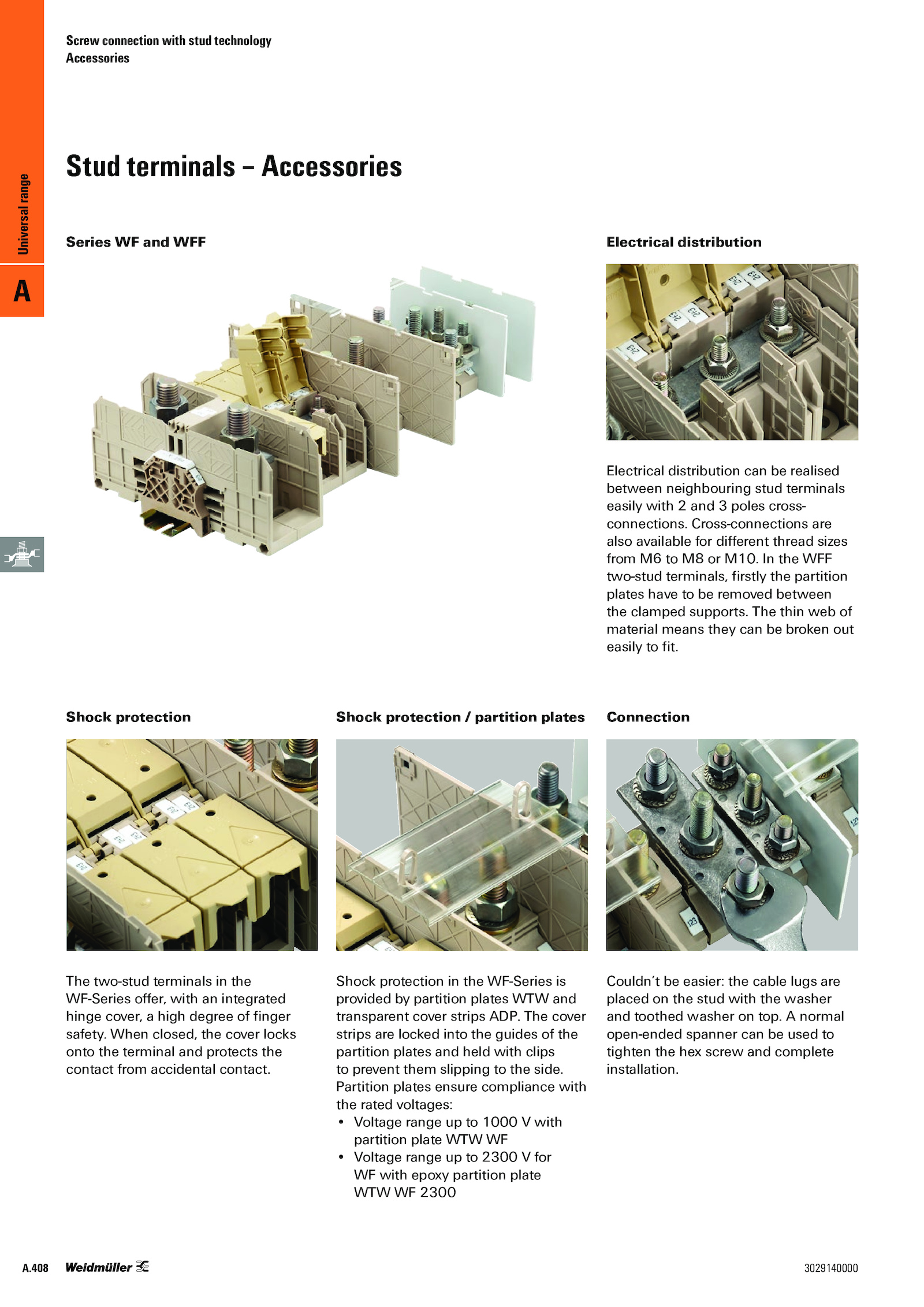

Screw connection with stud technology Accessories Electrical distribution can realised between neighbouring stud terminals easily with and poles cross- connections. Cross-connections are also available for different thread sizes from M10. normal open-ended spanner can used to tighten the hex screw and complete installation. The cover strips are locked into the guides the partition plates and held with clips to prevent them slipping the side. When closed, the cover locks onto the terminal and protects the contact from accidental contact.408 3029140000 . Stud terminals Accessories Electrical distribution A Universal range A. The thin web of material means they can broken out easily fit. Series and WFF Connection Couldn’t easier: the cable lugs are placed the stud with the washer and toothed washer top. the WFF two-stud terminals, firstly the partition plates have removed between the clamped supports. Partition plates ensure compliance with the rated voltages: • Voltage range 1000 with partition plate WTW WF • Voltage range 2300 for WF with epoxy partition plate WTW 2300 Shock protection The two-stud terminals the WF-Series offer, with integrated hinge cover, high degree finger safety. Shock protection partition plates Shock protection the WF-Series is provided partition plates WTW and transparent cover strips ADP
