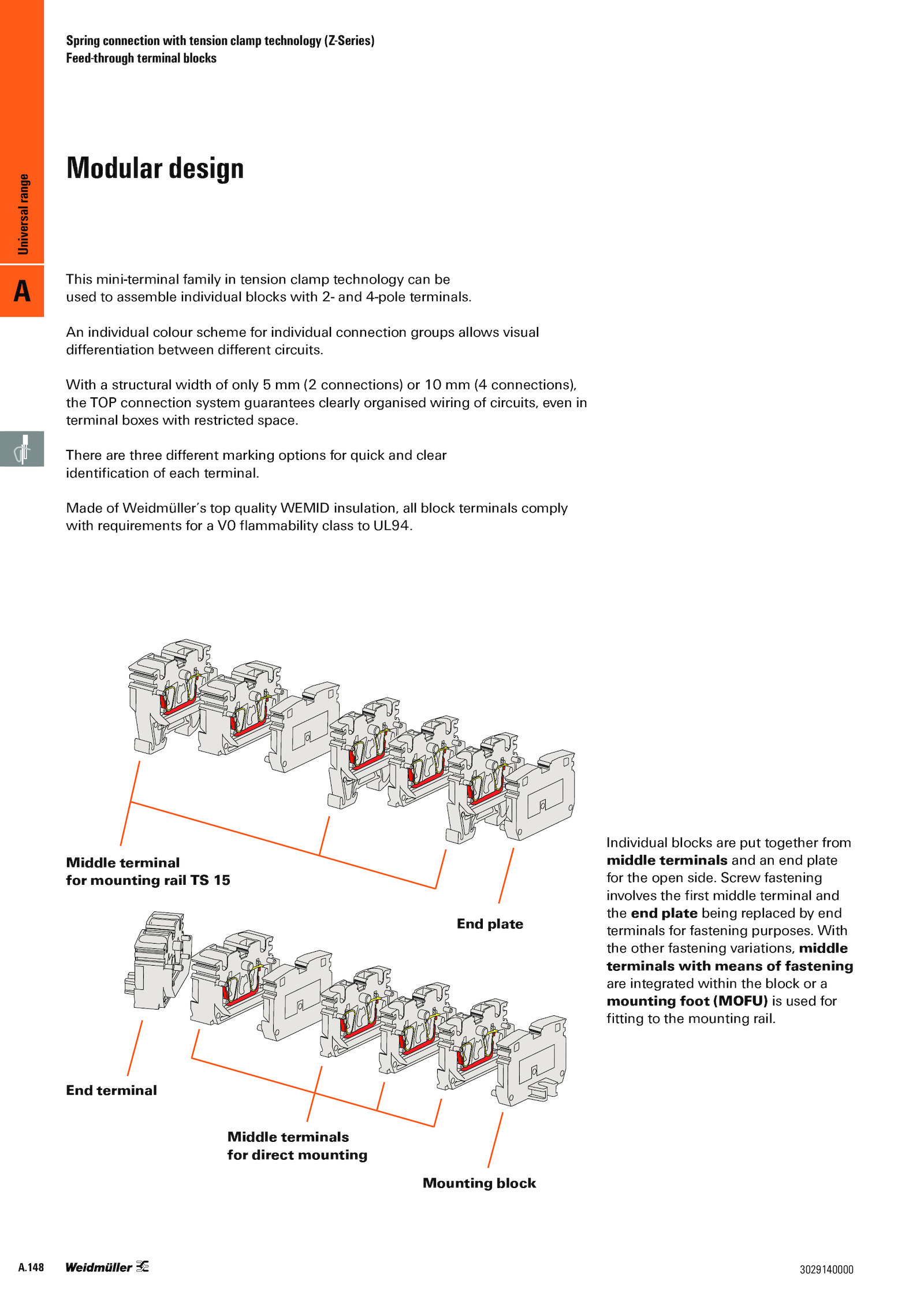

With structural width only connections) connections), the TOP connection system guarantees clearly organised wiring circuits, even in terminal boxes with restricted space. There are three different marking options for quick and clear identification each terminal. .A A. An individual colour scheme for individual connection groups allows visual differentiation between different circuits. With the other fastening variations, middle terminals with means fastening are integrated within the block a mounting foot (MOFU) used for fitting the mounting rail. Screw fastening involves the first middle terminal and the end plate being replaced end terminals for fastening purposes.148 3029140000 Universal range Spring connection with tension clamp technology (Z-Series) Feed-through terminal blocks This mini-terminal family tension clamp technology can be used assemble individual blocks with and 4-pole terminals. Made Weidmüller’s top quality WEMID insulation, all block terminals comply with requirements for flammability class UL94. Middle terminals for direct mounting Mounting block End terminal Middle terminal for mounting rail 15 End plate Modular design Individual blocks are put together from middle terminals and end plate for the open side
