When comfort extension active, the set-point temperature the handwheel the electrical panel

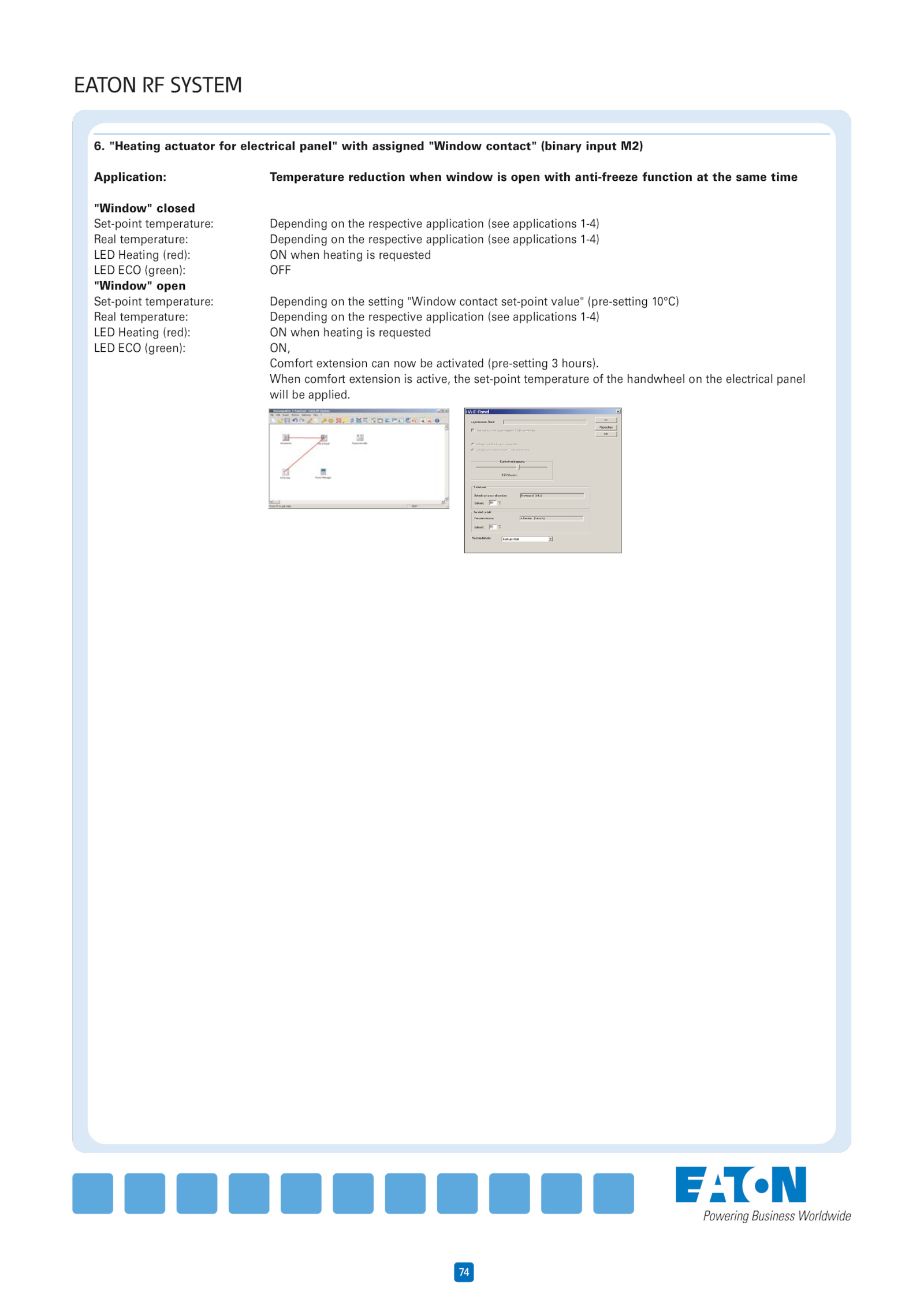

will applied. "Heating actuator for electrical panel" with assigned "Window contact" (binary input M2)
Application: Temperature reduction when window open with anti-freeze function the same time
"Window" closed
Set-point temperature: Depending the respective application (see applications 1-4)
Real temperature: Depending the respective application (see applications 1-4)
LED Heating (red): when heating requested
LED ECO (green): OFF
"Window" open
Set-point temperature: Depending the setting "Window contact set-point value" (pre-setting 10°C)
Real temperature: Depending the respective application (see applications 1-4)
LED Heating (red): when heating requested
LED ECO (green): ON,
Comfort extension can now activated (pre-setting hours).
