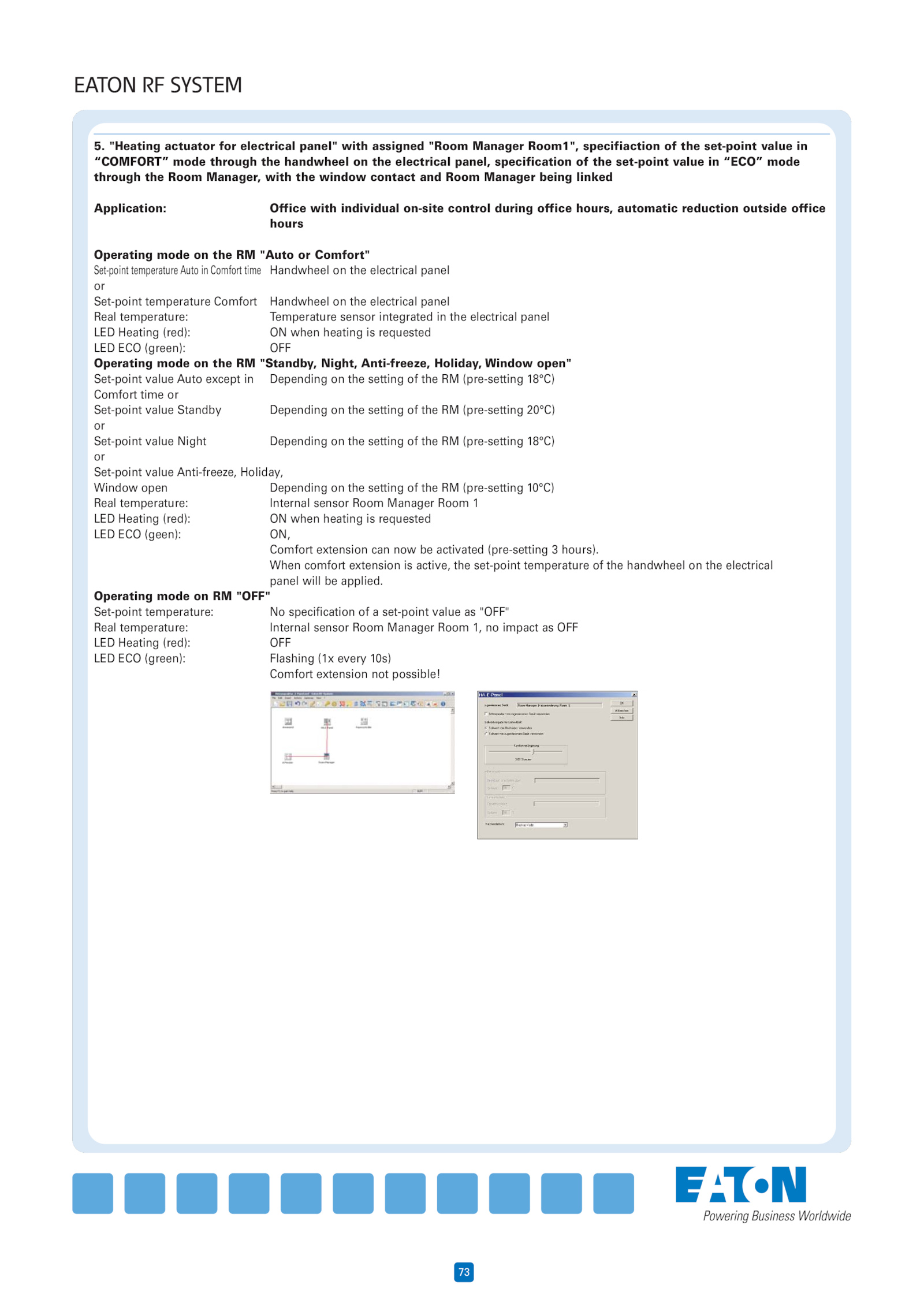

"Heating actuator for electrical panel" with assigned "Room Manager Room1", specifiaction the set-point value in
“COMFORT” mode through the handwheel the electrical panel, specification the set-point value “ECO” mode
through the Room Manager, with the window contact and Room Manager being linked
Application: Office with individual on-site control during office hours, automatic reduction outside office
hours
Operating mode the "Auto Comfort"
Set-point temperature Auto Comfort time Handwheel the electrical panel
or
Set-point temperature Comfort Handwheel the electrical panel
Real temperature: Temperature sensor integrated the electrical panel
LED Heating (red): when heating requested
LED ECO (green): OFF
Operating mode the "Standby, Night, Anti-freeze, Holiday, Window open"
Set-point value Auto except Depending the setting the (pre-setting 18°C)
Comfort time or
Set-point value Standby Depending the setting the (pre-setting 20°C)
or
Set-point value Night Depending the setting the (pre-setting 18°C)
or
Set-point value Anti-freeze, Holiday,
Window open Depending the setting the (pre-setting 10°C)
Real temperature: Internal sensor Room Manager Room 1
LED Heating (red): when heating requested
LED ECO (geen): ON,
Comfort extension can now activated (pre-setting hours).
Operating mode "OFF"
Set-point temperature: specification set-point value "OFF"
Real temperature: Internal sensor Room Manager Room impact OFF
LED Heating (red): OFF
LED ECO (green): Flashing (1x every 10s)
Comfort extension not possible!
.
When comfort extension active, the set-point temperature the handwheel the electrical
panel will applied.EATON SYSTEM
