Crimp geometry
Tested and certified mechanical Miniforce hand tools for symmetrical crimping
of pre-insulated terminals 0.17
01

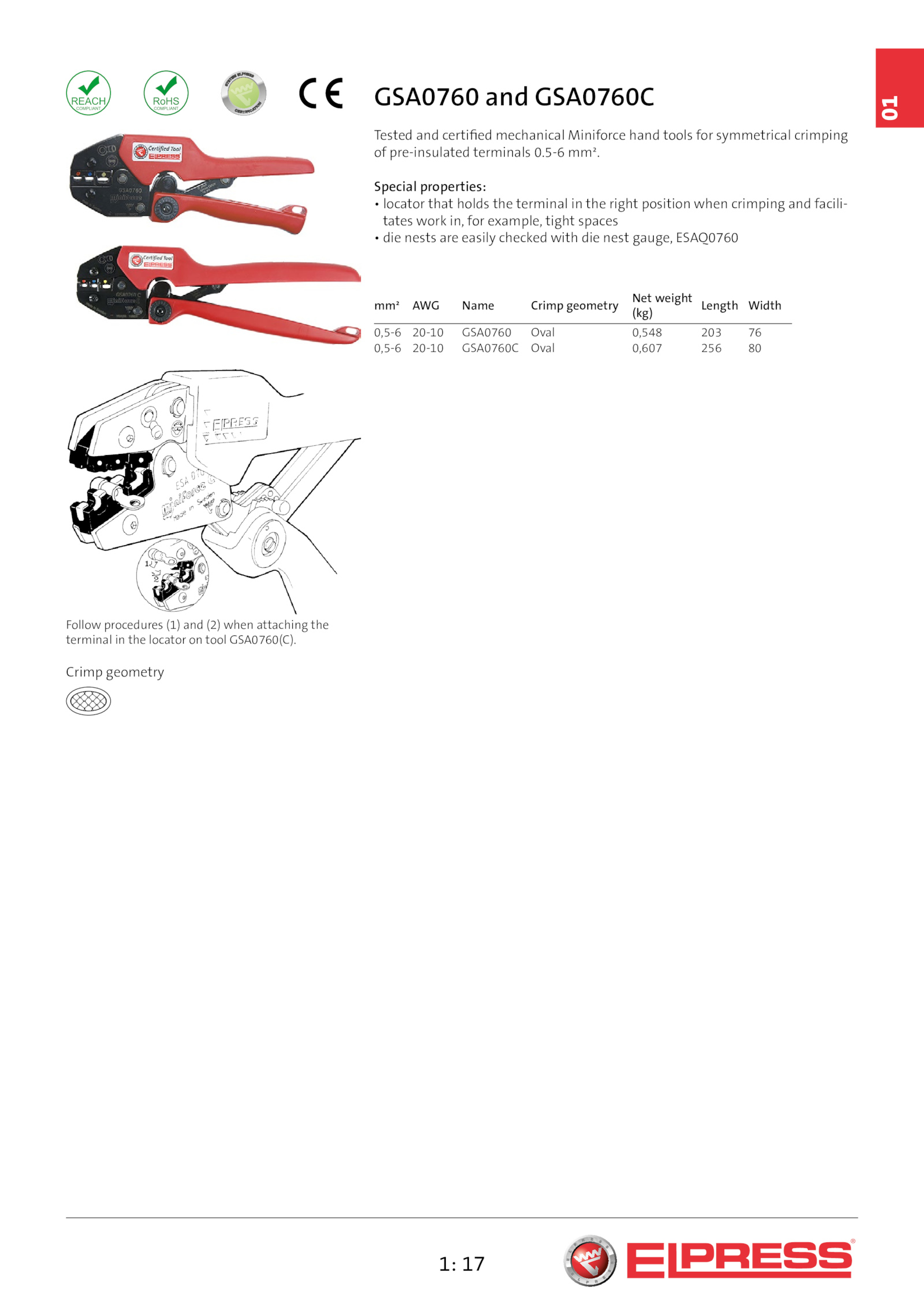

GSA0760 and GSA0760C
Follow procedures (1) and (2) when attaching the
terminal the locator tool GSA0760(C).5-6 mm².
Special properties:
• locator that holds the terminal the right position when crimping and facili-
tates work in, for example, tight spaces
• die nests are easily checked with die nest gauge, ESAQ0760
mm² AWG Name Crimp geometry
Net weight
(kg)
Length Width
0,5-6 20-10 GSA0760 Oval 0,548 203 76
0,5-6 20-10 GSA0760C Oval 0,607 256 80
