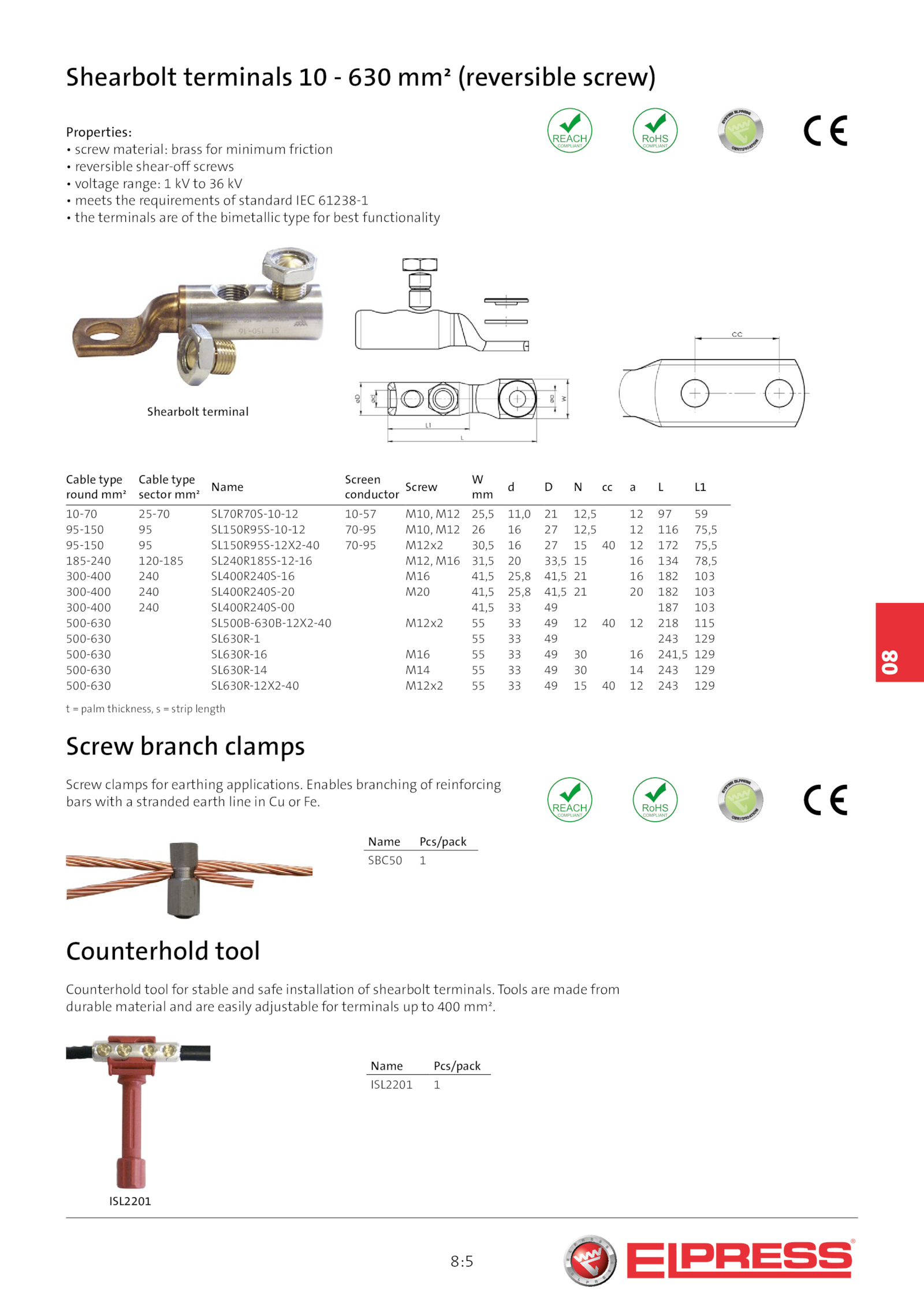

Shearbolt terminals 630 mm² (reversible screw)
Properties:
• screw material: brass for minimum friction
• reversible shear-off screws
• voltage range: kV
• meets the requirements standard IEC 61238-1
• the terminals are the bimetallic type for best functionality
Shearbolt terminal
Cable type
round mm²
Cable type
sector mm²
Name
Screen
conductor
Screw
W
mm
d L1
10-70 25-70 SL70R70S-10-12 10-57 M10, M12 25,5 11,0 12,5 59
95-150 SL150R95S-10-12 70-95 M10, M12 12,5 116 75,5
95-150 SL150R95S-12X2-40 70-95 M12x2 30,5 172 75,5
185-240 120-185 SL240R185S-12-16 M12, M16 31,5 33,5 134 78,5
300-400 240 SL400R240S-16 M16 41,5 25,8 41,5 182 103
300-400 240 SL400R240S-20 M20 41,5 25,8 41,5 182 103
300-400 240 SL400R240S-00 41,5 187 103
500-630 SL500B-630B-12X2-40 M12x2 218 115
500-630 SL630R-1 243 129
500-630 SL630R-16 M16 241,5 129
500-630 SL630R-14 M14 243 129
500-630 SL630R-12X2-40 M12x2 243 129
t palm thickness, strip length
Screw branch clamps
Screw clamps for earthing applications. Enables branching reinforcing
bars with stranded earth line Fe.
Name Pcs/pack
SBC50 1
Counterhold tool
Counterhold tool for stable and safe installation shearbolt terminals.
ISL2201
Name Pcs/pack
ISL2201. Tools are made from
durable material and are easily adjustable for terminals 400 mm²
