Properties:
• opening for easy die changes and for quick removal after jointing
• crimp force approx. kN
• advanced force ratio for lowest handle force
• easy work with confined spaces
• only four die pairs are required crimp 10-95 mm² Cu
• quick feed function
• delivered metal box
mm²
(Cu)
mm²
(Solid Al)
Name Crimp geometries
Net weight
(kg)
Length
mm
Width Height
10-95 T2600 Punch, Hexagonal, Oval 1,9 445 185 52
10-120 T2600B Punch, Hexagonal, Oval 4,12 445 185 52
10-120 T2600C Punch, Hexagonal, Oval 4,12 445 185 52
.
Properties:
• protects against dirt and dust through the closed chassis
• ergonomic design ensures optimum balance the user’s hand
• swivel opening crimp fork
• crimp force control using pressure monitoring
• one handed operation for easy work
• LED lighting for easier work
• fast-forward feeding for more efficient crimping
• display with information about the tool and service intervals
• tested together with Elpress dies and KB22/KB25
• crimp monitoring via display when the correct pressure/complete crimping not
achieved (warning light LED and signal)
mm²
(Cu)
mm²
(Stranded
Al)
mm²
(Solid
Al)
Name
Crimp
geometries
Net
weight
(kg)
Length
mm
Width Height Note
10-150 16-25 16-35 PVX611 Punch, Oval,
Hexagonal
5,50 414 116 Charger: 230VAC
10-150 16-25 16-35 PVX611DB Punch, Oval,
Hexagonal
5,85 414 116 Delivered with 2
batteries
10-150 16-25 16-35 PVX611-US Punch, Oval,
Hexagonal
5,50 414 116 Charger: 115VAC
10-150 16-25 16-35 PVX611-WOBC Punch, Oval,
Hexagonal
3,90 414 116 Without Battery/
Charger
T2600
Crimp geometries
Mechanical hand-held tool for crimping Cu-terminals, type KR/KS mm², KRF/KSF
16-95 mm², KRD/KSD 16-120 mm², KRT/KST 10-120 mm², Al-terminals 16-25 mm²
(-35 solid), and C-sleeves 6/6-50/50 mm², DIN 46235 10-95 mm².5
07

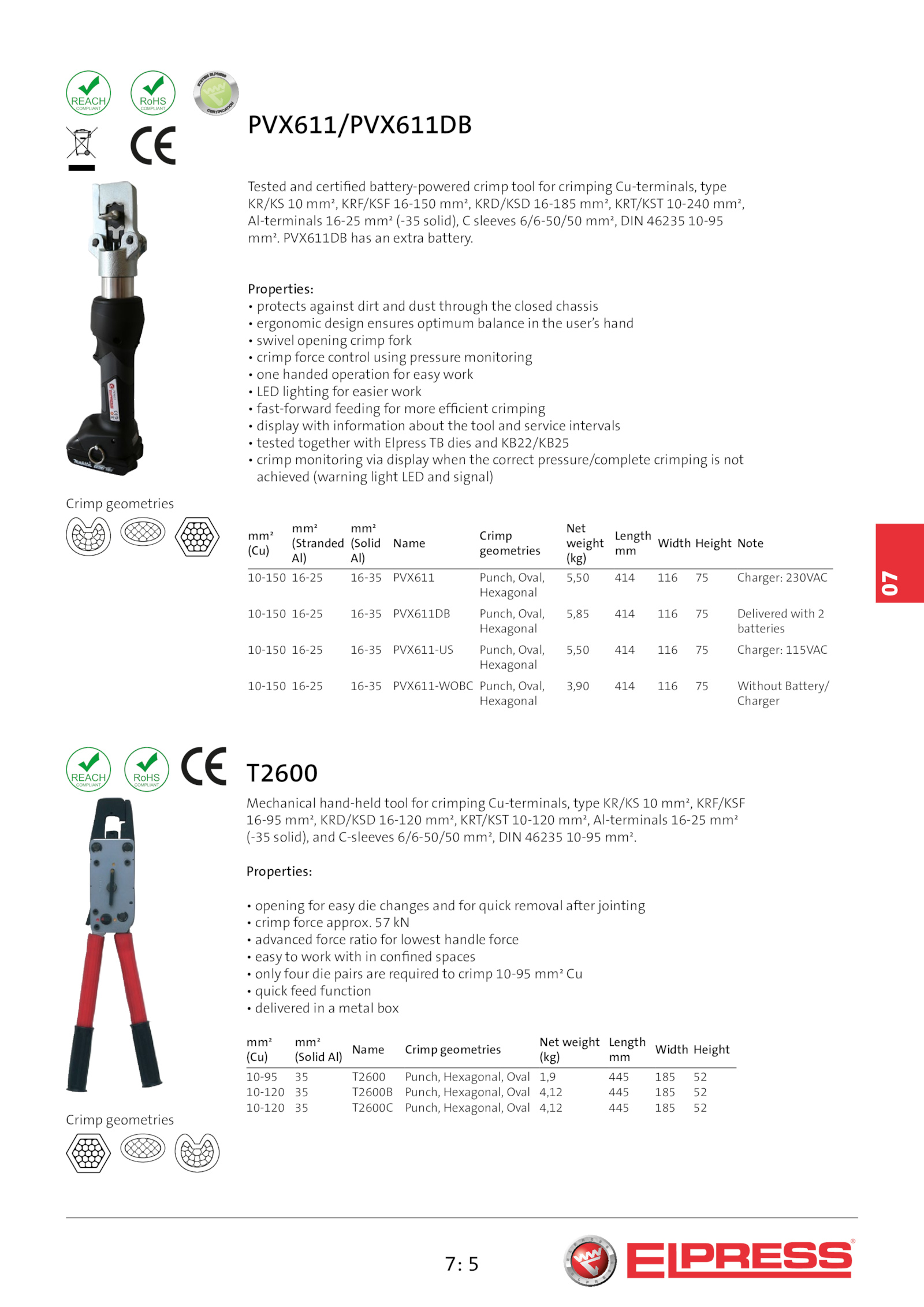

PVX611/PVX611DB
Crimp geometries
Tested and certified battery-powered crimp tool for crimping Cu-terminals, type
KR/KS mm², KRF/KSF 16-150 mm², KRD/KSD 16-185 mm², KRT/KST 10-240 mm²,
Al-terminals 16-25 mm² (-35 solid), sleeves 6/6-50/50 mm², DIN 46235 10-95
mm². PVX611DB has extra battery
