For branching with C-sleeve, oval crimping. Crimp sequence for two crimps.
For Cu-terminals, hexagonal crimping.
Only one crimp required for branches with C-sleeve.
Flexible conductors KRF/KSF and stranded conductors KRD/KSD/KRT/KST.
Through
conductor mm²
Branching
mm²
mm² Name
Number of
crimps
Net weight
(kg)
Die holder
required
25-300 25-300 Total: 245-425 B40C18 4,000 No
150-300 150-300 Total: 450-540 B40C21 4,083 No
.
mm² Name
Number of
crimps
Net weight
(kg)
Die holder
required
Note
500 B4040 4,011 For stranded Cu-conductors: KRD/KSD, KRT/KST 500 mm²
500 B4042 4,067 For multi strand Cu-conductors: KRF/KSF 500 mm²
630 B4045 3,959 For stranded Cu-conductors: KRD/KSD, KRT/KST 630 mm²
630-800 B4053 3,901 For multi strand Cu-conductors: KRF/KSF (and stranded conductors
800 mm²: KRD/KSD/KRT/KST)
1000 B4056 3,670 For stranded Cu-conductors: KRD/KSD, KRT/KST
Crimp dies for C-sleeves
Supplied pairs. When crimping Cu-terminals,
two crimps are always required.6:52

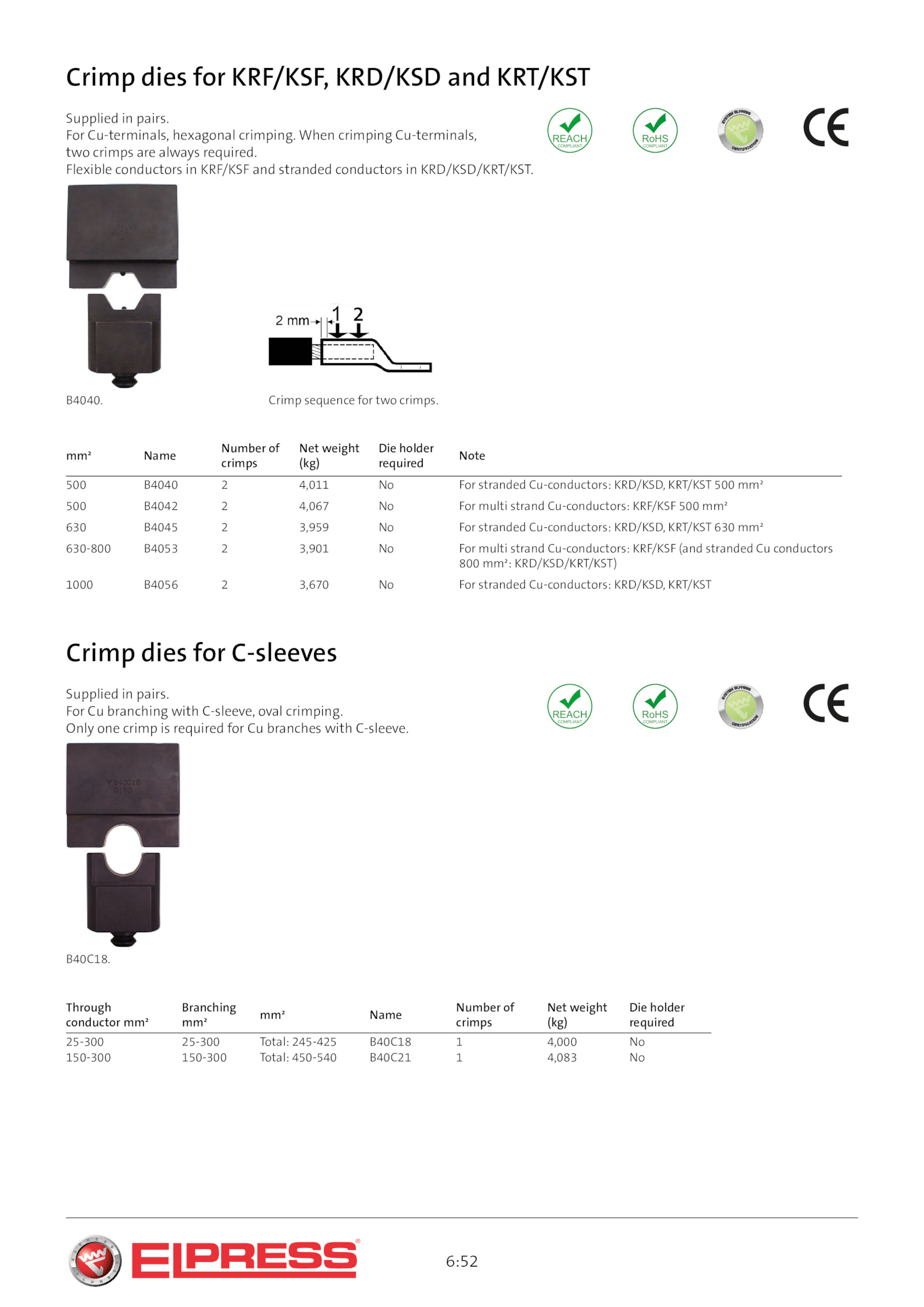

Crimp dies for KRF/KSF, KRD/KSD and KRT/KST
Supplied pairs.
B40C18.
B4040
